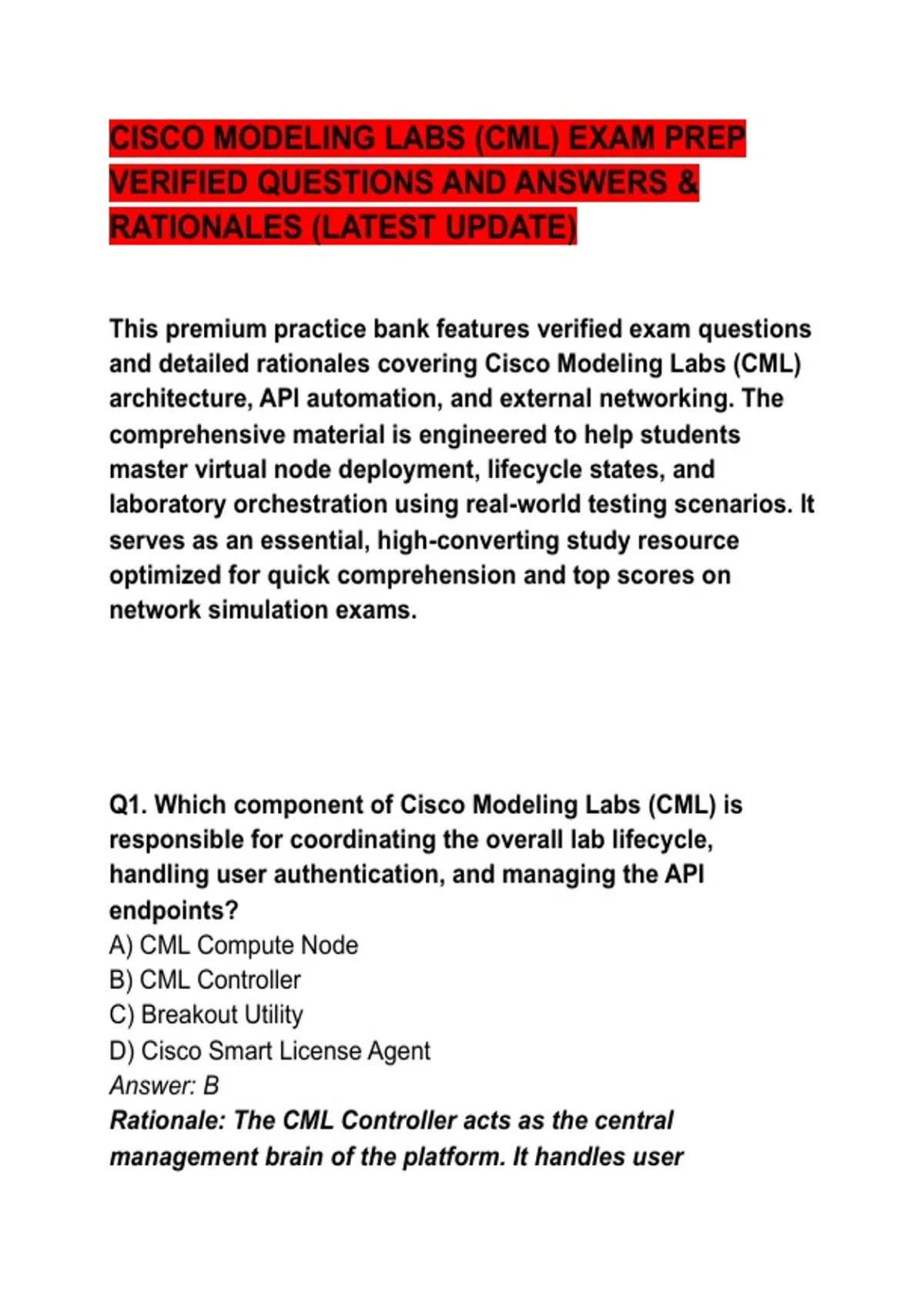

CISCO MODELING LABS (CML) EXAM PREP
VERIFIED QUESTIONS AND ANSWERS &
RATIONALES (LATEST UPDATE)
This premium practice bank features verified exam questions
and detailed rationales covering Cisco Modeling Labs (CML)
architecture, API automation, and external networking. The
comprehensive material is engineered to help students
master virtual node deployment, lifecycle states, and
laboratory orchestration using real-world testing scenarios. It
serves as an essential, high-converting study resource
optimized for quick comprehension and top scores on
network simulation exams.
Q1. Which component of Cisco Modeling Labs (CML) is
responsible for coordinating the overall lab lifecycle,
handling user authentication, and managing the API
endpoints?
A) CML Compute Node
B) CML Controller
C) Breakout Utility
D) Cisco Smart License Agent
Answer: B
Rationale: The CML Controller acts as the central
management brain of the platform. It handles user
,authentication, exposes the REST API, manages lab state
definitions, and coordinates operations with underlying
compute resources.
Q2. When using CML, what is the primary advantage of
deploying a standalone "Compute Node" in a clustered
architecture?
A) It replaces the need for an external user interface.
B) It offloads the virtual machine virtualization workloads from the
primary controller.
C) It automatically registers licenses directly with Cisco Smart
Software Manager.
D) It eliminates the requirement for an underlying Linux operating
system.
Answer: B
Rationale: In a clustered CML deployment, compute nodes
scale out the capacity of the cluster by distributing and
running the heavy CPU and RAM workloads required by the
virtual node hypervisors, leaving the primary controller free
to handle administration.
Q3. Which virtual node reference platform should a network
engineer select in CML to test advanced Layer 3 routing
protocols like OSPFv3, BGP, and EIGRP?
A) IOSvL2
B) IOSv
C) ASAv
D) Ubuntu Linux
Answer: B
,Rationale: The IOSv (Cisco IOS Virtual) node is specifically
designed to simulate Layer 3 routing features, control-plane
protocols, and general IOS functionality, whereas IOSvL2 is
optimized for Layer 2 switching features.
Q4. To bridge a virtual simulation topology directly to a
physical lab switch or access an external corporate network,
which node type must be integrated into the CML canvas?
A) Unmanaged Switch
B) External Connector
C) Alpine Linux Desktop
D) Core Router Node
Answer: B
Rationale: The External Connector node maps virtual links
within a CML topology directly to physical or virtual network
interfaces on the host server (using bridge or NAT modes),
enabling communication with external infrastructure.
Q5. A user wants to use SecureCRT or PuTTY on their local
laptop to access the CLI of CML nodes instead of using the
built-in browser HTML5 console. Which CML utility facilitates
this?
A) REST API Explorer
B) CML Breakout Tool
C) Cockpit Admin Console
D) YAML Lab Importer
Answer: B
Rationale: The CML Breakout Tool is a local desktop
application that runs on the user's PC and maps local TCP
, ports directly to the telnet console streams of the remote
CML virtual nodes.
Q6. What happens to the configuration of a virtual router in
CML if you issue a "Wipe" command on that node?
A) The node is permanently deleted from the CML user inventory
dashboard.
B) The node's NVRAM and persistent disk changes are erased,
reverting it back to a pristine default state.
C) The node's running-config is automatically exported directly to
a remote TFTP server.
D) The node is duplicated, creating a clone with an identical IP
address structure.
Answer: B
Rationale: Wiping a node destroys its temporary disk layer,
erasing all changes made to its running configuration,
startup configuration, or files, effectively factory-resetting it
to its default base image state.
Q7. Which HTTP protocol methodology and structure does
the modern Cisco Modeling Labs programmatic interface use
for lab automation and third-party script integrations?
A) SOAP XML Web Services
B) RESTful API using JSON payloads
C) gRPC using Google Protocol Buffers
D) CORBA RPC Middleware
Answer: B
Rationale: CML is engineered with a modern RESTful API that
accepts and returns standard JSON data structures, allowing
