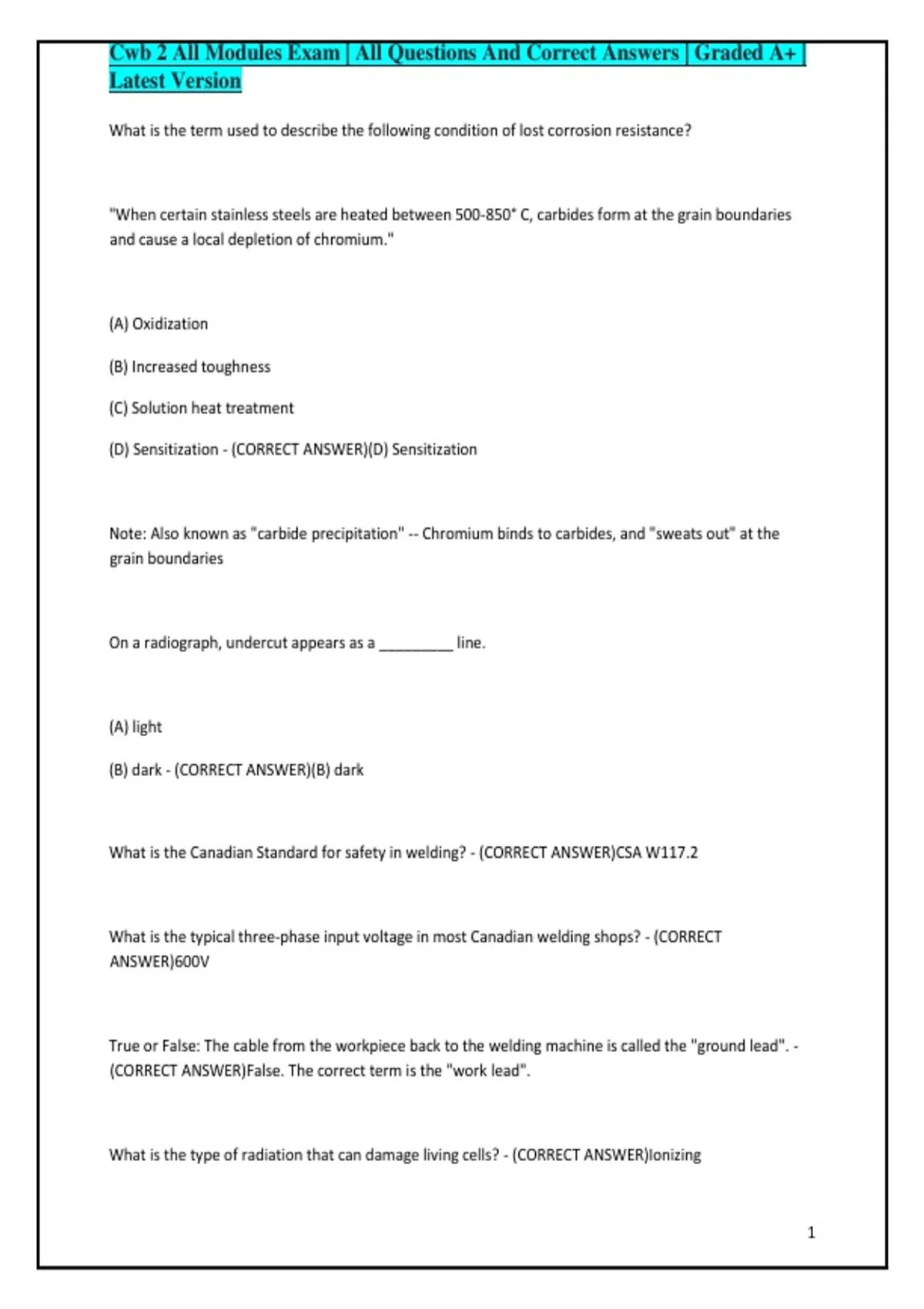

Cwb 2 All Modules Exam | All Questions And Correct Answers | Graded A+ |
Latest Version
What is the term used to describe the following condition of lost corrosion resistance?
"When certain stainless steels are heated between 500-850° C, carbides form at the grain boundaries
and cause a local depletion of chromium."
(A) Oxidization
(B) Increased toughness
(C) Solution heat treatment
(D) Sensitization - (CORRECT ANSWER)(D) Sensitization
Note: Also known as "carbide precipitation" -- Chromium binds to carbides, and "sweats out" at the
grain boundaries
On a radiograph, undercut appears as a _________ line.
(A) light
(B) dark - (CORRECT ANSWER)(B) dark
What is the Canadian Standard for safety in welding? - (CORRECT ANSWER)CSA W117.2
What is the typical three-phase input voltage in most Canadian welding shops? - (CORRECT
ANSWER)600V
True or False: The cable from the workpiece back to the welding machine is called the "ground lead". -
(CORRECT ANSWER)False. The correct term is the "work lead".
What is the type of radiation that can damage living cells? - (CORRECT ANSWER)Ionizing
1
,Name two examples of ionizing radiation. - (CORRECT ANSWER)X-rays and Gamma rays
What is the minimum suggested shade for a welding helmet when using 5/32 SMAW electrode at 150
A? - (CORRECT ANSWER)Shade 10
Approx. how far could spatter travel when welding/cutting from 2.5m high? - (CORRECT
ANSWER)Possibly up to 6m
What is the toxic component contained in some copper alloys? - (CORRECT ANSWER)Beryllium
Which welding process will likely have the highest fume generation rate?
[SMAW / SAW / FCAW] - (CORRECT ANSWER)FCAW
What do the terms TLV and TWA stand for? - (CORRECT ANSWER)TLV: Threshold limit value
TWA: Time weighted average
The action of UV light on oxygen produces which toxic gas? - (CORRECT ANSWER)Ozone
Which common fuel gas has the widest range where it can become flammable when mixed with air? -
(CORRECT ANSWER)Acetylene
What substance should you NEVER apply to a stiff pressure-adjusting screw on an oxygen regulator? -
(CORRECT ANSWER)Oil or grease
What is the maximum gauge pressure that acetylene should be used? (kPa/psi) - (CORRECT
ANSWER)103 kPa (15 psi)
2
,Which toxic gas is produced when welding on surfaces with chlorinated hydrocarbon solvents? -
(CORRECT ANSWER)Phosgene gas
What is the typical max. OCV of an AC welding machine? - (CORRECT ANSWER)80 V
In an isometric drawing, the lines (for width, length and depth) are inclined at an angle of how many
degrees? - (CORRECT ANSWER)30°
What are the maximum number of views in an orthographic drawing? - (CORRECT ANSWER)6
What are the two general classes of picture drawings? - (CORRECT ANSWER)Perspective and Isometric
What are the 5 basic joints? - (CORRECT ANSWER)1) Butt
2) Corner
3) T
4) Lap
5) Edge
What are the 5 basic weld types? - (CORRECT ANSWER)1) Groove
2) Fillet
3) Plug/Slot
4) Surfacing
5) Edge
Plasma cutting torch temp can reach temperatures of __________ ° Celsius. - (CORRECT
ANSWER)30,000
3
, True or False: All plasma arc cutting equipment is operated using DCEN. - (CORRECT ANSWER)True
True or False: Stainless steel can be readily cut with a normal oxy-fuel gas process. - (CORRECT
ANSWER)False
What are the two basic methods of plasma torch operation? - (CORRECT ANSWER)Transferred and Non-
Transferred arc
In North America, the 3 othographic views most commonly-used are: TOP, FRONT and __________ Side.
[RIGHT / LEFT] - (CORRECT ANSWER)LEFT
What is the difference between a "weld symbol" and a "welding symbol"? - (CORRECT ANSWER)A "weld
symbol" indicates the specific kind of weld to be used (ex. fillet), and is contained inside of "welding
symbol".
In a welding symbol, is the size of the weld located to the LEFT or RIGHT of the fillet weld symbol? -
(CORRECT ANSWER)LEFT
In a welding symbol, is the length of the weld located to the LEFT or RIGHT of the fillet weld symbol? -
(CORRECT ANSWER)RIGHT
In what direction do the electrons flow in an electrical arc?
(A) anode --> cathode
(B) cathode --> anode - (CORRECT ANSWER)(B) cathode --> anode
4
