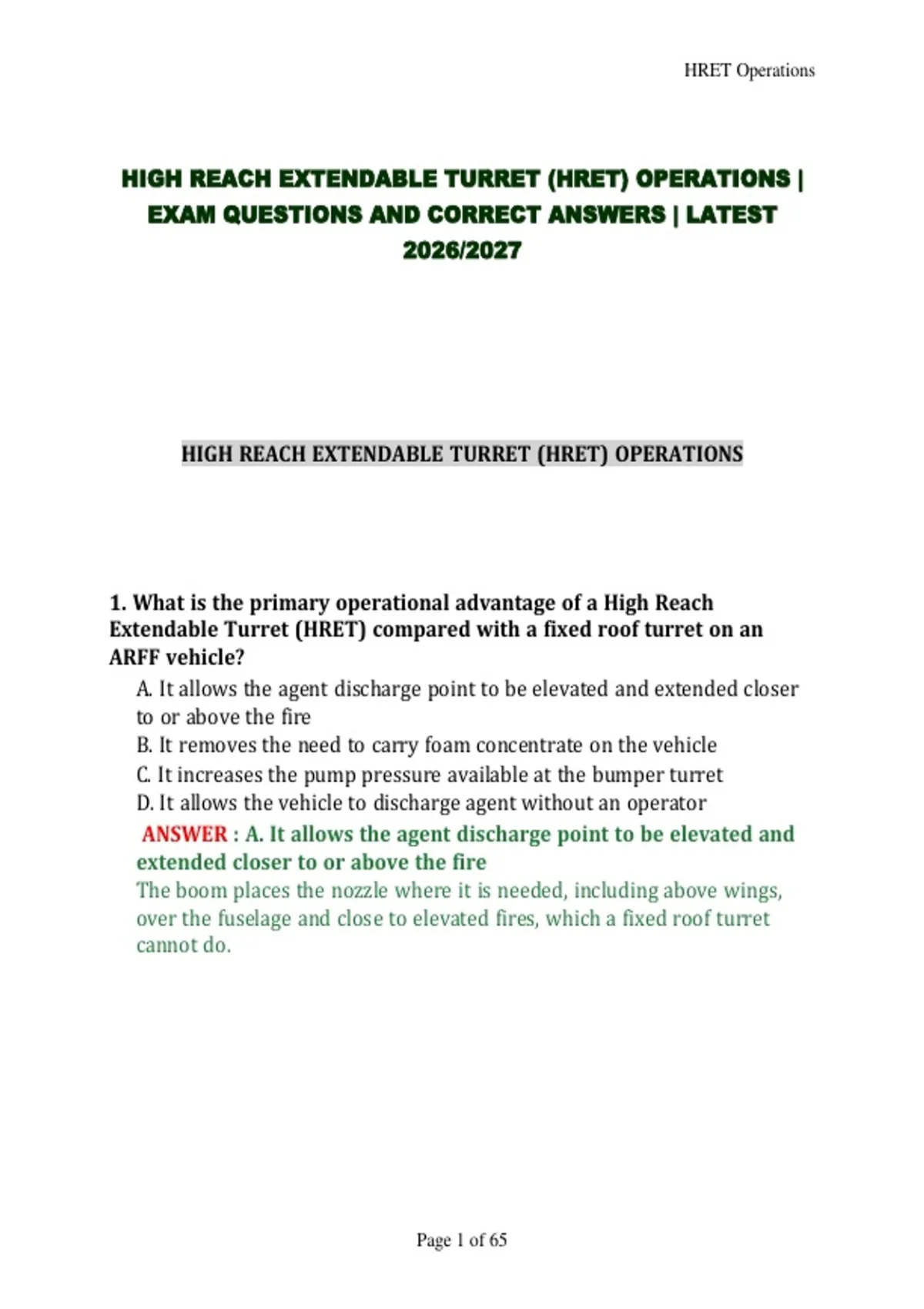

HRET Operations
HIGH REACH EXTENDABLE TURRET (HRET) OPERATIONS |
EXAM QUESTIONS AND CORRECT ANSWERS | LATEST
2026/2027
HIGH REACH EXTENDABLE TURRET (HRET) OPERATIONS
1. What is the primary operational advantage of a High Reach
Extendable Turret (HRET) compared with a fixed roof turret on an
ARFF vehicle?
A. It allows the agent discharge point to be elevated and extended closer
to or above the fire
B. It removes the need to carry foam concentrate on the vehicle
C. It increases the pump pressure available at the bumper turret
D. It allows the vehicle to discharge agent without an operator
ANSWER : A. It allows the agent discharge point to be elevated and
extended closer to or above the fire
The boom places the nozzle where it is needed, including above wings,
over the fuselage and close to elevated fires, which a fixed roof turret
cannot do.
Page 1 of 65
, HRET Operations
2. An HRET is most commonly mounted on which type of apparatus?
A. A structural aerial ladder truck
B. A fuel servicing truck
C. A rapid intervention pickup vehicle
D. A major ARFF vehicle
ANSWER : D. A major ARFF vehicle
HRETs are installed on major ARFF vehicles, usually on the roof or rear
deck, and are supplied by the vehicle's main fire pump.
3. Commercially available ARFF HRET booms are generally offered in
which approximate working-height classes?
A. About 50 ft and about 65 ft
B. About 10 ft and about 15 ft
C. About 100 ft and about 135 ft
D. About 150 ft and about 200 ft
ANSWER : A. About 50 ft and about 65 ft
The common HRET sizes in service are in the 50 ft and 65 ft classes,
enough to reach the upper deck and tail areas of large transport aircraft.
4. Which HRET component allows firefighting agent to be delivered
directly into the interior of an aircraft fuselage?
A. The ground sweep nozzle
B. The skin-penetrating (piercing) nozzle
C. The undertruck nozzle
D. The bumper turret
ANSWER : B. The skin-penetrating (piercing) nozzle
The piercing nozzle on the boom tip is driven through the aircraft skin so
agent can be discharged inside the cabin, cargo hold or nacelle.
Page 2 of 65
, HRET Operations
5. The tip of an HRET skin-penetrating nozzle is typically made from:
A. Hardened steel or carbide able to penetrate aluminum and composite
skins
B. Brass, so it will not spark against the aircraft
C. Molded plastic to prevent damage to the aircraft
D. A soft aluminum alloy that deforms on contact
ANSWER : A. Hardened steel or carbide able to penetrate aluminum
and composite skins
The tip must be harder than the aircraft skin so it can punch through
aluminum and composite panels without blunting or bending.
6. What equipment is commonly mounted near the boom tip to give the
operator a view of the work area?
A. A video camera, often with thermal imaging capability
B. A wind sock
C. A radar altimeter
D. A spotlight with no camera
ANSWER : A. A video camera, often with thermal imaging capability
A boom tip camera sends a picture to the cab monitor so the operator can
aim and position the nozzle precisely, even beyond direct line of sight.
7. Why are thermal imaging cameras frequently fitted to HRET booms?
A. To locate hot spots and the seat of the fire through smoke and through
the fuselage skin
B. To read the aircraft registration at night
C. To measure the foam expansion ratio during discharge
D. To detect fuel vapor concentrations in the cabin
ANSWER : A. To locate hot spots and the seat of the fire through
smoke and through the fuselage skin
Thermal imaging shows heat through smoke and on the fuselage surface,
helping the operator choose the best piercing point and target hidden fire.
Page 3 of 65
, HRET Operations
8. From where is a typical ARFF HRET operated?
A. Only by remote control from the fire station
B. From inside the vehicle cab using a joystick control
C. From a pedestal at the rear bumper only
D. From a ladder platform at the boom tip
ANSWER : B. From inside the vehicle cab using a joystick control
Cab-mounted joystick controls let the operator run the boom, nozzle and
piercer while staying inside the protected cab.
9. How does a cab-controlled HRET improve firefighter safety?
A. It eliminates the need for protective clothing at all incidents
B. It allows firefighters to stand on the boom while it is extended
C. It reduces exposure because the operator applies agent from inside the
protected cab
D. It allows the vehicle to respond without a driver
ANSWER : C. It reduces exposure because the operator applies agent
from inside the protected cab
Close-in agent application and cabin penetration can be performed
without placing firefighters in the hazard zone around the burning
aircraft.
10. Which set of movements is typical of an HRET boom and nozzle?
A. Extension only, with no rotation
B. Vertical lift with no horizontal reach
C. Rotation only, with a fixed elevation
D. Elevation, extension, rotation and nozzle pan and tilt
ANSWER : D. Elevation, extension, rotation and nozzle pan and tilt
The boom elevates, telescopes and rotates, while the nozzle itself can pan
and tilt to place the stream precisely.
Page 4 of 65
