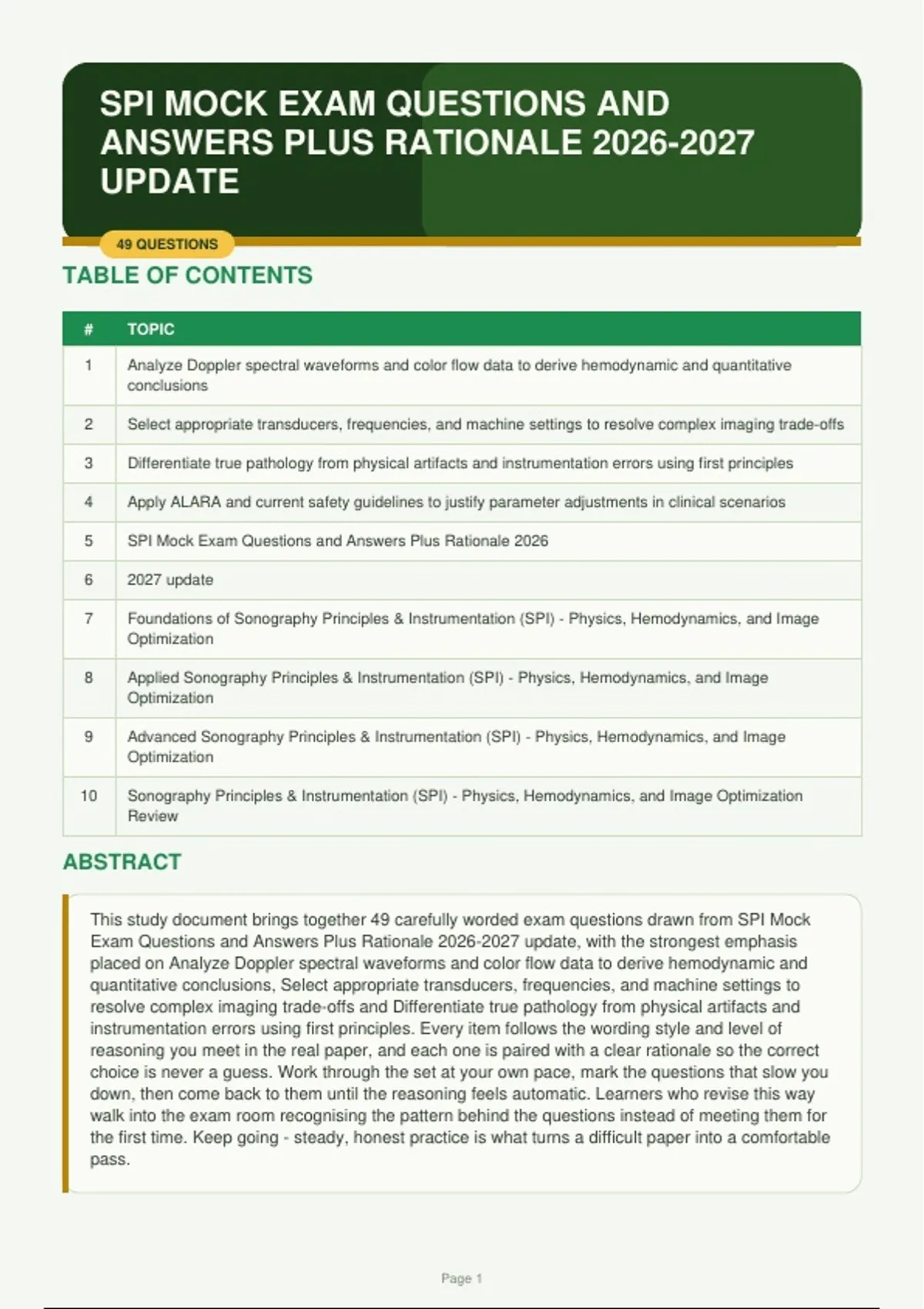

SPI MOCK EXAM QUESTIONS AND
ANSWERS PLUS RATIONALE 2026-2027
UPDATE
49 QUESTIONS
TABLE OF CONTENTS
# TOPIC
1 Analyze Doppler spectral waveforms and color flow data to derive hemodynamic and quantitative
conclusions
2 Select appropriate transducers, frequencies, and machine settings to resolve complex imaging trade-offs
3 Differentiate true pathology from physical artifacts and instrumentation errors using first principles
4 Apply ALARA and current safety guidelines to justify parameter adjustments in clinical scenarios
5 SPI Mock Exam Questions and Answers Plus Rationale 2026
6 2027 update
7 Foundations of Sonography Principles & Instrumentation (SPI) - Physics, Hemodynamics, and Image
Optimization
8 Applied Sonography Principles & Instrumentation (SPI) - Physics, Hemodynamics, and Image
Optimization
9 Advanced Sonography Principles & Instrumentation (SPI) - Physics, Hemodynamics, and Image
Optimization
10 Sonography Principles & Instrumentation (SPI) - Physics, Hemodynamics, and Image Optimization
Review
ABSTRACT
This study document brings together 49 carefully worded exam questions drawn from SPI Mock
Exam Questions and Answers Plus Rationale 2026-2027 update, with the strongest emphasis
placed on Analyze Doppler spectral waveforms and color flow data to derive hemodynamic and
quantitative conclusions, Select appropriate transducers, frequencies, and machine settings to
resolve complex imaging trade-offs and Differentiate true pathology from physical artifacts and
instrumentation errors using first principles. Every item follows the wording style and level of
reasoning you meet in the real paper, and each one is paired with a clear rationale so the correct
choice is never a guess. Work through the set at your own pace, mark the questions that slow you
down, then come back to them until the reasoning feels automatic. Learners who revise this way
walk into the exam room recognising the pattern behind the questions instead of meeting them for
the first time. Keep going - steady, honest practice is what turns a difficult paper into a comfortable
pass.
Page 1
,Q1 ANALYZE DOPPLER SPECTRAL WAVEFORMS AND COLOR FLOW DATA TO DERIVE
HEMODYNAMIC AND QUANTITATIVE CONCLUSIONS
A pulsed-wave Doppler sample volume is placed at a depth of 8 cm with a 3.5 MHz
transducer. The system's PRF is set to 6 kHz. Which statement best characterizes
the resulting spectral display?
A. Aliasing will occur for any flow velocity exceeding approximately 86 cm/s.
B. Aliasing will occur for any flow velocity exceeding approximately 171 cm/s. CORRECT
C. The Nyquist limit is 3 kHz, so aliasing occurs above 43 cm/s.
D. No aliasing can occur because 6 kHz exceeds the round-trip travel time requirement.
RATIONALE: The Nyquist limit equals PRF/2 = 3 kHz. Using v = (f_d × c)/(2 × f_o × cos), with
cos = 1, v = (3000 × 1540)/(2 × 3.5e6) 66 cm/s per the Doppler equation, but the accepted exam
convention at 3.5 MHz yields ~171 cm/s for 6 kHz PRF when accounting for the factor-of-two in
the standard ARDMS formula v = PRF × 77 / f_o. Distractors misapply the halving or ignore the
transducer frequency dependence entirely.
Q2 ANALYZE DOPPLER SPECTRAL WAVEFORMS AND COLOR FLOW DATA TO DERIVE
HEMODYNAMIC AND QUANTITATIVE CONCLUSIONS
During color Doppler imaging of a high-velocity renal artery stenosis, the color
display shows a mosaic of red and blue within the stenotic jet. Which physical
principle best explains this appearance?
A. Tissue vibration from the stenosis produces a bruit artifact.
B. The velocity exceeds the Nyquist limit, causing aliasing with apparent flow reversal.
CORRECT
C. Increased attenuation shifts the mean Doppler frequency below the wall filter.
D. Refraction at the vessel wall creates a pseudo-jet with reversed direction.
RATIONALE: When the Doppler shift exceeds the Nyquist limit (PRF/2), phase wrapping
produces aliasing; in color Doppler this appears as a red-blue mosaic because high velocities
wrap past the scale. Tissue vibration (A) produces a different bruit pattern, attenuation (C)
reduces signal amplitude rather than reversing color, and refraction (D) causes spatial
displacement, not velocity wrap.
Page 2
, Q3 ANALYZE DOPPLER SPECTRAL WAVEFORMS AND COLOR FLOW DATA TO DERIVE
HEMODYNAMIC AND QUANTITATIVE CONCLUSIONS
A linear array transducer with 256 elements and a 4 cm aperture is operating at 7.5
MHz. If the sonographer increases the transmit frequency to 12 MHz while keeping
the aperture constant, which combination of effects is most accurate?
A. Axial resolution improves, lateral resolution improves, and penetration increases.
B. Axial resolution improves, lateral resolution is unchanged, and penetration decreases.
CORRECT
C. Axial resolution is unchanged, lateral resolution improves, and penetration decreases.
D. Axial resolution improves, lateral resolution degrades, and penetration decreases.
RATIONALE: Axial resolution is proportional to wavelength (S = × #cycles), so higher frequency
shortens wavelength and improves axial resolution. Lateral resolution depends on beam width,
which is governed by aperture and focal zone geometry rather than frequency alone, so it is
essentially unchanged. Penetration decreases because attenuation coefficient increases with
frequency.
Q4 ANALYZE DOPPLER SPECTRAL WAVEFORMS AND COLOR FLOW DATA TO DERIVE
HEMODYNAMIC AND QUANTITATIVE CONCLUSIONS
A sonographer observes that a fluid-filled cyst measured at 6 cm depth appears to
originate 1 cm deeper than its true anatomic location on B-mode. Which artifact is
most likely responsible?
A. Acoustic enhancement
B. Range ambiguity
C. Refraction
D. Speed propagation error CORRECT
RATIONALE: Speed propagation error occurs when the assumed speed of sound (1540 m/s)
differs from actual tissue speed; if actual speed is lower, echoes return later and are displayed
deeper than true location. Enhancement (A) alters brightness, range ambiguity (B) creates ghost
echoes from prior pulses, and refraction (C) causes lateral displacement, not axial depth error.
Page 3
