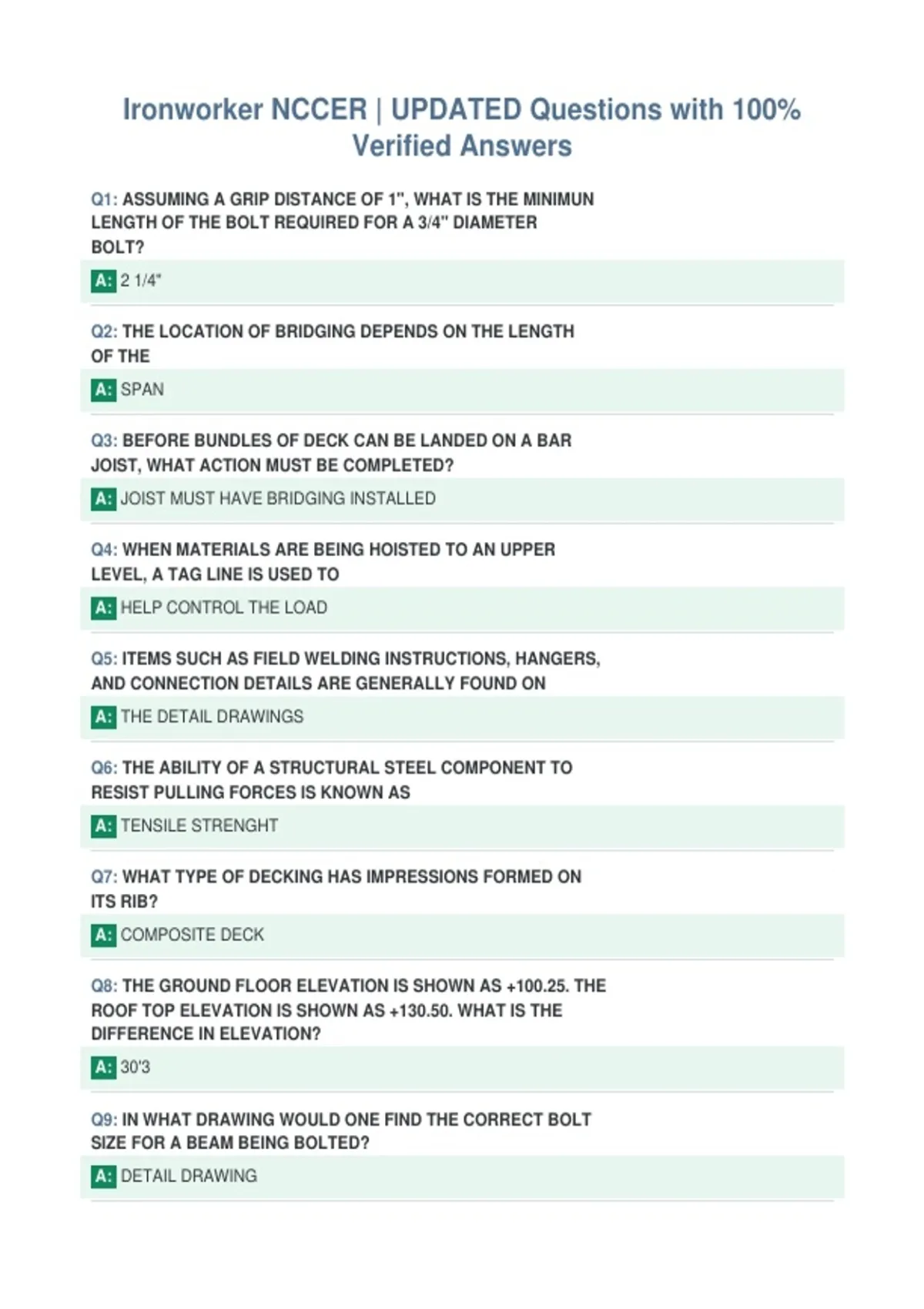

Ironworker NCCER | UPDATED Questions with 100%
Verified Answers
Q1: ASSUMING A GRIP DISTANCE OF 1", WHAT IS THE MINIMUN
LENGTH OF THE BOLT REQUIRED FOR A 3/4" DIAMETER
BOLT?
A: 2 1/4"
Q2: THE LOCATION OF BRIDGING DEPENDS ON THE LENGTH
OF THE
A: SPAN
Q3: BEFORE BUNDLES OF DECK CAN BE LANDED ON A BAR
JOIST, WHAT ACTION MUST BE COMPLETED?
A: JOIST MUST HAVE BRIDGING INSTALLED
Q4: WHEN MATERIALS ARE BEING HOISTED TO AN UPPER
LEVEL, A TAG LINE IS USED TO
A: HELP CONTROL THE LOAD
Q5: ITEMS SUCH AS FIELD WELDING INSTRUCTIONS, HANGERS,
AND CONNECTION DETAILS ARE GENERALLY FOUND ON
A: THE DETAIL DRAWINGS
Q6: THE ABILITY OF A STRUCTURAL STEEL COMPONENT TO
RESIST PULLING FORCES IS KNOWN AS
A: TENSILE STRENGHT
Q7: WHAT TYPE OF DECKING HAS IMPRESSIONS FORMED ON
ITS RIB?
A: COMPOSITE DECK
Q8: THE GROUND FLOOR ELEVATION IS SHOWN AS +100.25. THE
ROOF TOP ELEVATION IS SHOWN AS +130.50. WHAT IS THE
DIFFERENCE IN ELEVATION?
A: 30'3
Q9: IN WHAT DRAWING WOULD ONE FIND THE CORRECT BOLT
SIZE FOR A BEAM BEING BOLTED?
A: DETAIL DRAWING
, Q10: WHAT SHOULD ALWAYS BE USED TO IGNITE A CUTTING
TORCH?
A: STRIKER
Q11: EQUILIZING THE WEIGHT OF THE LOAD AT VARIOUS
LIFTING POINTS IS CALLED
A: CONFIGURATION
Q12: A COMBINATION SQUARE WITHOUT A PROTRACTOR HEAD
IS USED TO LAYOUT
A: 45 DEGREE LINES
Q13: PRIOR TO INSPECTION IT IS GOOD PRACTICE TO TEST ALL
STUDS WITH WHAT METHOD?
A: PING TEST
Q14: WHERE IS THE FULCRUM OR PIVOT POINT ON A FORKLIFT?
A: THE FRONT AXLE
Q15: A DOCUMENT THAT OUTLINES WEIGHTS,CRANE
CONFIGURATION AND RIGGING REQUIREMENTS FOR A
LIFT IS CALLED AN
A: LIFT PLAN
Q16: WHERE CAN THE BOLTING METHODS REGARDING
STRUCTURAL STEEL USUALLY BE FOUND ?
A: IN THE GENERAL NOTES OF THE STRUCTURAL DRAWINGS
Q17: WHEN ESTABLISHING ELEVATIONS OF STRUCTURAL STEEL
MEMBERS, THE REFERENCE POINT USED TO DETERMINE ALL
OTHER ELEVATIONS IS CALLED?
A: THE BENCHMARK
Q18: WHAT IS THE SURFACE AREA OF A RECTANGLE WITH THE
DIMENSIONS OF 30'6" TALL AND 6 FEET WIDE?
A: 183FT
Q19: MEASUREMENTS FROM THE CENTER OF THE CRANES AXIS
OF ROTATION TO THE CENTER OF THE LOAD LINE WITH THE
LOAD APPLIED IS
A: LOAD RADIUS
