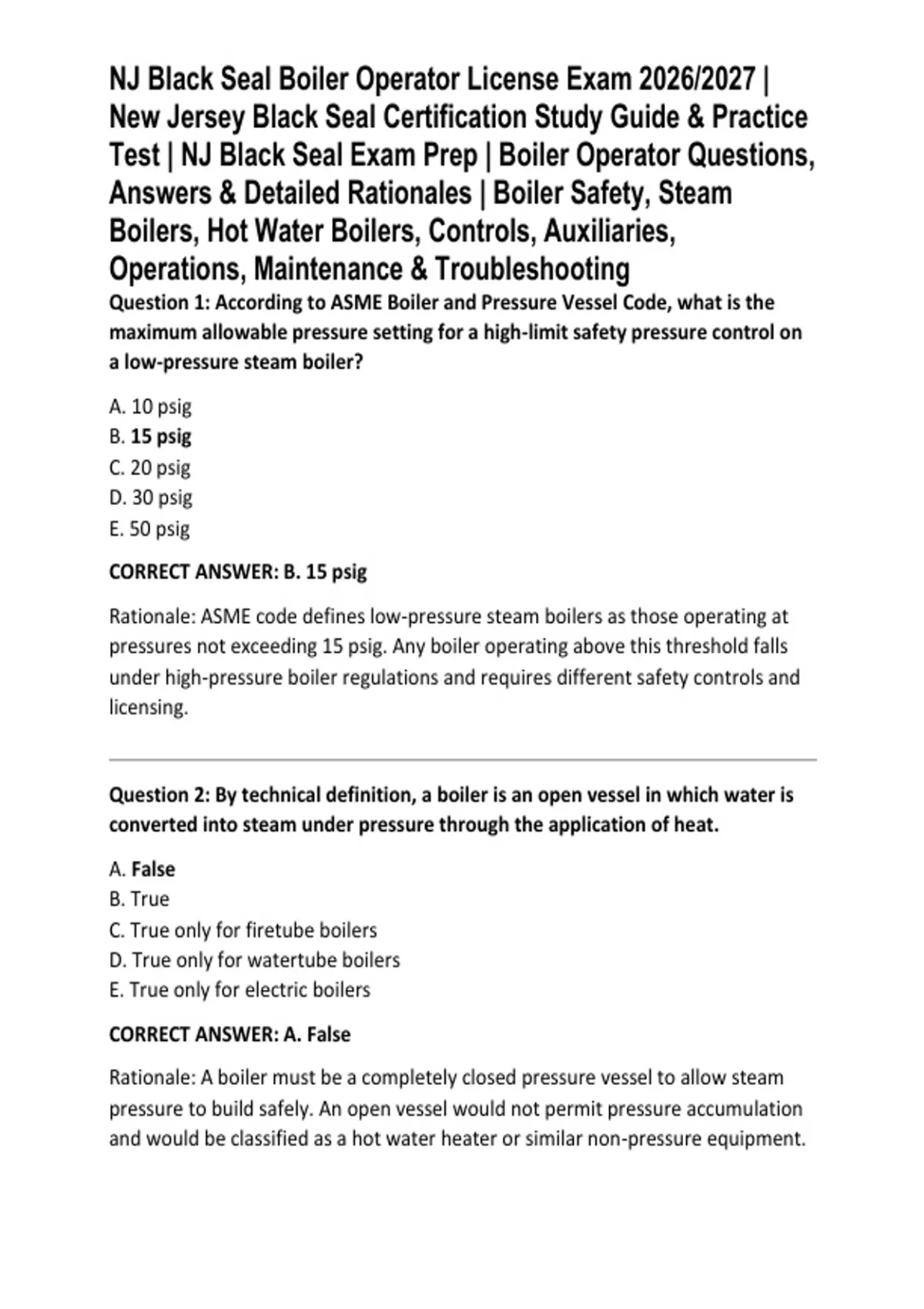

NJ Black Seal Boiler Operator License Exam 2026/2027 |
New Jersey Black Seal Certification Study Guide & Practice
Test | NJ Black Seal Exam Prep | Boiler Operator Questions,
Answers & Detailed Rationales | Boiler Safety, Steam
Boilers, Hot Water Boilers, Controls, Auxiliaries,
Operations, Maintenance & Troubleshooting
Question 1: According to ASME Boiler and Pressure Vessel Code, what is the
maximum allowable pressure setting for a high-limit safety pressure control on
a low-pressure steam boiler?
A. 10 psig
B. 15 psig
C. 20 psig
D. 30 psig
E. 50 psig
CORRECT ANSWER: B. 15 psig
Rationale: ASME code defines low-pressure steam boilers as those operating at
pressures not exceeding 15 psig. Any boiler operating above this threshold falls
under high-pressure boiler regulations and requires different safety controls and
licensing.
Question 2: By technical definition, a boiler is an open vessel in which water is
converted into steam under pressure through the application of heat.
A. False
B. True
C. True only for firetube boilers
D. True only for watertube boilers
E. True only for electric boilers
CORRECT ANSWER: A. False
Rationale: A boiler must be a completely closed pressure vessel to allow steam
pressure to build safely. An open vessel would not permit pressure accumulation
and would be classified as a hot water heater or similar non-pressure equipment.
,Question 3: According to New Jersey Administrative Code rules, a school
operating a boiler plant with a total interconnected capacity of exactly 100
Boiler Horsepower must have a properly licensed operator present on the
premises at all times when the building is occupied.
A. True
B. False
C. True, but only during heating season
D. True, but only for steam boilers
E. True, but only for hot water boilers
CORRECT ANSWER: B. False
Rationale: Under N.J.A.C. guidelines, continuous attendance by a licensed
operator becomes mandatory when the total capacity exceeds 100 BHP. Plants of
exactly 100 BHP or less do not trigger this requirement.
Question 4: According to state jurisdictional boiler regulations, where must the
official boiler registration identification number or state stamp be permanently
and visibly located?
A. On the rear of the boiler shell
B. On the front of the boiler shell or casing
C. Inside the boiler access door
D. On the boiler nameplate only
E. On the certificate of inspection only
CORRECT ANSWER: B. On the front of the boiler shell or casing
Rationale: State boiler regulations require the registration identification number
or state stamp to be permanently and visibly located on the front of the boiler
shell or casing for easy inspection and identification.
,Question 5: A formal, continuous boiler operator's logbook must be actively
maintained in any plant that houses equipment exceeding what total capacity
threshold?
A. 50 Boiler HP
B. 75 Boiler HP
C. 100 Boiler HP
D. 150 Boiler HP
E. 200 Boiler HP
CORRECT ANSWER: C. 100 Boiler HP
Rationale: New Jersey regulations require a formal, continuous boiler operator's
logbook to be maintained in any plant containing equipment exceeding 100 Boiler
Horsepower total capacity.
Question 6: If in good standing, an expired New Jersey boiler operator license
can be renewed within what period?
A. 1 year
B. 2 years
C. 3 years
D. 5 years
E. Indefinitely
CORRECT ANSWER: C. 3 years
Rationale: New Jersey regulations permit renewal of an expired boiler operator
license within a 3-year period, provided the license was in good standing at the
time of expiration.
Question 7: The low-pressure Black Seal license permits the operator to operate
boiler plants of what maximum capacity?
A. 100 BHP
B. 250 BHP
C. 500 BHP
, D. 1,000 BHP
E. No limit
CORRECT ANSWER: E. No limit
Rationale: The low-pressure Black Seal license has no horsepower limit for low-
pressure boiler plants. It authorizes operation of any low-pressure boiler plant
regardless of total capacity.
Question 8: What is the maximum penalty for performing the duties of a boiler
operator with an expired license in New Jersey?
A. $500.00
B. $1,000.00
C. $2,500.00
D. **$5,000.00**
E. $10,000.00
CORRECT ANSWER: D. $5,000.00
Rationale: New Jersey imposes a maximum penalty of $5,000.00 for performing
boiler operator duties with an expired license. This substantial penalty reflects the
safety-critical nature of proper licensing.
Question 9: Where on the Certificate of Inspection would you find the State of
New Jersey jurisdiction number?
A. Upper right corner
B. Lower left corner
C. Upper left corner
D. Lower right corner
E. Center of the document
CORRECT ANSWER: C. Upper left corner
Rationale: The State of New Jersey jurisdiction number is located in the upper left
corner of the Certificate of Inspection for easy identification by inspectors and
operators.
