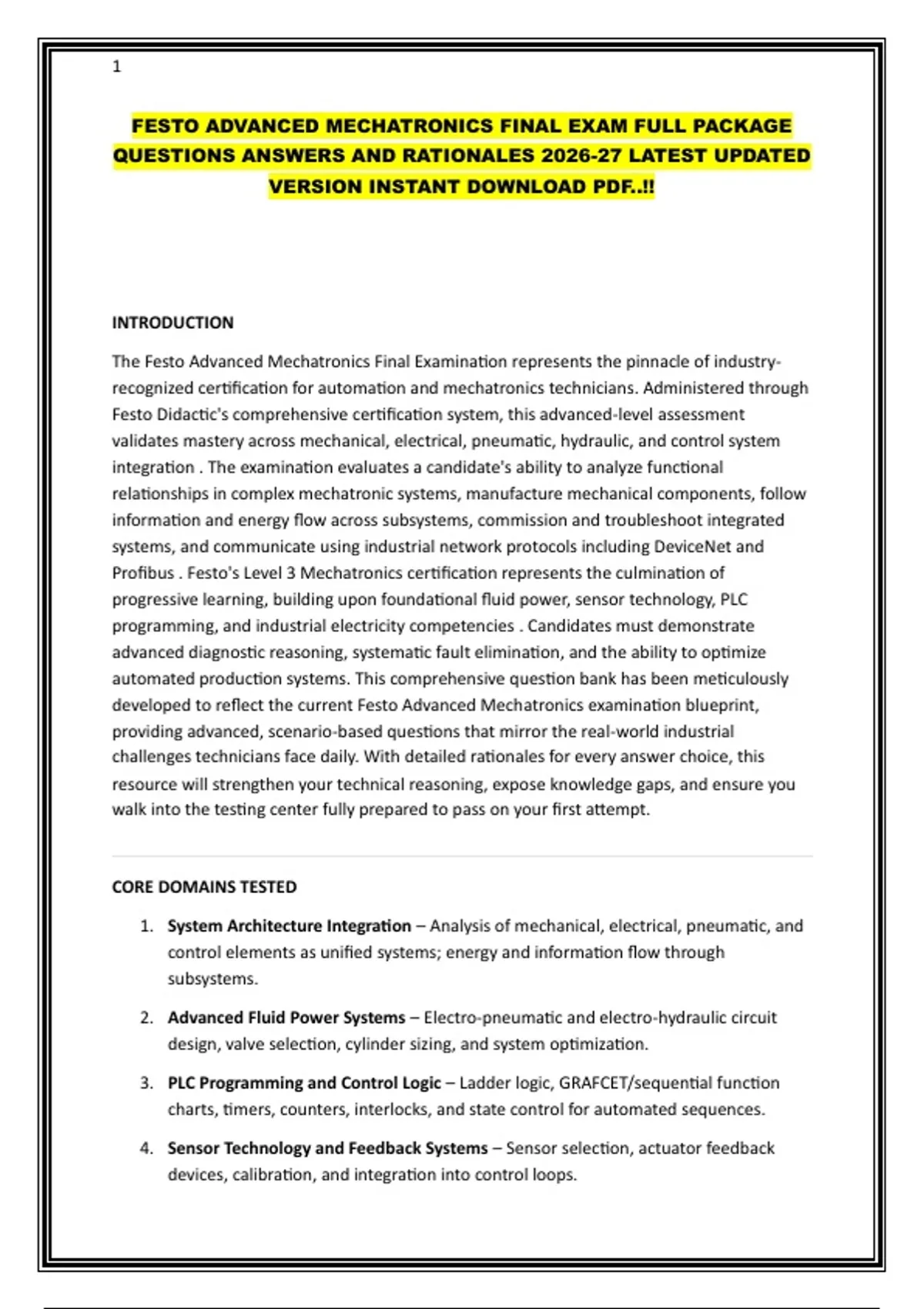

1
FESTO ADVANCED MECHATRONICS FINAL EXAM FULL PACKAGE
QUESTIONS ANSWERS AND RATIONALES 2026-27 LATEST UPDATED
VERSION INSTANT DOWNLOAD PDF..!!
INTRODUCTION
The Festo Advanced Mechatronics Final Examination represents the pinnacle of industry-
recognized certification for automation and mechatronics technicians. Administered through
Festo Didactic's comprehensive certification system, this advanced-level assessment
validates mastery across mechanical, electrical, pneumatic, hydraulic, and control system
integration . The examination evaluates a candidate's ability to analyze functional
relationships in complex mechatronic systems, manufacture mechanical components, follow
information and energy flow across subsystems, commission and troubleshoot integrated
systems, and communicate using industrial network protocols including DeviceNet and
Profibus . Festo's Level 3 Mechatronics certification represents the culmination of
progressive learning, building upon foundational fluid power, sensor technology, PLC
programming, and industrial electricity competencies . Candidates must demonstrate
advanced diagnostic reasoning, systematic fault elimination, and the ability to optimize
automated production systems. This comprehensive question bank has been meticulously
developed to reflect the current Festo Advanced Mechatronics examination blueprint,
providing advanced, scenario-based questions that mirror the real-world industrial
challenges technicians face daily. With detailed rationales for every answer choice, this
resource will strengthen your technical reasoning, expose knowledge gaps, and ensure you
walk into the testing center fully prepared to pass on your first attempt.
CORE DOMAINS TESTED
1. System Architecture Integration – Analysis of mechanical, electrical, pneumatic, and
control elements as unified systems; energy and information flow through
subsystems.
2. Advanced Fluid Power Systems – Electro-pneumatic and electro-hydraulic circuit
design, valve selection, cylinder sizing, and system optimization.
3. PLC Programming and Control Logic – Ladder logic, GRAFCET/sequential function
charts, timers, counters, interlocks, and state control for automated sequences.
4. Sensor Technology and Feedback Systems – Sensor selection, actuator feedback
devices, calibration, and integration into control loops.
,2
5. Commissioning and Verification – Homing procedures, calibration, automatic cycle
verification, and acceptance criteria.
6. Maintenance and Troubleshooting – Systematic fault diagnosis, preventive
maintenance, change control, and technical documentation.
7. Industrial Networks and Communication – DeviceNet, Profibus, AS-i, and fieldbus
configuration for distributed control.
8. Safety Systems and Machine Guarding – Safety relays, lockout procedures, and
recovery from interrupted motion.
QUESTIONS 1-200
Q1: A Festo MPS station has been commissioned, and the technician
notices that the cylinder extends but does not reach the forward end
position sensor. The PLC indicates the output to the valve is active.
Which diagnostic step should be performed FIRST?
A) Replace the end position sensor
B) Verify the valve is actually shifting by checking for the exhaust
flow at the valve
C) Increase the PLC output signal duration
D) Adjust the cushioning on the cylinder
Rationale: The correct answer is B. The PLC output being active does
not confirm the valve has shifted or that air is flowing. Verifying
exhaust flow confirms the valve shifted and the cylinder is receiving
pressure. Option A is premature without confirming the valve
function. Option C does not address the root cause. Option D is a
mechanical adjustment that should only be considered after
confirming valve operation.
Q2: During a Festo MPS sorting station commissioning, the system
fails to sort a specific material type. The color sensor detects the
part, but the diverter cylinder does not actuate. The PLC program
,3
shows the output is being commanded. Which component should be
checked FIRST?
A) The diverter cylinder seals
B) The solenoid valve coil and electrical connection to the valve
C) The PLC output card fuse
D) The color sensor calibration
Rationale: The correct answer is B. If the PLC commands the output
but the cylinder does not actuate, the fault lies between the PLC and
the valve. The solenoid coil and its electrical connection are the most
likely failure points. Option A assumes air is reaching the cylinder,
which has not been verified. Option C would affect multiple outputs.
Option D has been confirmed functional since detection occurred.
Q3: A technician is analyzing a GRAFCET program for an automated
assembly sequence. The system remains stuck in step 5 and does not
transition to step 6. The transition condition is "Part Present AND
Clamp Closed." The "Part Present" sensor LED is illuminated. Which is
the MOST likely cause?
A) The GRAFCET transition logic is programmed incorrectly
B) The clamp closed sensor is not detecting the clamp position
C) The PLC is in stop mode
D) The part present sensor is faulty
Rationale: The correct answer is B. Since "Part Present" is confirmed
via the sensor LED, the missing condition is "Clamp Closed." The
clamp closed sensor is likely not detecting or not positioned correctly.
Option A is possible but less likely than a sensor issue. Option C would
halt all operations. Option D is ruled out by the LED indication.
Q4: During commissioning of a Festo handling system, the technician
notices that the gripper drops parts during high-speed transfer. The
, 4
gripper closes and the sensor confirms the closed position. Which
parameter should be adjusted to improve grip security?
A) Increase the PLC program cycle time
B) Adjust the gripper force control or supply pressure regulation
C) Change the gripper sensor type
D) Slow down the transfer speed in the PLC program
Rationale: The correct answer is B. If the gripper closes but loses grip
during acceleration, the grip force is insufficient. Adjusting force
control or supply pressure increases holding force. Option A does not
affect grip force. Option C does not address the mechanical grip force.
Option D may mask the issue but does not solve the root cause.
Q5: A technician is troubleshooting a Festo MPS station that has
stopped mid-cycle. The PLC is in RUN mode, and all inputs appear
correct. Which diagnostic approach should be used NEXT?
A) Reboot the PLC
B) Check the PLC program for interlocks or safety conditions that
may be preventing progression
C) Replace the PLC output module
D) Manually force all outputs to test functionality
Rationale: The correct answer is B. If inputs are correct but the
sequence is halted, an interlock or safety condition in the program is
the most likely cause. Option A is a random action without diagnosis.
Option C is premature. Option D is dangerous and violates safe
troubleshooting practices.
Q6: In a Festo electro-pneumatic circuit, a double-acting cylinder is
controlled by a 5/2-way single solenoid valve. The technician needs
the cylinder to return to the retracted position when electrical power
is lost. Which valve configuration is REQUIRED?
