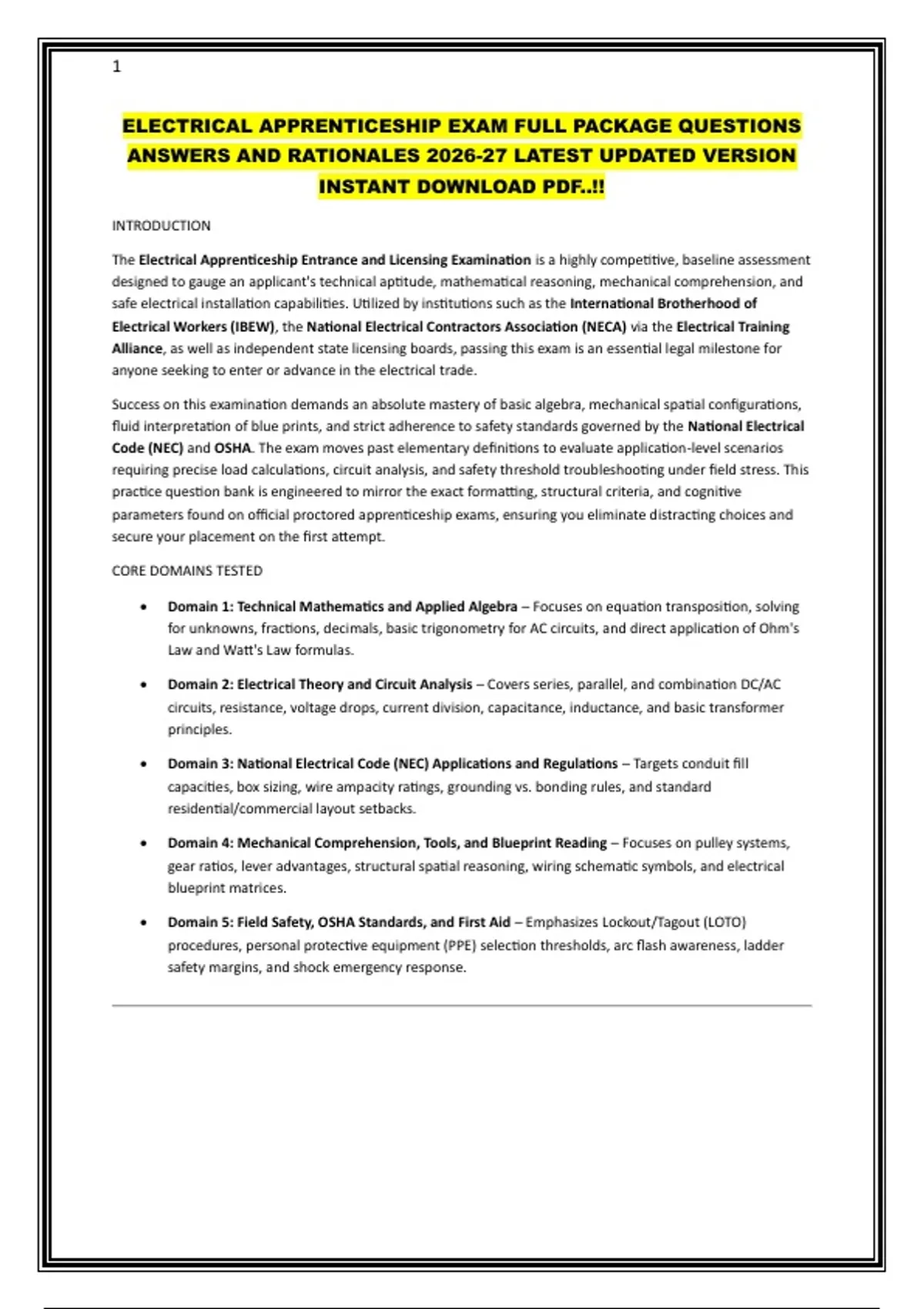

ELECTRICAL APPRENTICESHIP EXAM FULL PACKAGE QUESTIONS
ANSWERS AND RATIONALES 2026-27 LATEST UPDATED VERSION
INSTANT DOWNLOAD PDF..!!
INTRODUCTION
The Electrical Apprenticeship Entrance and Licensing Examination is a highly competitive, baseline assessment
designed to gauge an applicant's technical aptitude, mathematical reasoning, mechanical comprehension, and
safe electrical installation capabilities. Utilized by institutions such as the International Brotherhood of
Electrical Workers (IBEW), the National Electrical Contractors Association (NECA) via the Electrical Training
Alliance, as well as independent state licensing boards, passing this exam is an essential legal milestone for
anyone seeking to enter or advance in the electrical trade.
Success on this examination demands an absolute mastery of basic algebra, mechanical spatial configurations,
fluid interpretation of blue prints, and strict adherence to safety standards governed by the National Electrical
Code (NEC) and OSHA. The exam moves past elementary definitions to evaluate application-level scenarios
requiring precise load calculations, circuit analysis, and safety threshold troubleshooting under field stress. This
practice question bank is engineered to mirror the exact formatting, structural criteria, and cognitive
parameters found on official proctored apprenticeship exams, ensuring you eliminate distracting choices and
secure your placement on the first attempt.
CORE DOMAINS TESTED
• Domain 1: Technical Mathematics and Applied Algebra – Focuses on equation transposition, solving
for unknowns, fractions, decimals, basic trigonometry for AC circuits, and direct application of Ohm's
Law and Watt's Law formulas.
• Domain 2: Electrical Theory and Circuit Analysis – Covers series, parallel, and combination DC/AC
circuits, resistance, voltage drops, current division, capacitance, inductance, and basic transformer
principles.
• Domain 3: National Electrical Code (NEC) Applications and Regulations – Targets conduit fill
capacities, box sizing, wire ampacity ratings, grounding vs. bonding rules, and standard
residential/commercial layout setbacks.
• Domain 4: Mechanical Comprehension, Tools, and Blueprint Reading – Focuses on pulley systems,
gear ratios, lever advantages, structural spatial reasoning, wiring schematic symbols, and electrical
blueprint matrices.
• Domain 5: Field Safety, OSHA Standards, and First Aid – Emphasizes Lockout/Tagout (LOTO)
procedures, personal protective equipment (PPE) selection thresholds, arc flash awareness, ladder
safety margins, and shock emergency response.
,2
QUESTIONS 1-100
Q1: An apprentice is wiring a series circuit containing three resistors
with resistance values of 15 Ohms, 25 Ohms, and 40 Ohms,
respectively. The circuit is connected to a stable 120-Volt DC power
source. What is the total current flowing through the 25-Ohm
resistor?
A) 4.80 Amperes
B) 2.66 Amperes
C) 1.50 Amperes
D) 0.62 Amperes
Rationale: The correct answer is C. In a standard series circuit, the
total resistance (
𝑅𝑇
𝑅𝑇
) is the direct sum of all individual resistances:
𝑅𝑇
=15
+25
+40
=80
Ohms
. According to Ohm's Law (I = V / R), the total current flowing through
the circuit is calculated as:
𝐼𝑇
=120
,3
V
/80
Ohms
=1.5
Amperes
. A fundamental rule of series circuits states that current is constant
throughout the entire path; therefore, the current passing through
each individual resistor, including the 25-Ohm resistor, is exactly equal
to the total circuit current of 1.5 Amperes. Options A, B, and D reflect
mathematical transposition errors or a misapplication of parallel
circuit rules.
Q2: During a commercial rough-in installation, a journeyman
instructs an apprentice to pull four #10 AWG THHN copper current-
carrying conductors through a run of Electrical Metallic Tubing (EMT).
According to the National Electrical Code (NEC) conduit fill tables,
what is the primary operational safety hazard associated with
overfilling a raceway past its designated volumetric capacity?
A) The voltage drop along the run will instantaneously double.
B) Excessive heat accumulation due to restricted airflow and
conductor resistance, leading to degradation of insulation, short
circuits, and catastrophic fire hazards.
C) The alternating current will permanently shift its frequency phase.
D) The physical structural weight will crush the EMT coupling joints.
Rationale: The correct answer is B. The NEC specifies strict conduit fill
limits (typically 40% for three or more conductors) to ensure that the
heat generated by the resistance of current-carrying wires can
dissipate into the surrounding atmosphere. Overfilling a raceway
restricts airflow, causing temperatures to rise beyond the rating of
, 4
the conductor insulation (e.g., 90°C for THHN). This heat degrades the
plastic jacketing, exposing raw copper and triggering catastrophic
short circuits or arc faults. Option A is incorrect because voltage drop
is a function of length and wire gauge, not conduit fill. Option C is a
physical impossibility. Option D represents a minor mechanical
concern compared to the severe fire and electrical hazards of
insulation failure.
Q3: An apprentice needs to calculate the mechanical advantage of a
pulley system used to hoist a heavy 400-pound commercial
transformer up to a mezzanine level. The block and tackle system
utilizes a mechanical configuration with four supporting rope
segments directly sustaining the load. Disregarding friction, how
much pulling force must the apprentice apply to lift the transformer?
A) 400 pounds
B) 200 pounds
C) 100 pounds
D) 50 pounds
Rationale: The correct answer is C. The mechanical advantage (MA)
of a simple block and tackle pulley system is directly equal to the
number of rope segments that physically support the moving load. In
this scenario, there are four supporting rope strands, yielding a
mechanical advantage of 4. To find the required pulling force, divide
the total weight of the load by the mechanical advantage: 400 lbs / 4
= 100 pounds. Options A, B, and D reflect incorrect mechanical
advantage fractions or scaling assumptions.
Q4: A multi-family residential building requires a new 240-Volt single-
phase subpanel feeder run. The calculated continuous load on the
subpanel is 80 Amperes. According to the standard NEC rule for
continuous loads, the overcurrent protection device (breaker) and
the branch circuit conductors must be sized at what minimum
