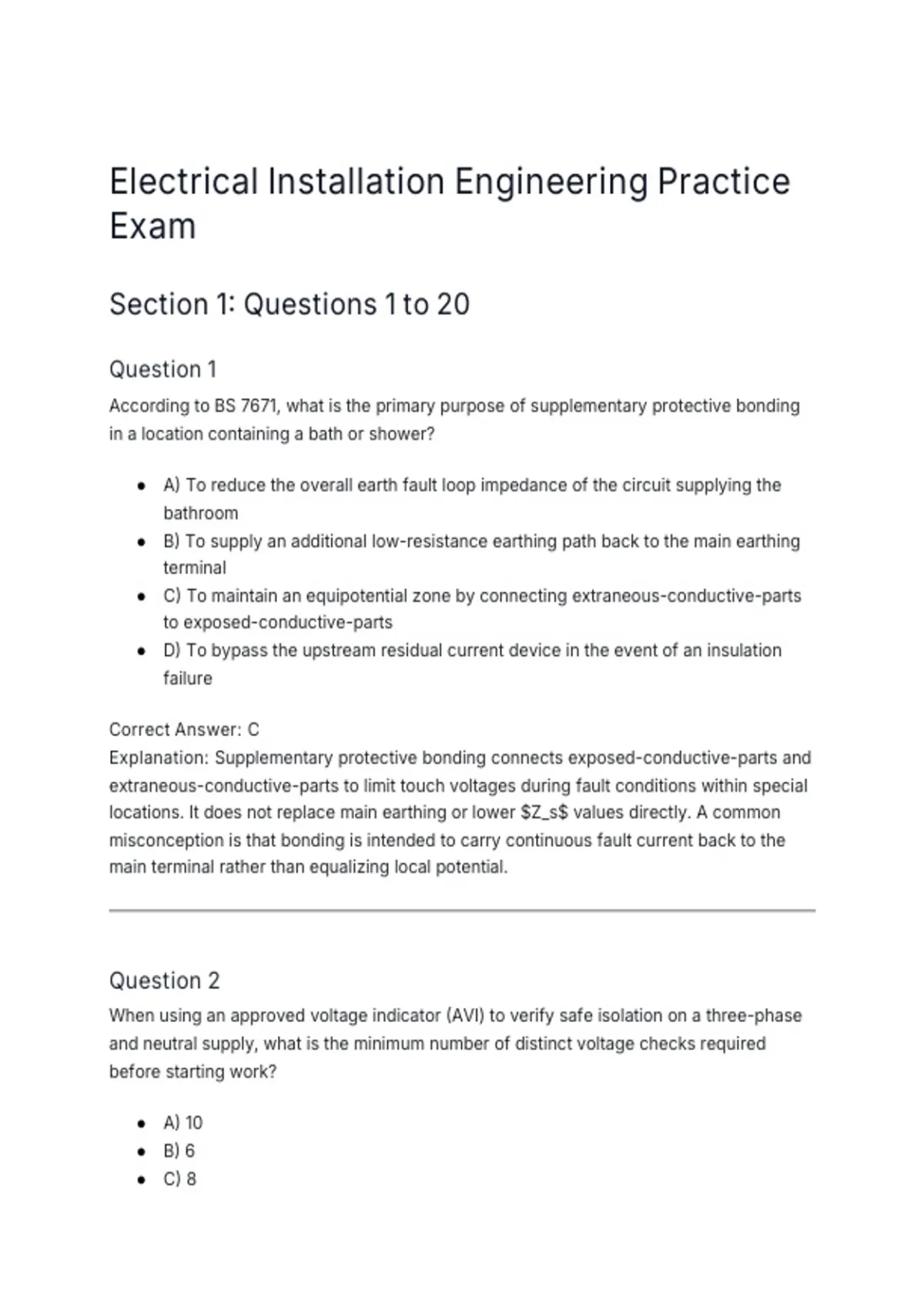

Electrical Installation Engineering Practice
Exam
Section 1: Questions 1 to 20
Question 1
According to BS 7671, what is the primary purpose of supplementary protective bonding
in a location containing a bath or shower?
● A) To reduce the overall earth fault loop impedance of the circuit supplying the
bathroom
● B) To supply an additional low-resistance earthing path back to the main earthing
terminal
● C) To maintain an equipotential zone by connecting extraneous-conductive-parts
to exposed-conductive-parts
● D) To bypass the upstream residual current device in the event of an insulation
failure
Correct Answer: C
Explanation: Supplementary protective bonding connects exposed-conductive-parts and
extraneous-conductive-parts to limit touch voltages during fault conditions within special
locations. It does not replace main earthing or lower $Z_s$ values directly. A common
misconception is that bonding is intended to carry continuous fault current back to the
main terminal rather than equalizing local potential.
Question 2
When using an approved voltage indicator (AVI) to verify safe isolation on a three-phase
and neutral supply, what is the minimum number of distinct voltage checks required
before starting work?
● A) 10
● B) 6
● C) 8
, ● D) 4
Correct Answer: A
Explanation: Safe isolation requires testing between all live conductors and earth, and
between all conductor combinations: L1-L2, L2-L3, L3-L1, L1-N, L2-N, L3-N, L1-E, L2-E,
L3-E, and N-E (totaling 10 checks). Skipping phase-to-phase or neutral-to-earth checks
is a common dangerous mistake. Always prove the instrument against a known source
before and after testing.
Question 3
What is the standard nominal line-to-line voltage for a three-phase low-voltage supply in
the UK?
● A) 230 V
● B) 240 V
● C) 415 V
● D) 400 V
Correct Answer: D
Explanation: The nominal low-voltage supply in the UK and Europe is $230\text{ V}$
single-phase and $400\text{ V}$ three-phase line-to-line ($230\text{ V} \times \sqrt{3} \
approx 400\text{ V}$). Students often confuse this with the legacy UK standard of $415\
text{ V}$.
Question 4
When performing a continuity test on a protective conductor ($R_2$) using long-lead
methods, what setting should be selected on a calibrated multifunction tester?
● A) Insulation resistance at $500\text{ V}$ DC
● B) Low resistance / continuity (Ohms) with lead resistance nulled
● C) Loop impedance ($Z_s$) high-current mode
● D) Earth electrode resistance test mode
,Correct Answer: B
Explanation: $R_2$ continuity measurements require a low-resistance ohm test (typically
using a test current $> 200\text{ mA}$). Nulling or zeroing the resistance of the test leads
is critical to ensure accurate low-value readings. Using an insulation test voltage would
damage low-voltage electronic equipment and fail to measure low resistances properly.
Question 5
A single-phase final circuit is protected by a Type B BS EN 60898 MCB. What is the
magnetic tripping threshold range of this protective device?
● A) $2 \times I_n$ to $3 \times I_n$
● B) $3 \times I_n$ to $5 \times I_n$
● C) $5 \times I_n$ to $10 \times I_n$
● D) $10 \times I_n$ to $20 \times I_n$
Correct Answer: B
Explanation: Type B MCBs operate instantaneous magnetic tripping between $3$ and
$5$ times their rated current ($I_n$). Type C operates between $5$ and $10 \times I_n$,
and Type D operates between $10$ and $20 \times I_n$. Misidentifying these
characteristics leads to improper device selection for high-inrush loads.
Question 6
Which of the following containment systems provides the highest degree of mechanical
protection and inherent electromagnetic shielding for cables?
● A) Rigid heavy-duty PVC conduit
● B) Perforated cable tray
● C) High-impact mini-trunking
● D) Heavy-gauge screwed steel conduit
Correct Answer: D
Explanation: Screwed steel conduit provides superior physical impact protection and
effective metallic shielding against electromagnetic interference (EMI). PVC conduit
, offers chemical resistance but minimal mechanical strength and no EMI shielding. Cable
trays support cables but do not enclose them fully.
Question 7
What is the primary function of a main protective bonding conductor in a TN-S earthing
system?
● A) To connect extraneous-conductive-parts to the main earthing terminal to limit
dangerous touch voltages
● B) To ensure that earth fault current flows exclusively through the neutral path
● C) To provide a low-resistance return path for circuit functional currents
● D) To automatically disconnect the circuit during an overload condition
Correct Answer: A
Explanation: Main protective bonding creates an equipotential zone within the structure
by connecting structural steel, water, and gas services to the main earthing terminal. It
does not carry functional load current or serve as an overcurrent tripping mechanism.
Students often mistake protective bonding conductors for circuit protective conductors
(CPCs).
Question 8
In a TN-C-S supply system (PME), what is the specific operational hazard associated with
a broken combined protective and neutral (PEN) conductor outside the premises?
● A) The upstream circuit breaker trips on overcurrent immediately
● B) Insulation resistance on all internal circuits degrades rapidly
● C) Connected metallic enclosures and bonded pipework can rise to dangerous
mains potential
● D) The supply frequency drops below tolerable operational limits
Correct Answer: C
Explanation: A broken PEN conductor in a PME system causes return load current to flow
through earth bonding paths, elevating exposed metalwork to high potentials. Standard
circuit protection devices will not detect or trip on an open PEN fault. This is why PME
