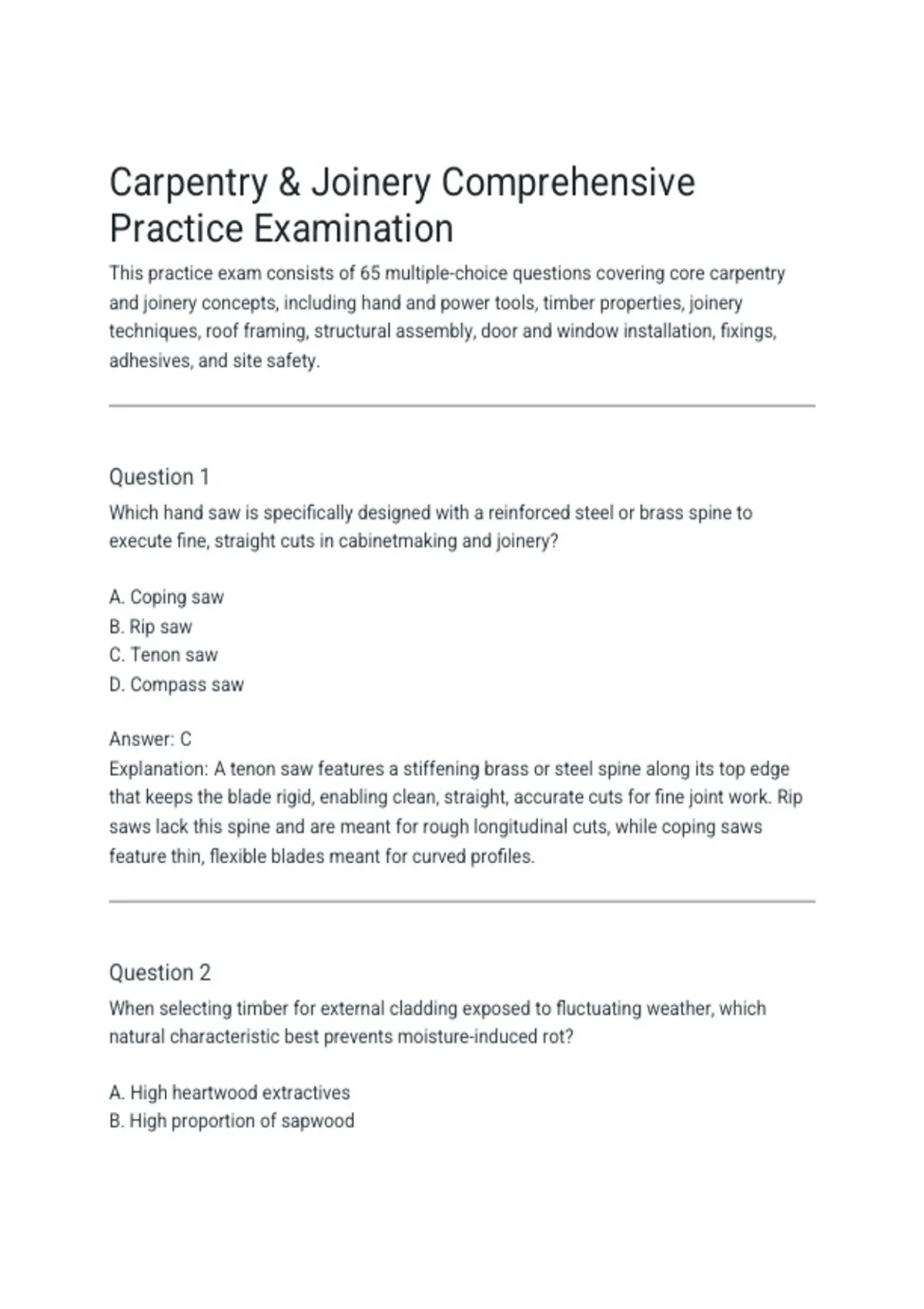

Carpentry & Joinery Comprehensive
Practice Examination
This practice exam consists of 65 multiple-choice questions covering core carpentry
and joinery concepts, including hand and power tools, timber properties, joinery
techniques, roof framing, structural assembly, door and window installation, fixings,
adhesives, and site safety.
Question 1
Which hand saw is specifically designed with a reinforced steel or brass spine to
execute fine, straight cuts in cabinetmaking and joinery?
A. Coping saw
B. Rip saw
C. Tenon saw
D. Compass saw
Answer: C
Explanation: A tenon saw features a stiffening brass or steel spine along its top edge
that keeps the blade rigid, enabling clean, straight, accurate cuts for fine joint work. Rip
saws lack this spine and are meant for rough longitudinal cuts, while coping saws
feature thin, flexible blades meant for curved profiles.
Question 2
When selecting timber for external cladding exposed to fluctuating weather, which
natural characteristic best prevents moisture-induced rot?
A. High heartwood extractives
B. High proportion of sapwood
,C. High moisture content at installation
D. Presence of wide growth rings
Answer: A
Explanation: Heartwood contains natural chemical extractives (tannins, resins)
produced as the tree matures, giving it superior natural resistance to fungal decay and
insect attack. Sapwood consists of active water-conducting cells that absorb moisture
readily, making it highly prone to rot.
Question 3
Which joint is best suited for connecting a horizontal drawer side to a drawer front to
withstand repeated pulling forces?
A. Butt joint
B. Housing joint
C. Half-lap joint
D. Dovetail joint
Answer: D
Explanation: The interlocking pins and tails of a dovetail joint create exceptional
mechanical resistance against tensile pull in the direction of the drawer opening. Butt
and housing joints rely almost entirely on glue or fasteners, which easily sheer under
cyclic pulling stress.
Question 4
In traditional cut roof construction, what is the primary purpose of a collar tie?
A. To support vertical wall loads
B. To resist rafter spread and uplift near the upper third of the roof span
C. To anchor the ceiling joists directly to the foundation
D. To support the soffit lining board
,Answer: B
Explanation: Collar ties are horizontal timber members installed in the upper third of
opposing rafters to prevent roof uplift from wind and stop rafters from separating under
stress. Purlins and struts handle vertical load support, not collar ties.
Question 5
When hanging an exterior solid timber door, what margin should typically be allowed
between the door edge and the frame to accommodate weather seals and thermal
expansion?
A. 1 mm
B. 3 mm
C. 8 mm
D. 12 mm
Answer: B
Explanation: A 3 mm (roughly 1/8 inch) margin along the top and sides allows smooth
operation while accounting for normal seasonal expansion and standard draught-
proofing strips. A 1 mm gap is too tight and causes binding during humid weather, while
gaps above 6 mm compromise weather sealing.
Question 6
Which type of adhesive cures through a chemical reaction with ambient moisture and
forms a strong, waterproof bond suitable for structural exterior woodwork?
A. PVA (Polyvinyl Acetate)
B. Urea-Formaldehyde
C. Animal Hide Glue
D. Polyurethane (PU)
Answer: D
Explanation: Polyurethane adhesives react directly with moisture in the timber and
, surrounding air to expand slightly and cure into an extremely strong, 100% waterproof
bond (D4 rating). Standard PVA breaks down under continuous outdoor moisture
exposure.
Question 7
According to standard workplace safety regulations for woodworking tools, what is the
mandatory action before changing a circular saw blade?
A. Isolate the tool from its power source
B. Engage the trigger lock switch
C. Retract the lower guard manually
D. Adjust the depth plate to maximum depth
Answer: A
Explanation: Complete isolation—unplugging the cord or removing the battery pack—is
the mandatory safety procedure to prevent accidental motor startup during blade
changes. Relying on trigger locks or guard retractors leaves the risk of accidental
electrical short circuits or trigger bumps.
Question 8
Which woodworking chisel is designed with thick, heavy side flanks to withstand force
from a mallet when cutting deep recesses?
A. Bevel-edge chisel
B. Parings chisel
C. Mortise chisel
D. Carving chisel
Answer: C
Explanation: Mortise chisels feature deep, square cross-sections and thick side walls to
leverage out waste material without flexing or breaking under heavy mallet strikes.
Bevel-edge chisels have tapered edges for tight corners and flex under heavy prying.
