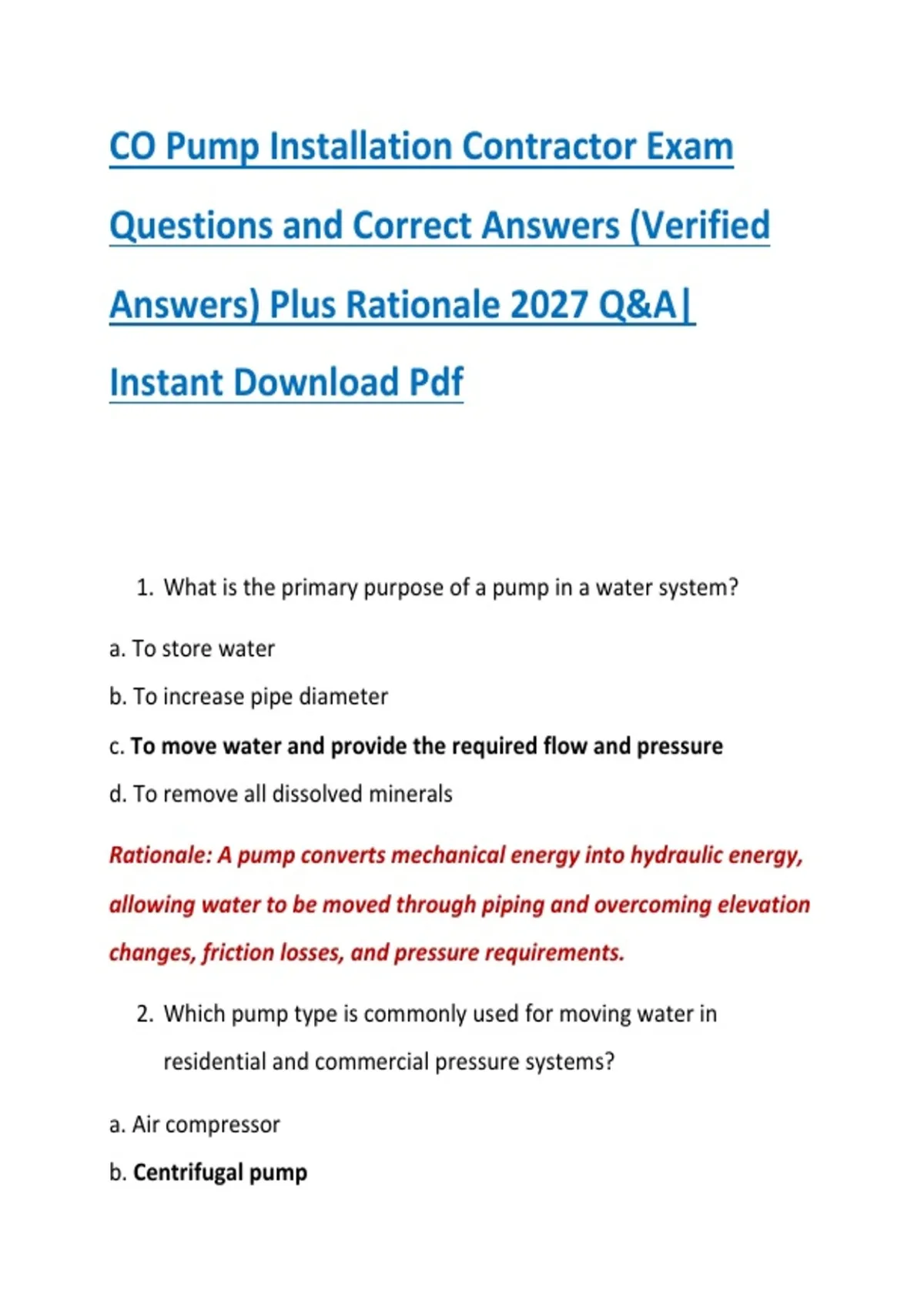

CO Pump Installation Contractor Exam
Questions and Correct Answers (Verified
Answers) Plus Rationale 2027 Q&A|
Instant Download Pdf
1. What is the primary purpose of a pump in a water system?
a. To store water
b. To increase pipe diameter
c. To move water and provide the required flow and pressure
d. To remove all dissolved minerals
Rationale: A pump converts mechanical energy into hydraulic energy,
allowing water to be moved through piping and overcoming elevation
changes, friction losses, and pressure requirements.
2. Which pump type is commonly used for moving water in
residential and commercial pressure systems?
a. Air compressor
b. Centrifugal pump
,c. Vacuum pump
d. Hydraulic ram only
Rationale: Centrifugal pumps are widely used because they can
efficiently provide the flow and pressure needed for many water
supply and pressure-boosting applications.
3. What does pump head generally represent?
a. The physical height of the pump
b. The diameter of the pump casing
c. The energy per unit weight of fluid expressed as an equivalent
height of fluid
d. The length of the electrical conduit
Rationale: Pump head is commonly expressed in feet or meters of fluid
and represents the pressure-producing capability of the pump after
accounting for system conditions.
4. What is cavitation in a pumping system?
a. Excessive electrical voltage
b. Pipe corrosion caused by oxygen
c. Formation and collapse of vapor bubbles within the liquid
d. Complete loss of electrical grounding
,Rationale: Cavitation occurs when local pressure falls below the
liquid's vapor pressure. The resulting vapor bubbles can collapse
violently, causing noise, vibration, erosion, and pump damage.
5. Which condition most directly increases the risk of cavitation?
a. Excessive discharge pressure only
b. Insufficient net positive suction head available (NPSHA)
c. Oversized electrical grounding conductor
d. Excessive pipe insulation
Rationale: A pump requires sufficient suction pressure to prevent the
liquid from vaporizing. If NPSHA is inadequate compared with the
pump's NPSH requirement, cavitation can occur.
6. What is the function of a pump suction pipe?
a. To discharge water from the system
b. To supply electrical power
c. To convey fluid from the source to the pump inlet
d. To regulate motor speed
Rationale: The suction piping connects the fluid source to the pump
inlet. Its design should minimize unnecessary friction losses and
conditions that could promote air entrainment or cavitation.
, 7. Why should unnecessary restrictions in pump suction piping be
avoided?
a. They always increase flow
b. They reduce motor temperature
c. They can increase suction losses and reduce pressure available at
the pump inlet
d. They eliminate the need for a check valve
Rationale: Restrictions create additional friction loss. Excessive suction
loss lowers inlet pressure and may cause poor pump performance or
cavitation.
8. What is the purpose of a check valve in a pump discharge system?
a. To increase motor horsepower
b. To help prevent reverse flow
c. To remove sediment
d. To measure water temperature
Rationale: A check valve permits flow in one direction while resisting
reverse flow. It can help protect the pump and associated equipment
from reverse rotation or pressure surges.
9. What is the purpose of a pressure tank in a typical water pressure
system?
