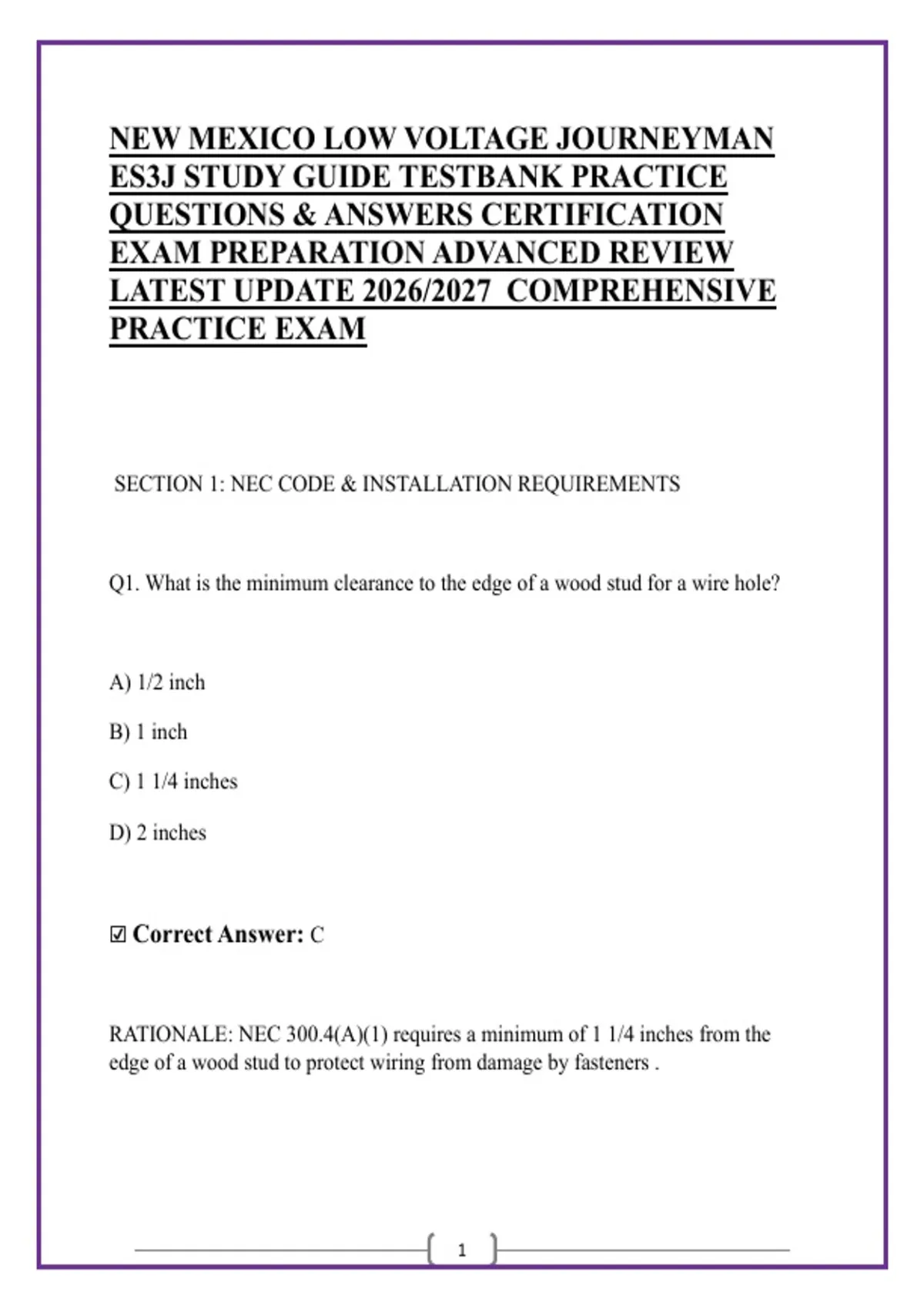

NEW MEXICO LOW VOLTAGE JOURNEYMAN
ES3J STUDY GUIDE TESTBANK PRACTICE
QUESTIONS & ANSWERS CERTIFICATION
EXAM PREPARATION ADVANCED REVIEW
LATEST UPDATE 2026/2027 COMPREHENSIVE
PRACTICE EXAM
SECTION 1: NEC CODE & INSTALLATION REQUIREMENTS
Q1. What is the minimum clearance to the edge of a wood stud for a wire hole?
A) 1/2 inch
B) 1 inch
C) 1 1/4 inches
D) 2 inches
☑ Correct Answer: C
RATIONALE: NEC 300.4(A)(1) requires a minimum of 1 1/4 inches from the
edge of a wood stud to protect wiring from damage by fasteners .
1
,Q2. What is the minimum separation between a Class 1 fire alarm circuit conductor
and a Class 2 or Class 3 circuit?
A) 1/8 inch
B) 1/4 inch
C) 1 inch
D) 2 inches
☑ Correct Answer: B
RATIONALE: A minimum separation of 1/4 inch is required between Class 1 and
Class 2/3 circuits to prevent interference and ensure safety .
Q3. What is the minimum required clearance between a receiving antenna and a
250-volt line not insulated?
A) 1 foot
B) 2 feet
C) 6 feet
D) 10 feet
2
,☑ Correct Answer: B
RATIONALE: Antennas must maintain a minimum clearance of 2 feet from other
conductors to prevent contact, arcing, and electrical hazards .
Q4. Communication cables shall have a voltage rating of not less than how many
volts?
A) 60 Volts
B) 150 Volts
C) 300 Volts
D) 600 Volts
☑ Correct Answer: C
RATIONALE: NEC 800.179 requires communication cables to have a minimum
insulation voltage rating of 300 volts to ensure safe separation from other circuits
and maintain insulation integrity .
3
, Q5. What is the minimum voltage rating for Type FPL cable when used in a fire
panel?
A) 150 Volts
B) 300 Volts
C) 600 Volts
D) 1000 Volts
☑ Correct Answer: B
RATIONALE: Type FPL (Fire Power-Limited) cable must have a minimum
insulation rating of 300 volts for use in fire alarm circuits .
Q6. What is the maximum voltage that coaxial cable is allowed to carry?
A) 30 Volts
B) 60 Volts
C) 120 Volts
D) 300 Volts
4
