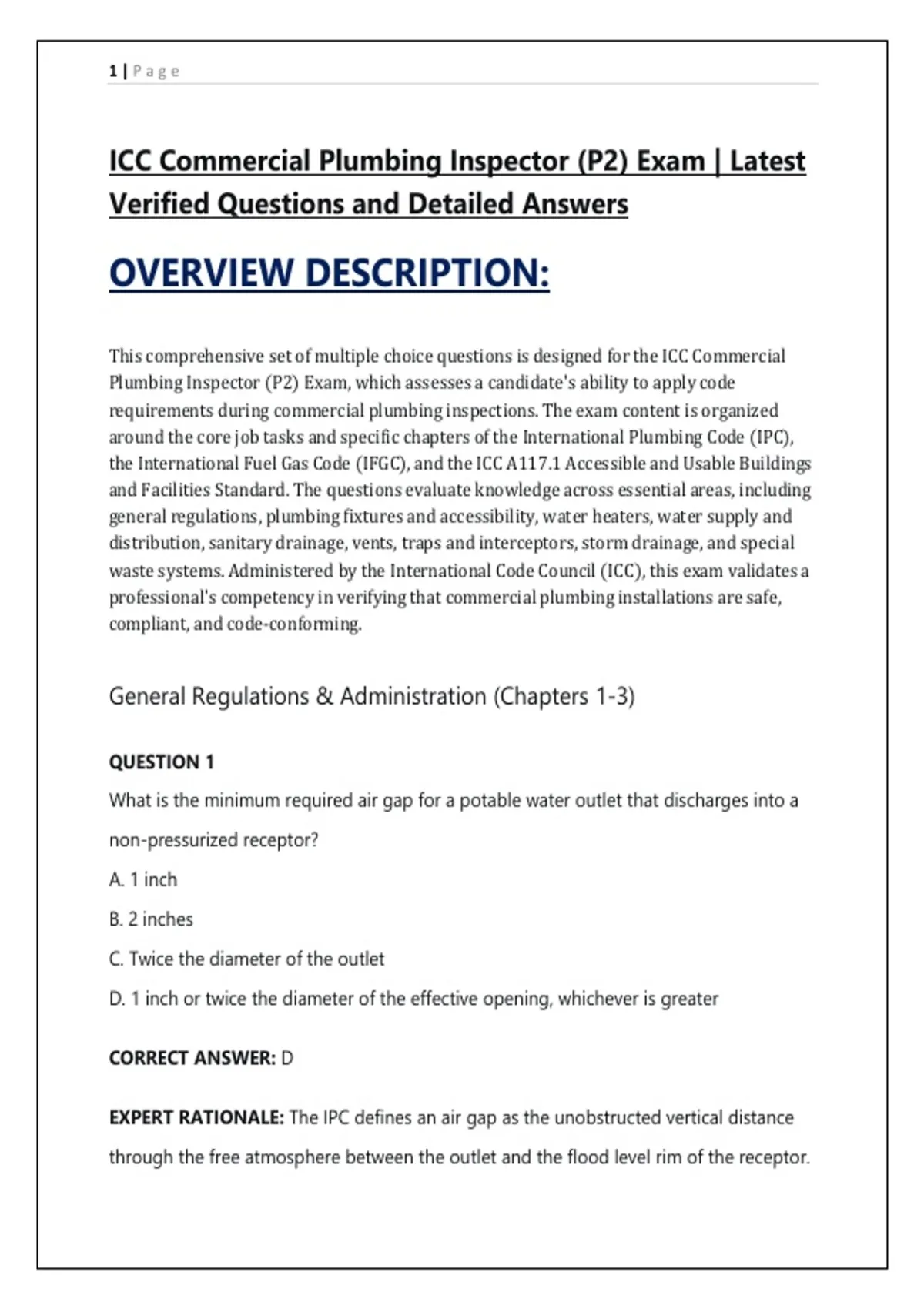

ICC Commercial Plumbing Inspector (P2) Exam | Latest
Verified Questions and Detailed Answers
OVERVIEW DESCRIPTION:
This comprehensive set of multiple choice questions is designed for the ICC Commercial
Plumbing Inspector (P2) Exam, which assesses a candidate's ability to apply code
requirements during commercial plumbing inspections. The exam content is organized
around the core job tasks and specific chapters of the International Plumbing Code (IPC),
the International Fuel Gas Code (IFGC), and the ICC A117.1 Accessible and Usable Buildings
and Facilities Standard. The questions evaluate knowledge across essential areas, including
general regulations, plumbing fixtures and accessibility, water heaters, water supply and
distribution, sanitary drainage, vents, traps and interceptors, storm drainage, and special
waste systems. Administered by the International Code Council (ICC), this exam validates a
professional's competency in verifying that commercial plumbing installations are safe,
compliant, and code-conforming.
General Regulations & Administration (Chapters 1-3)
QUESTION 1
What is the minimum required air gap for a potable water outlet that discharges into a
non-pressurized receptor?
A. 1 inch
B. 2 inches
C. Twice the diameter of the outlet
D. 1 inch or twice the diameter of the effective opening, whichever is greater
CORRECT ANSWER: D
EXPERT RATIONALE: The IPC defines an air gap as the unobstructed vertical distance
through the free atmosphere between the outlet and the flood level rim of the receptor.
,2|Page
This distance is strictly defined to prevent backflow and must be the greater of 1 inch or
twice the effective opening diameter.
QUESTION 2
Plastic piping that is to be installed through a wall sleeve that passes through a fire-
resistance-rated assembly must be protected by a firestop system that has an F rating of
not less than:
A. 30 minutes
B. 1 hour
C. The fire-resistance rating of the assembly
D. 2 hours
CORRECT ANSWER: C
EXPERT RATIONALE: The integrity of a fire-rated assembly must be maintained when
penetrated. The code requires that the through-penetration firestop system have an F
rating equal to the fire-resistance rating of the wall or floor assembly being penetrated.
QUESTION 3
Where a 4-inch cast iron soil pipe is installed horizontally, what is the minimum required
interval for pipe supports?
A. 4 feet
B. 5 feet
,3|Page
C. 10 feet
D. 12 feet
CORRECT ANSWER: B
EXPERT RATIONALE: Table 308.5 in the IPC specifies hanger spacing for various piping
materials. For horizontal cast iron pipe of 4 inches in size, the maximum spacing
between supports is 5 feet on center.
QUESTION 4
When inspecting a trench for a building sewer, you notice the bottom of the trench is
rocky and uneven. What is the required remedy?
A. The pipe can be laid directly on the rock if it is bedded in sand.
B. The trench must be over-excavated at least 6 inches and backfilled with compacted,
clean fill.
C. The pipe must be supported on concrete piers every 5 feet.
D. No remedy is required as long as the pipe has a high enough crush strength.
CORRECT ANSWER: B
EXPERT RATIONALE: To prevent point loading and potential pipe failure, the IPC
requires trenches with rocky or uneven bottoms to be over-excavated and brought to
grade with compacted, clean earth, sand, or gravel. This provides a uniform bedding for
the pipe.
, 4|Page
QUESTION 5
The term "flood level rim" is best defined as:
A. The top edge of a plumbing fixture from which water overflows.
B. The maximum water level in a water storage tank.
C. The point where a fixture drain connects to the branch drain.
D. The highest point of a roof drain.
CORRECT ANSWER: A
EXPERT RATIONALE: This is a key definition for cross-connection control. The flood
level rim is the point on a fixture, receptacle, or appurtenance where water will begin to
overflow or spill out, which is critical for determining the correct air gap.
QUESTION 6
A plumbing permit is generally required for which of the following?
A. Stopping a leak in a drain pipe.
B. Replacing a faucet washer.
C. The removal of a floor drain.
D. Clearing a stoppage in a fixture drain.
CORRECT ANSWER: C
EXPERT RATIONALE: The IPC requires permits for installation, alteration, repair, or
replacement of plumbing systems. The "removal" of a fixture or system component is an
alteration. Routine maintenance like clearing a stoppage or replacing a washer is
typically exempt from permit requirements.
