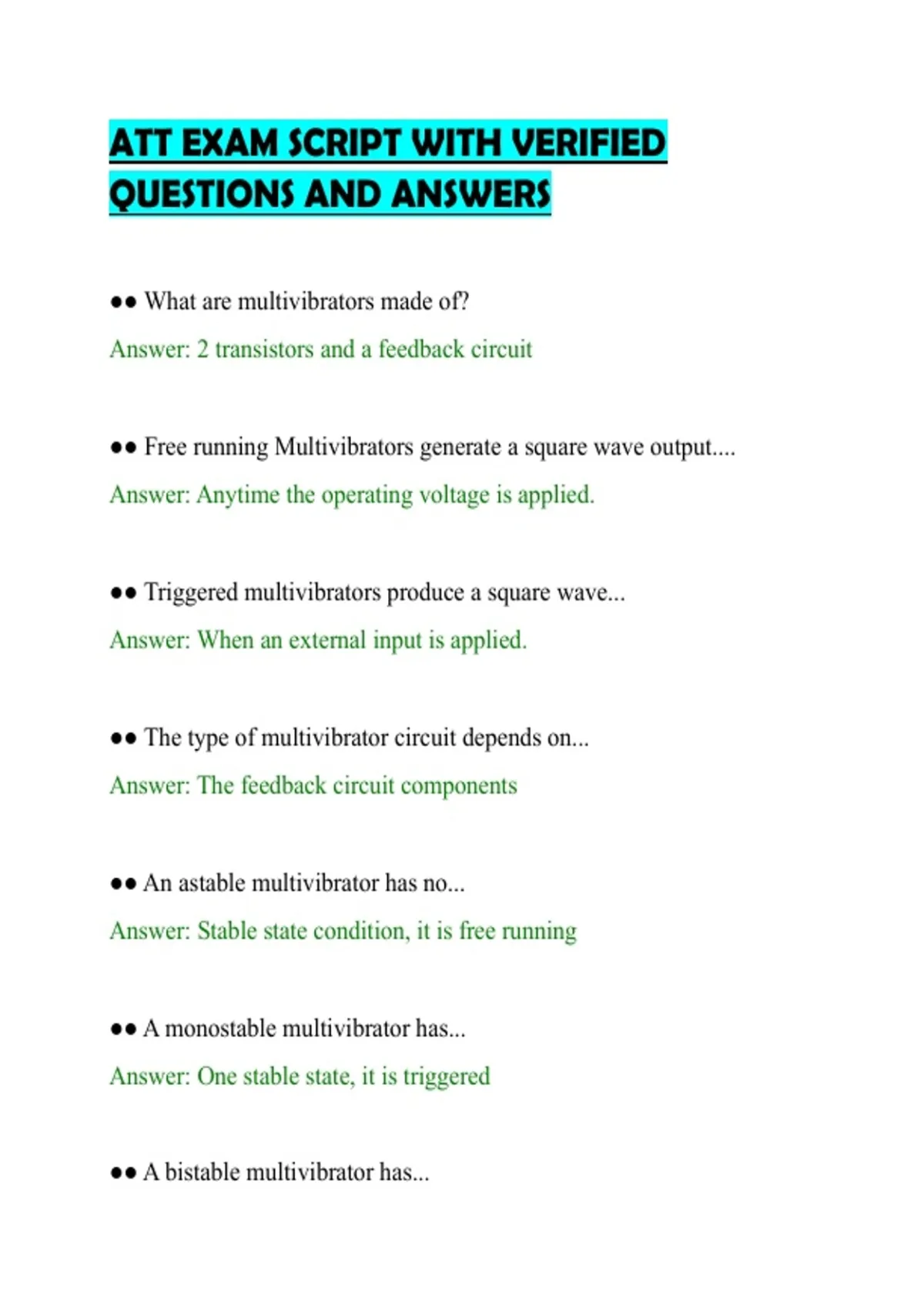

Document preview thumbnail
Preview 2 out of 12 pages
Exam (elaborations)

ATT EXAM SCRIPT WITH VERIFIED QUESTIONS AND ANSWERS

0.0
(0 reviews)
- sold
12 pages
2026/2027 Written for academic year
Institution ATT
Module ATT
Document preview thumbnail
Preview 2 out of 12 pages

ATT EXAM SCRIPT WITH VERIFIED QUESTIONS AND ANSWERS

Content preview

ATT EXAM SCRIPT WITH VERIFIED
QUESTIONS AND ANSWERS

●● What are multivibrators made of?
Answer: 2 transistors and a feedback circuit


●● Free running Multivibrators generate a square wave output....
Answer: Anytime the operating voltage is applied.


●● Triggered multivibrators produce a square wave...
Answer: When an external input is applied.


●● The type of multivibrator circuit depends on...
Answer: The feedback circuit components


●● An astable multivibrator has no...
Answer: Stable state condition, it is free running


●● A monostable multivibrator has...
Answer: One stable state, it is triggered


●● A bistable multivibrator has...

, Answer: Two stable states, it is triggered


●● A stable state is...
Answer: A steady condition(output stays the same)


●● What happens when power is applied in an Astable Multivibrator?
Answer: Q1 and Q2 switch between on or off.


●● What happens to Q1 and Q2 in a monostable multivibrator?
Answer: Q2 is on, Input pulse causes Q2 to turn off and Q1 to turn on


●● A transistor in a multivibrator is on in ____________
Answer: Saturation


●● A transistor in a multivibrator is off in __________
Answer: Cutoff


●● What happens to Q1 and Q2 in a bistable multivibrator?
Answer: Either Q1 or Q2 could be on, input pulse causes either to turn
off and the other to turn on.


●● How is an Astable multivibrator identified?
