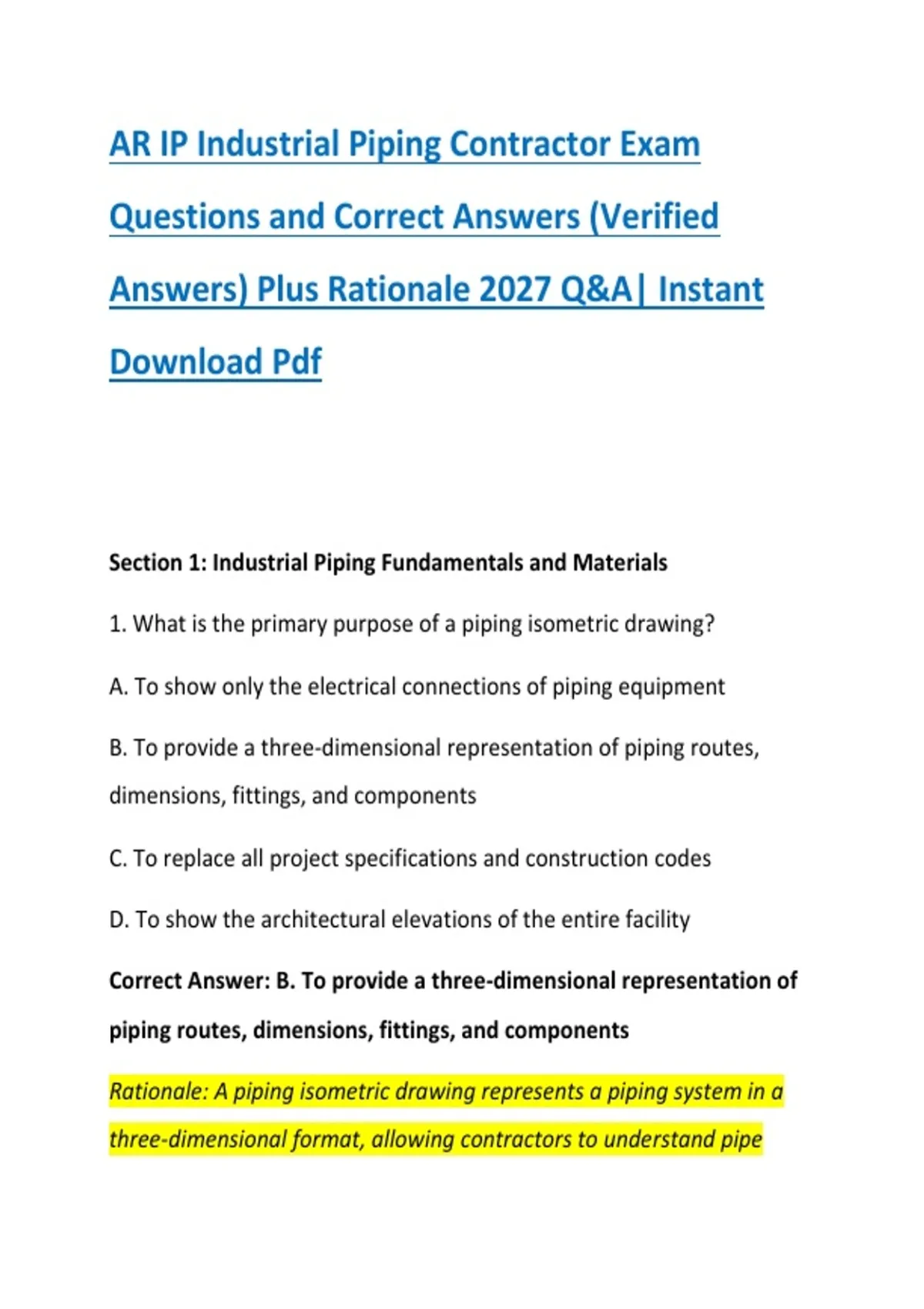

AR IP Industrial Piping Contractor Exam
Questions and Correct Answers (Verified
Answers) Plus Rationale 2027 Q&A| Instant
Download Pdf
Section 1: Industrial Piping Fundamentals and Materials
1. What is the primary purpose of a piping isometric drawing?
A. To show only the electrical connections of piping equipment
B. To provide a three-dimensional representation of piping routes,
dimensions, fittings, and components
C. To replace all project specifications and construction codes
D. To show the architectural elevations of the entire facility
Correct Answer: B. To provide a three-dimensional representation of
piping routes, dimensions, fittings, and components
Rationale: A piping isometric drawing represents a piping system in a
three-dimensional format, allowing contractors to understand pipe
,routing, dimensions, elevations, fittings, valves, and connection points.
Isometrics are commonly used for fabrication, material takeoffs,
installation planning, and field verification. They supplement, rather
than replace, project specifications, piping plans, and applicable codes.
2. Which material is commonly selected for industrial piping systems
handling corrosive fluids?
A. Unprotected carbon steel
B. Ordinary cast iron for every application
C. Stainless steel or another corrosion-resistant material selected for
the service
D. Uncoated structural steel regardless of chemical compatibility
Correct Answer: C. Stainless steel or another corrosion-resistant
material selected for the service
Rationale: Stainless steel and other corrosion-resistant alloys are
frequently used where the fluid may attack ordinary carbon steel. The
correct material depends on chemical composition, temperature,
pressure, concentration, and corrosion mechanisms. Stainless steel is
not universally resistant to every chemical, so material compatibility
must be verified against engineering specifications and applicable
standards.
,3. What does the nominal pipe size (NPS) primarily identify?
A. The exact outside diameter of every pipe size
B. A standardized nominal designation used to identify pipe size
C. The maximum allowable operating pressure
D. The exact inside diameter regardless of wall thickness
Correct Answer: B. A standardized nominal designation used to
identify pipe size
Rationale: NPS is a standardized nominal size designation used for
identifying pipe dimensions. It does not always equal the actual outside
or inside diameter. For a given NPS, the outside diameter is
standardized over many size ranges, while the inside diameter varies
with wall thickness or schedule.
4. What is the primary function of a pipe flange?
A. To reduce the temperature of the fluid
B. To increase the fluid's chemical concentration
C. To provide a detachable connection between piping components
D. To eliminate the need for pipe supports
Correct Answer: C. To provide a detachable connection between
piping components
, Rationale: Flanges allow piping components, valves, equipment, and
pipe sections to be connected and disconnected for inspection,
maintenance, or replacement. A proper flanged joint requires
compatible flange ratings and facing, suitable gaskets, correct bolting,
and controlled tightening procedures. Flanges do not replace the need
for adequate supports or thermal movement provisions.
5. What is the primary purpose of a pipe reducer?
A. To permanently close the end of a pipe
B. To change the pipe diameter between two sections
C. To prevent all thermal expansion
D. To measure fluid pressure
Correct Answer: B. To change the pipe diameter between two sections
Rationale: A reducer connects pipes of different diameters. It may be
concentric, with a common centerline, or eccentric, with offset
centerlines. The selection depends on the piping arrangement, fluid
characteristics, drainage requirements, and equipment connections.
Reducers must also be suitable for the design pressure, temperature,
and material requirements.
6. Which pipe schedule characteristic is generally associated with a
thicker wall when comparing pipes of the same NPS?
Questions and Correct Answers (Verified
Answers) Plus Rationale 2027 Q&A| Instant
Download Pdf
Section 1: Industrial Piping Fundamentals and Materials
1. What is the primary purpose of a piping isometric drawing?
A. To show only the electrical connections of piping equipment
B. To provide a three-dimensional representation of piping routes,
dimensions, fittings, and components
C. To replace all project specifications and construction codes
D. To show the architectural elevations of the entire facility
Correct Answer: B. To provide a three-dimensional representation of
piping routes, dimensions, fittings, and components
Rationale: A piping isometric drawing represents a piping system in a
three-dimensional format, allowing contractors to understand pipe
,routing, dimensions, elevations, fittings, valves, and connection points.
Isometrics are commonly used for fabrication, material takeoffs,
installation planning, and field verification. They supplement, rather
than replace, project specifications, piping plans, and applicable codes.
2. Which material is commonly selected for industrial piping systems
handling corrosive fluids?
A. Unprotected carbon steel
B. Ordinary cast iron for every application
C. Stainless steel or another corrosion-resistant material selected for
the service
D. Uncoated structural steel regardless of chemical compatibility
Correct Answer: C. Stainless steel or another corrosion-resistant
material selected for the service
Rationale: Stainless steel and other corrosion-resistant alloys are
frequently used where the fluid may attack ordinary carbon steel. The
correct material depends on chemical composition, temperature,
pressure, concentration, and corrosion mechanisms. Stainless steel is
not universally resistant to every chemical, so material compatibility
must be verified against engineering specifications and applicable
standards.
,3. What does the nominal pipe size (NPS) primarily identify?
A. The exact outside diameter of every pipe size
B. A standardized nominal designation used to identify pipe size
C. The maximum allowable operating pressure
D. The exact inside diameter regardless of wall thickness
Correct Answer: B. A standardized nominal designation used to
identify pipe size
Rationale: NPS is a standardized nominal size designation used for
identifying pipe dimensions. It does not always equal the actual outside
or inside diameter. For a given NPS, the outside diameter is
standardized over many size ranges, while the inside diameter varies
with wall thickness or schedule.
4. What is the primary function of a pipe flange?
A. To reduce the temperature of the fluid
B. To increase the fluid's chemical concentration
C. To provide a detachable connection between piping components
D. To eliminate the need for pipe supports
Correct Answer: C. To provide a detachable connection between
piping components
, Rationale: Flanges allow piping components, valves, equipment, and
pipe sections to be connected and disconnected for inspection,
maintenance, or replacement. A proper flanged joint requires
compatible flange ratings and facing, suitable gaskets, correct bolting,
and controlled tightening procedures. Flanges do not replace the need
for adequate supports or thermal movement provisions.
5. What is the primary purpose of a pipe reducer?
A. To permanently close the end of a pipe
B. To change the pipe diameter between two sections
C. To prevent all thermal expansion
D. To measure fluid pressure
Correct Answer: B. To change the pipe diameter between two sections
Rationale: A reducer connects pipes of different diameters. It may be
concentric, with a common centerline, or eccentric, with offset
centerlines. The selection depends on the piping arrangement, fluid
characteristics, drainage requirements, and equipment connections.
Reducers must also be suitable for the design pressure, temperature,
and material requirements.
6. Which pipe schedule characteristic is generally associated with a
thicker wall when comparing pipes of the same NPS?
