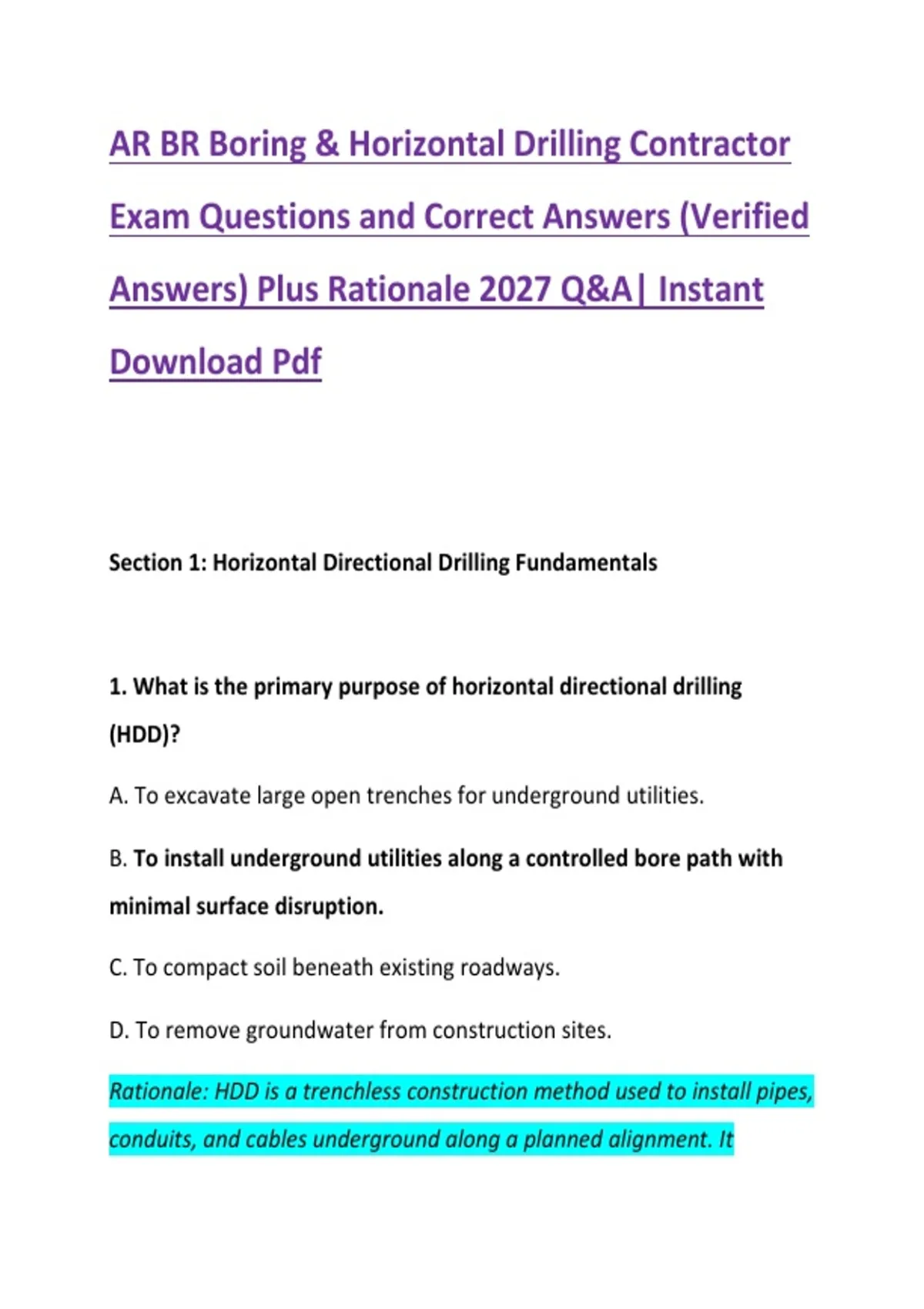

AR BR Boring & Horizontal Drilling Contractor
Exam Questions and Correct Answers (Verified
Answers) Plus Rationale 2027 Q&A| Instant
Download Pdf
Section 1: Horizontal Directional Drilling Fundamentals
1. What is the primary purpose of horizontal directional drilling
(HDD)?
A. To excavate large open trenches for underground utilities.
B. To install underground utilities along a controlled bore path with
minimal surface disruption.
C. To compact soil beneath existing roadways.
D. To remove groundwater from construction sites.
Rationale: HDD is a trenchless construction method used to install pipes,
conduits, and cables underground along a planned alignment. It
,minimizes surface excavation and is useful beneath roads, waterways,
and other obstacles.
2. Which component of an HDD system provides the force needed to
advance the drill string?
A. Mud recycling tank.
B. Pipe fusion machine.
C. Drilling rig.
D. Survey tripod.
Rationale: The drilling rig supplies thrust, rotational torque, and
pullback force to operate the drill string. Other equipment supports
drilling, tracking, and installation but does not provide the primary
mechanical force.
3. What is the main function of the pilot bit?
A. To compact the finished bore.
B. To measure pipe wall thickness.
C. To collect drilling fluid.
D. To create the initial bore along the planned alignment.
,Rationale: The pilot bit creates the first hole through the ground. Its
design and steering characteristics allow the operator to control the
bore's direction and depth before enlargement and product installation.
4. What information does an HDD locating transmitter typically
provide?
A. Drilling fluid viscosity.
B. Drill head location, depth, pitch, and orientation.
C. Product pipe pressure rating.
D. Soil moisture throughout the entire site.
Rationale: A transmitter sends information to a compatible locating
receiver, helping the operator determine the drill head's position and
orientation. Tracking supports accurate steering but does not replace
utility locating or verification.
5. Which documents establish the intended bore alignment and
profile?
A. Equipment maintenance logs.
B. Payroll records.
C. Approved construction plans and bore profile.
D. Material delivery receipts.
, Rationale: Approved plans identify the intended route, entry and exit
locations, required elevations, and critical crossings. The contractor
must compare these requirements with actual field conditions before
and during drilling.
6. What is a pilot bore?
A. The final enlarged bore.
B. An excavation used to expose utilities.
C. A storage area for drill rods.
D. The initial guided hole created before enlargement or product
installation.
Rationale: The pilot bore establishes the initial alignment and profile. It
is commonly followed by backreaming to enlarge the hole before pulling
the product pipe or conduit into place.
7. Why is the entry angle important in HDD?
A. It determines drilling fluid color.
B. It eliminates the need for depth monitoring.
C. It affects the initial bore trajectory, curvature, and equipment
setup.
D. It determines the product pipe's electrical resistance.
