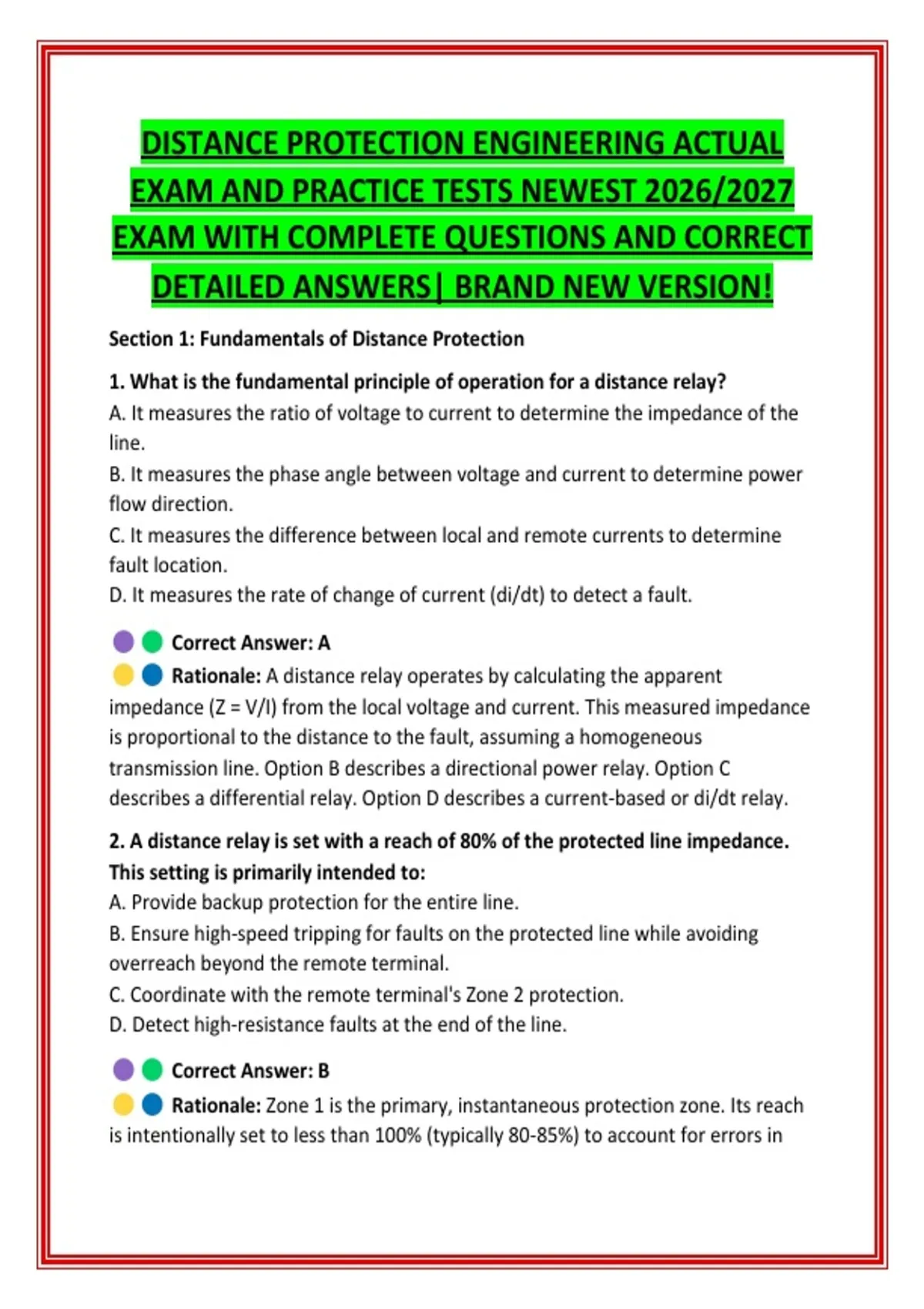

DISTANCE PROTECTION ENGINEERING ACTUAL
EXAM AND PRACTICE TESTS NEWEST 2026/2027
EXAM WITH COMPLETE QUESTIONS AND CORRECT
DETAILED ANSWERS| BRAND NEW VERSION!
Section 1: Fundamentals of Distance Protection
1. What is the fundamental principle of operation for a distance relay?
A. It measures the ratio of voltage to current to determine the impedance of the
line.
B. It measures the phase angle between voltage and current to determine power
flow direction.
C. It measures the difference between local and remote currents to determine
fault location.
D. It measures the rate of change of current (di/dt) to detect a fault.
Correct Answer: A
Rationale: A distance relay operates by calculating the apparent
impedance (Z = V/I) from the local voltage and current. This measured impedance
is proportional to the distance to the fault, assuming a homogeneous
transmission line. Option B describes a directional power relay. Option C
describes a differential relay. Option D describes a current-based or di/dt relay.
2. A distance relay is set with a reach of 80% of the protected line impedance.
This setting is primarily intended to:
A. Provide backup protection for the entire line.
B. Ensure high-speed tripping for faults on the protected line while avoiding
overreach beyond the remote terminal.
C. Coordinate with the remote terminal's Zone 2 protection.
D. Detect high-resistance faults at the end of the line.
Correct Answer: B
Rationale: Zone 1 is the primary, instantaneous protection zone. Its reach
is intentionally set to less than 100% (typically 80-85%) to account for errors in
,instrument transformers, line impedance calculations, and relay measurement,
ensuring it does not overreach and trip for a fault on the adjacent line section.
3. Which of the following is NOT a typical input to a modern numerical distance
relay?
A. Three-phase voltages from a Capacitor Voltage Transformer (CVT).
B. Three-phase currents from a Current Transformer (CT).
C. A digital signal from a remote relay via a communication channel.
D. A pressure signal from a SF6 gas density monitor on the circuit breaker.
Correct Answer: D
Rationale: While a numerical relay might receive a breaker status
(open/closed), a direct SF6 gas pressure signal is typically sent to the SCADA
system or a local control panel, not directly to the distance protection algorithm
for its primary tripping logic. Voltages, currents, and communication signals are
core inputs.
4. In a distance relay, the "reach" is defined as:
A. The maximum time delay for a trip signal.
B. The physical length of the transmission line.
C. The impedance value that defines the boundary of a protection zone.
D. The sensitivity of the relay to high-resistance faults.
Correct Answer: C
Rationale: Reach is an impedance setting (in ohms) that defines the locus
of points on the R-X diagram that the relay will trip for. It directly corresponds to
the electrical length of the line the zone is intended to protect.
5. The characteristic of a distance relay is often plotted on an R-X diagram. What
does the 'X' axis represent?
A. Resistance
B. Reactance
C. Impedance magnitude
D. Phase angle
Correct Answer: B
Rationale: The R-X diagram is a complex plane where the horizontal axis is
,Resistance (R) and the vertical axis is Reactance (X). The apparent impedance
measured by the relay is plotted as a vector on this plane.
6. Which of the following is a primary advantage of distance protection over
overcurrent protection for transmission lines?
A. It is less expensive to implement.
B. It is inherently directional and its reach is less affected by changes in source
impedance.
C. It does not require communication channels for any of its zones.
D. It is simpler to set and coordinate.
Correct Answer: B
Rationale: Distance protection's reach is primarily a function of the line
impedance, not the source impedance. This makes it more stable and predictable
for long transmission lines where source impedance can vary significantly. It is
also inherently directional, which simplifies coordination.
7. The term "apparent impedance" refers to the impedance calculated by the
relay. For a bolted three-phase fault at the relay location, the apparent
impedance would be:
A. Infinite.
B. Equal to the source impedance.
C. Nearly zero.
D. Equal to the line impedance.
Correct Answer: C
Rationale: For a bolted fault (zero fault resistance) at the relay bus, the
voltage collapses to near zero while a very large current flows. The calculated
impedance Z = V/I would therefore be a very small number, approaching zero.
8. What is the purpose of a "mho" characteristic in a distance relay?
A. It provides a circular trip characteristic that passes through the origin of the R-X
diagram, making it inherently directional.
B. It provides a rectangular trip characteristic for better coverage of resistive
faults.
C. It provides a straight-line characteristic for reactance-only measurement.
, D. It provides a lens-shaped characteristic for better performance during power
swings.
Correct Answer: A
Rationale: The mho characteristic is a circle that passes through the origin.
This means the relay will only operate for impedances in the forward direction
(typically the first quadrant of the R-X diagram), making it a naturally directional
element.
9. SATA: Which of the following factors can introduce error in the apparent
impedance measured by a distance relay? (Select all that apply)
A. CT and VT ratio and phase angle errors.
B. Line shunt capacitance.
C. Fault resistance (arc resistance and ground resistance).
D. Mutual coupling from a parallel line.
E. The relay's processing speed.
Correct Answers: A, B, C, D
Rationale: CT/VT errors (A) directly scale the V and I inputs. Shunt
capacitance (B) introduces a non-linear impedance profile, especially on long
lines. Fault resistance (C) adds a purely resistive component to the measured
impedance, which can cause under-reach or overreach. Mutual coupling (D) from
a parallel line induces a voltage in the faulted line, corrupting the measured
impedance. Relay processing speed (E) is not a source of measurement error.
10. In a quadrilateral distance characteristic, the resistive reach (R) is set
separately from the reactive reach (X). What is the primary reason for this?
A. To provide better coverage for high-resistance faults, such as those with
significant arc resistance.
B. To make the relay more stable during power swings.
C. To simplify coordination with transformer differential protection.
D. To reduce the cost of the relay hardware.
Correct Answer: A
Rationale: A quadrilateral characteristic allows independent setting of the
resistive and reactive boundaries. The resistive reach (R) can be extended to cover
