FINAL REVIEW NEIEP 600 LATEST EXAM UPDATE
2024/2025 WITH QUESTIONS ,CORRECT ANSWERS AND
WELL LABELLED ILLUSTRATION DIAGRAMS

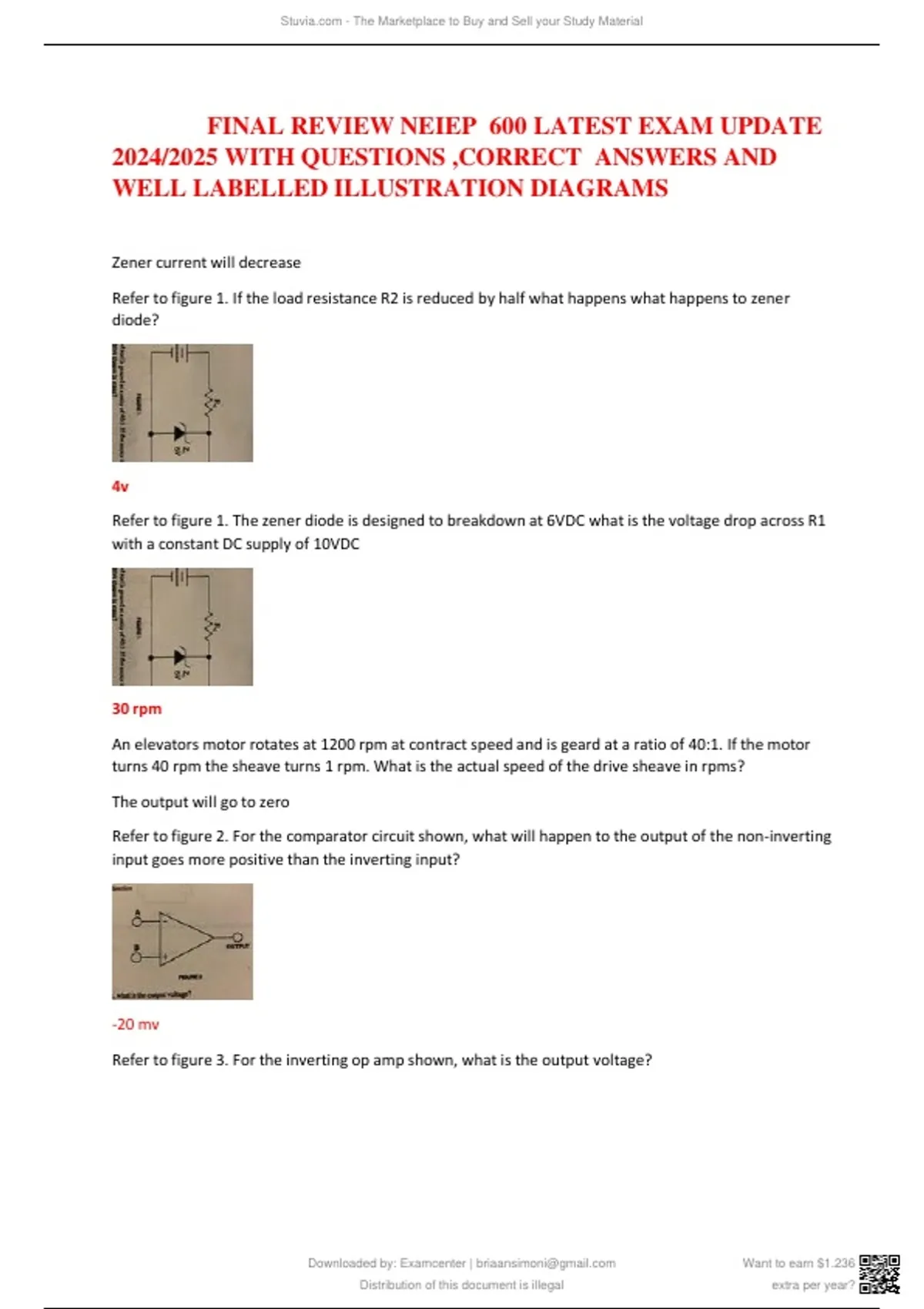

Zener current will decrease
Refer to figure 1. If the load resistance R2 is reduced by half what happens what happens to zener
diode?
4v
Refer to figure 1. The zener diode is designed to breakdown at 6VDC what is the voltage drop across R1
with a constant DC supply of 10VDC
30 rpm
An elevators motor rotates at 1200 rpm at contract speed and is geard at a ratio of 40:1. If the motor
turns 40 rpm the sheave turns 1 rpm. What is the actual speed of the drive sheave in rpms?
The output will go to zero
Refer to figure 2. For the comparator circuit shown, what will happen to the output of the non-inverting
input goes more positive than the inverting input?
-20 mv
Refer to figure 3. For the inverting op amp shown, what is the output voltage?
