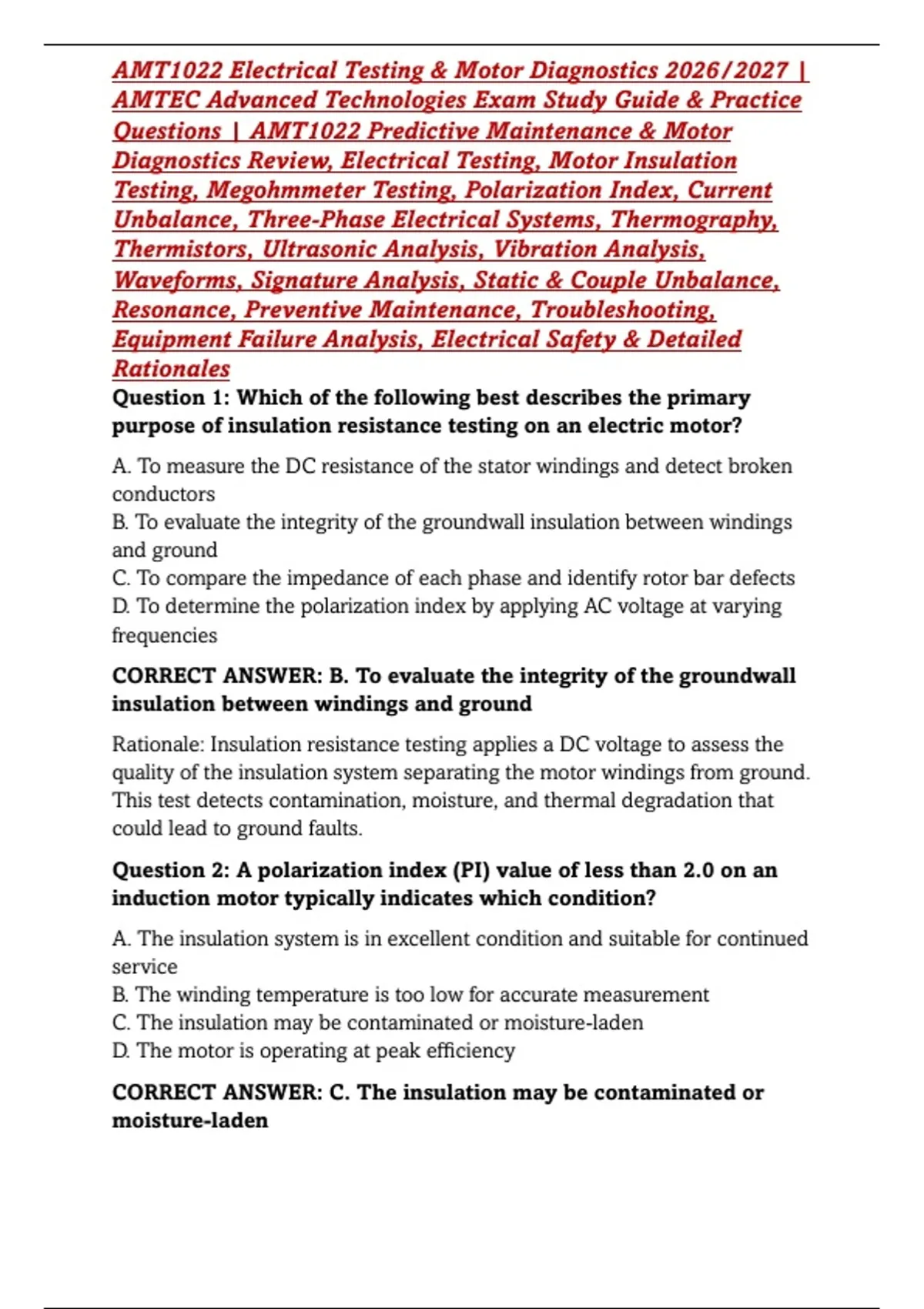

AMT1022 Electrical Testing & Motor Diagnostics 2026/2027 |
AMTEC Advanced Technologies Exam Study Guide & Practice
Questions | AMT1022 Predictive Maintenance & Motor
Diagnostics Review, Electrical Testing, Motor Insulation
Testing, Megohmmeter Testing, Polarization Index, Current
Unbalance, Three-Phase Electrical Systems, Thermography,
Thermistors, Ultrasonic Analysis, Vibration Analysis,
Waveforms, Signature Analysis, Static & Couple Unbalance,
Resonance, Preventive Maintenance, Troubleshooting,
Equipment Failure Analysis, Electrical Safety & Detailed
Rationales
Question 1: Which of the following best describes the primary
purpose of insulation resistance testing on an electric motor?
A. To measure the DC resistance of the stator windings and detect broken
conductors
B. To evaluate the integrity of the groundwall insulation between windings
and ground
C. To compare the impedance of each phase and identify rotor bar defects
D. To determine the polarization index by applying AC voltage at varying
frequencies
CORRECT ANSWER: B. To evaluate the integrity of the groundwall
insulation between windings and ground
Rationale: Insulation resistance testing applies a DC voltage to assess the
quality of the insulation system separating the motor windings from ground.
This test detects contamination, moisture, and thermal degradation that
could lead to ground faults.
Question 2: A polarization index (PI) value of less than 2.0 on an
induction motor typically indicates which condition?
A. The insulation system is in excellent condition and suitable for continued
service
B. The winding temperature is too low for accurate measurement
C. The insulation may be contaminated or moisture-laden
D. The motor is operating at peak efficiency
CORRECT ANSWER: C. The insulation may be contaminated or
moisture-laden
,Rationale: A polarization index below 2.0 suggests the insulation system
has absorbed moisture or contaminants that prevent proper charge storage,
indicating degraded insulation quality.
Question 3: Which test is specifically designed to detect turn-to-
turn insulation weaknesses within motor windings?
A. Winding resistance test
B. Insulation resistance test
C. Surge comparison test
D. Vibration analysis
CORRECT ANSWER: C. Surge comparison test
Rationale: The surge comparison test applies high-voltage pulses to detect
differences in inductance between phases, which reveal turn-to-turn shorts
or weak insulation that other tests may miss.
Question 4: When performing a winding resistance test on a three-
phase motor, what percentage of variance between phases indicates
a potential problem for random windings?
A. Any variance greater than 0.5%
B. More than 2% variance
C. More than 5% variance
D. More than 10% variance
CORRECT ANSWER: B. More than 2% variance
Rationale: According to industry standards, random windings with more
than 2% variance in phase-to-phase resistance indicate a potential issue
such as a dropped turn, shorted turns, or poor connections.
Question 5: Vibration analysis is particularly useful for diagnosing
which of the following motor problems?
A. Turn-to-turn insulation shorts
B. Bearing failure and mechanical imbalance
C. Groundwall insulation degradation
D. Polarization index reduction
CORRECT ANSWER: B. Bearing failure and mechanical imbalance
,Rationale: Vibration analysis detects mechanical and electromagnetic
problems in motors, including bearing failure, mechanical imbalance,
structural resonance, and foundation issues.
Question 6: What does a current unbalance exceeding 10%
typically indicate in a three-phase motor?
A. The motor is operating at optimal efficiency
B. The motor will have reduced life due to increased heating
C. The insulation resistance is too high
D. The surge test will automatically pass
CORRECT ANSWER: B. The motor will have reduced life due to
increased heating
Rationale: Current unbalance greater than 10% leads to excessive heating
in motor windings, which accelerates insulation degradation and
significantly reduces motor life.
Question 7: Which predictive maintenance technology uses infrared
cameras to detect temperature variations in electrical equipment?
A. Ultrasonic analysis
B. Vibration analysis
C. Thermography
D. Motor current signature analysis
CORRECT ANSWER: C. Thermography
Rationale: Infrared thermography cameras are used to check temperatures
and identify abnormal heating patterns in electrical motors and associated
equipment, revealing loose connections or overload conditions.
Question 8: What is the recommended minimum polarization index
value for induction motors?
A. 1.0
B. 1.5
C. 2.0
D. 3.0
CORRECT ANSWER: C. 2.0
, Rationale: The recommended minimum polarization index for induction
motors is 2.0, with values below this threshold indicating potential
insulation contamination or moisture.
Question 9: Which of the following conditions would NOT be
detected by an insulation resistance test?
A. Moisture contamination in the insulation system
B. Surface contamination on winding insulation
C. Turn-to-turn short circuits within a coil
D. Thermal degradation of groundwall insulation
CORRECT ANSWER: C. Turn-to-turn short circuits within a coil
Rationale: Insulation resistance testing evaluates groundwall insulation
integrity but cannot detect turn-to-turn shorts, which require surge
comparison testing or specialized winding analysis.
Question 10: In vibration analysis, what does the term "resonance"
refer to?
A. The frequency at which a machine's vibration signature becomes stable
B. A condition where rotational speed approaches the object's natural
frequency
C. The point at which vibration amplitude decreases to zero
D. The harmonic frequency of the power supply
CORRECT ANSWER: B. A condition where rotational speed
approaches the object's natural frequency
Rationale: Resonance occurs when the speed of rotation approaches a
machine's natural frequency, causing amplified vibration amplitudes that
can lead to rapid equipment damage.
Question 11: Which type of unbalance exists when the weight
distribution axis is parallel to but does not lie on the axis of
rotation?
A. Couple unbalance
B. Dynamic unbalance
C. Static unbalance
D. Quasi-static unbalance
CORRECT ANSWER: C. Static unbalance
AMTEC Advanced Technologies Exam Study Guide & Practice
Questions | AMT1022 Predictive Maintenance & Motor
Diagnostics Review, Electrical Testing, Motor Insulation
Testing, Megohmmeter Testing, Polarization Index, Current
Unbalance, Three-Phase Electrical Systems, Thermography,
Thermistors, Ultrasonic Analysis, Vibration Analysis,
Waveforms, Signature Analysis, Static & Couple Unbalance,
Resonance, Preventive Maintenance, Troubleshooting,
Equipment Failure Analysis, Electrical Safety & Detailed
Rationales
Question 1: Which of the following best describes the primary
purpose of insulation resistance testing on an electric motor?
A. To measure the DC resistance of the stator windings and detect broken
conductors
B. To evaluate the integrity of the groundwall insulation between windings
and ground
C. To compare the impedance of each phase and identify rotor bar defects
D. To determine the polarization index by applying AC voltage at varying
frequencies
CORRECT ANSWER: B. To evaluate the integrity of the groundwall
insulation between windings and ground
Rationale: Insulation resistance testing applies a DC voltage to assess the
quality of the insulation system separating the motor windings from ground.
This test detects contamination, moisture, and thermal degradation that
could lead to ground faults.
Question 2: A polarization index (PI) value of less than 2.0 on an
induction motor typically indicates which condition?
A. The insulation system is in excellent condition and suitable for continued
service
B. The winding temperature is too low for accurate measurement
C. The insulation may be contaminated or moisture-laden
D. The motor is operating at peak efficiency
CORRECT ANSWER: C. The insulation may be contaminated or
moisture-laden
,Rationale: A polarization index below 2.0 suggests the insulation system
has absorbed moisture or contaminants that prevent proper charge storage,
indicating degraded insulation quality.
Question 3: Which test is specifically designed to detect turn-to-
turn insulation weaknesses within motor windings?
A. Winding resistance test
B. Insulation resistance test
C. Surge comparison test
D. Vibration analysis
CORRECT ANSWER: C. Surge comparison test
Rationale: The surge comparison test applies high-voltage pulses to detect
differences in inductance between phases, which reveal turn-to-turn shorts
or weak insulation that other tests may miss.
Question 4: When performing a winding resistance test on a three-
phase motor, what percentage of variance between phases indicates
a potential problem for random windings?
A. Any variance greater than 0.5%
B. More than 2% variance
C. More than 5% variance
D. More than 10% variance
CORRECT ANSWER: B. More than 2% variance
Rationale: According to industry standards, random windings with more
than 2% variance in phase-to-phase resistance indicate a potential issue
such as a dropped turn, shorted turns, or poor connections.
Question 5: Vibration analysis is particularly useful for diagnosing
which of the following motor problems?
A. Turn-to-turn insulation shorts
B. Bearing failure and mechanical imbalance
C. Groundwall insulation degradation
D. Polarization index reduction
CORRECT ANSWER: B. Bearing failure and mechanical imbalance
,Rationale: Vibration analysis detects mechanical and electromagnetic
problems in motors, including bearing failure, mechanical imbalance,
structural resonance, and foundation issues.
Question 6: What does a current unbalance exceeding 10%
typically indicate in a three-phase motor?
A. The motor is operating at optimal efficiency
B. The motor will have reduced life due to increased heating
C. The insulation resistance is too high
D. The surge test will automatically pass
CORRECT ANSWER: B. The motor will have reduced life due to
increased heating
Rationale: Current unbalance greater than 10% leads to excessive heating
in motor windings, which accelerates insulation degradation and
significantly reduces motor life.
Question 7: Which predictive maintenance technology uses infrared
cameras to detect temperature variations in electrical equipment?
A. Ultrasonic analysis
B. Vibration analysis
C. Thermography
D. Motor current signature analysis
CORRECT ANSWER: C. Thermography
Rationale: Infrared thermography cameras are used to check temperatures
and identify abnormal heating patterns in electrical motors and associated
equipment, revealing loose connections or overload conditions.
Question 8: What is the recommended minimum polarization index
value for induction motors?
A. 1.0
B. 1.5
C. 2.0
D. 3.0
CORRECT ANSWER: C. 2.0
, Rationale: The recommended minimum polarization index for induction
motors is 2.0, with values below this threshold indicating potential
insulation contamination or moisture.
Question 9: Which of the following conditions would NOT be
detected by an insulation resistance test?
A. Moisture contamination in the insulation system
B. Surface contamination on winding insulation
C. Turn-to-turn short circuits within a coil
D. Thermal degradation of groundwall insulation
CORRECT ANSWER: C. Turn-to-turn short circuits within a coil
Rationale: Insulation resistance testing evaluates groundwall insulation
integrity but cannot detect turn-to-turn shorts, which require surge
comparison testing or specialized winding analysis.
Question 10: In vibration analysis, what does the term "resonance"
refer to?
A. The frequency at which a machine's vibration signature becomes stable
B. A condition where rotational speed approaches the object's natural
frequency
C. The point at which vibration amplitude decreases to zero
D. The harmonic frequency of the power supply
CORRECT ANSWER: B. A condition where rotational speed
approaches the object's natural frequency
Rationale: Resonance occurs when the speed of rotation approaches a
machine's natural frequency, causing amplified vibration amplitudes that
can lead to rapid equipment damage.
Question 11: Which type of unbalance exists when the weight
distribution axis is parallel to but does not lie on the axis of
rotation?
A. Couple unbalance
B. Dynamic unbalance
C. Static unbalance
D. Quasi-static unbalance
CORRECT ANSWER: C. Static unbalance
