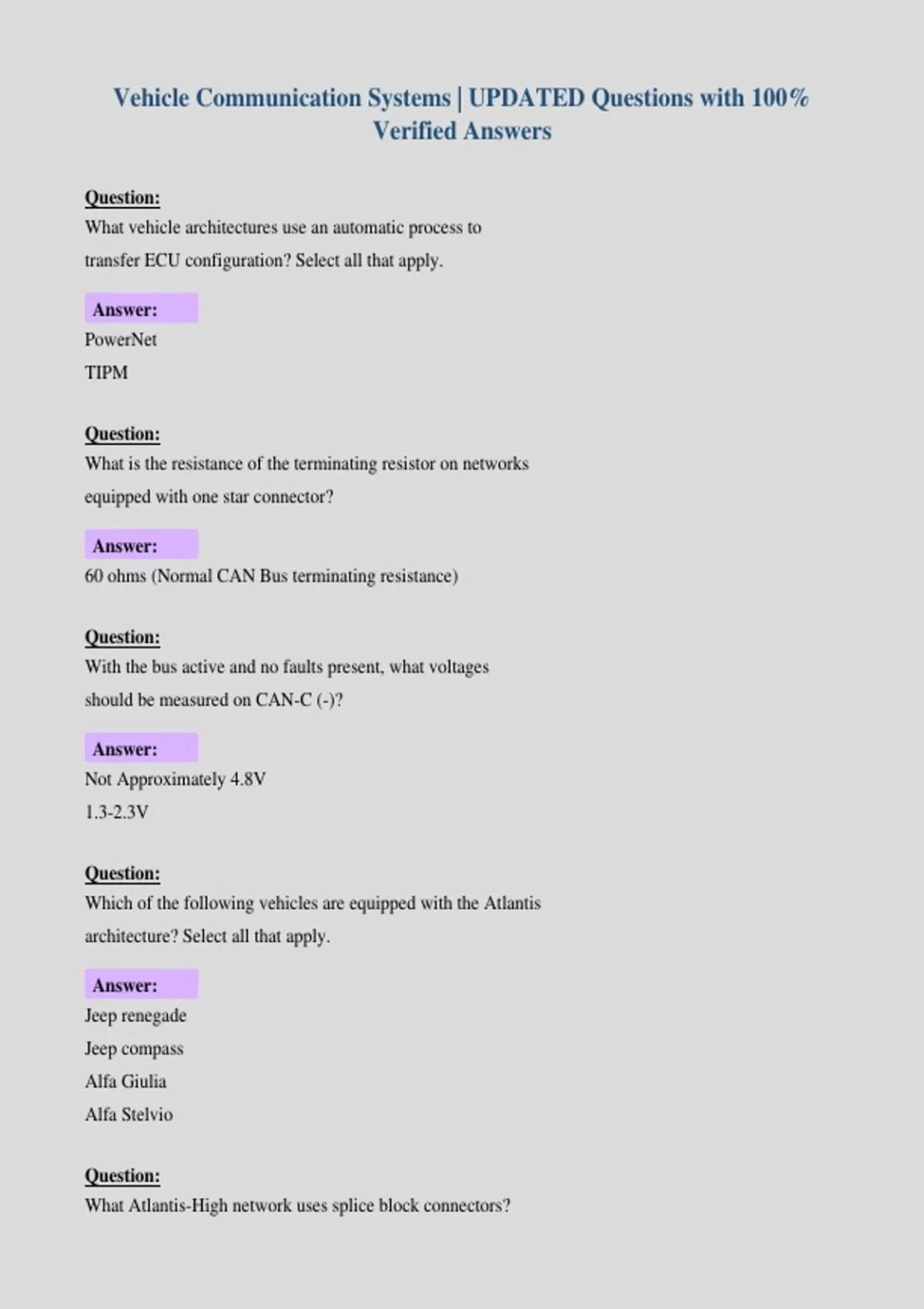

Vehicle Communication Systems | UPDATED Questions with 100%
Verified Answers
Question:
What vehicle architectures use an automatic process to
transfer ECU configuration? Select all that apply.
Answer:
PowerNet
TIPM
Question:
What is the resistance of the terminating resistor on networks
equipped with one star connector?
Answer:
60 ohms (Normal CAN Bus terminating resistance)
Question:
With the bus active and no faults present, what voltages
should be measured on CAN-C (-)?
Answer:
Not Approximately 4.8V
1.3-2.3V
Question:
Which of the following vehicles are equipped with the Atlantis
architecture? Select all that apply.
Answer:
Jeep renegade
Jeep compass
Alfa Giulia
Alfa Stelvio
Question:
What Atlantis-High network uses splice block connectors?
, Answer:
The WL Grand Cherokee
Only on the CAN-BH Bus
Question:
Atlantis-High found on?
Answer:
2021 Grand Cherokee(or WL) (Automotive Ethernet standard 100BASE-TX){1500 bytes up
to 100 mbps}<still use a twisted pair like CAN>
Can't be spliced or repaired like CAN Wires
Ideal for screen mirroring and streaming connected services
2022 Wagoneer(or WS)
Question:
With the bus active and no faults present, what voltages
should be measured on CAN-B (+)?
Answer:
0.39V-0.46V
Question:
Which diagnostic software and scan tool should be used to
diagnose legacy vehicle architectures?
Answer:
Hybrid of CAN with early versions of serial-communication networks
Peripheral Component Interconnect
Serial Communication Interface
SAE's J1850, or K-Line as primary network
DRB-III or Star Scan
Enhanced DRB-III Emulatora
Question:
With the bus active and no faults present, what voltages
should be measured on LIN?
Answer:
