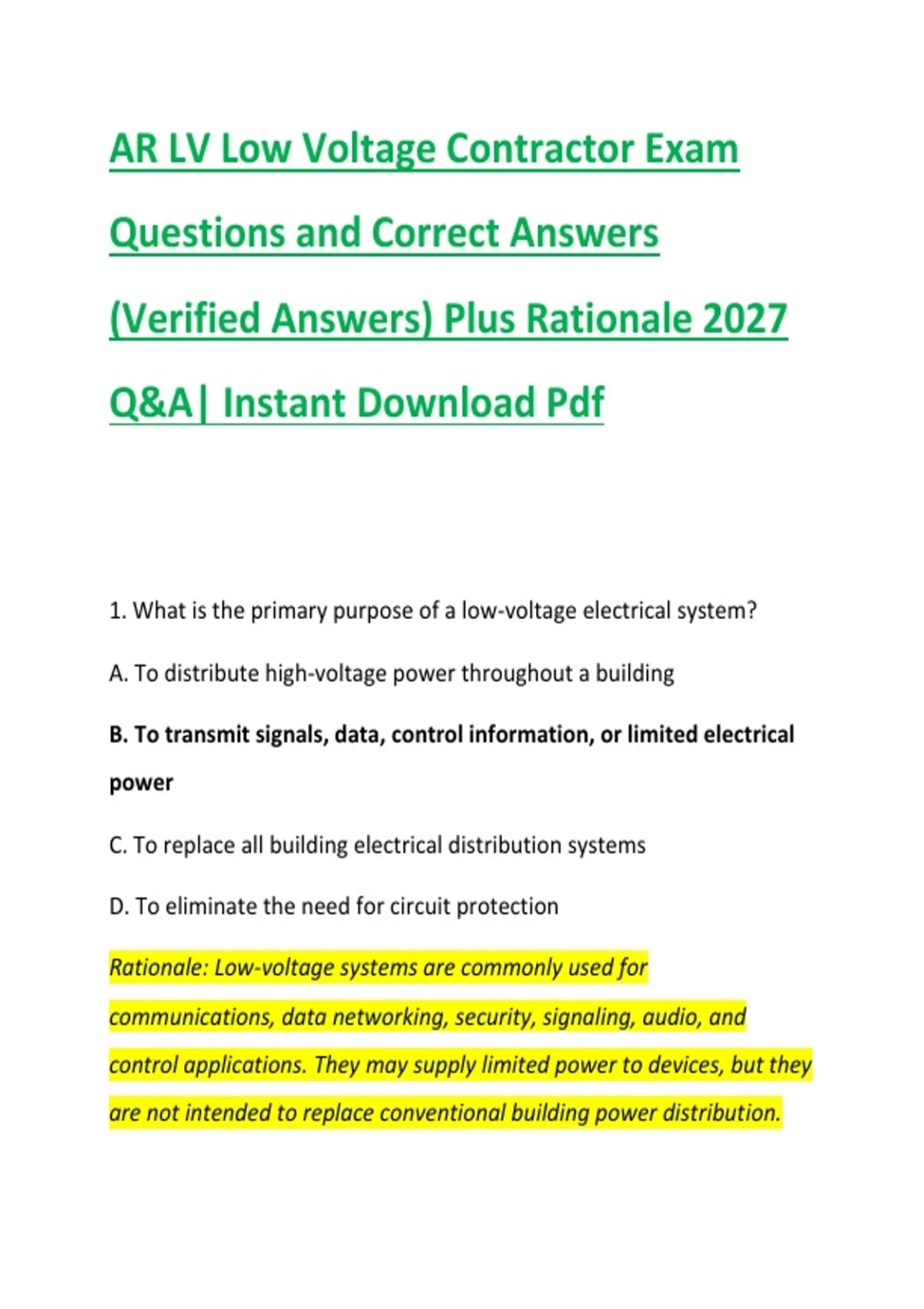

AR LV Low Voltage Contractor Exam
Questions and Correct Answers
(Verified Answers) Plus Rationale 2027
Q&A| Instant Download Pdf
1. What is the primary purpose of a low-voltage electrical system?
A. To distribute high-voltage power throughout a building
B. To transmit signals, data, control information, or limited electrical
power
C. To replace all building electrical distribution systems
D. To eliminate the need for circuit protection
Rationale: Low-voltage systems are commonly used for
communications, data networking, security, signaling, audio, and
control applications. They may supply limited power to devices, but they
are not intended to replace conventional building power distribution.
,Appropriate voltage limits and installation requirements depend on the
applicable electrical code and system classification.
2. Which organization publishes the National Electrical Code (NEC)?
A. Occupational Safety and Health Administration (OSHA)
B. American National Standards Institute (ANSI)
C. National Fire Protection Association (NFPA)
D. Federal Communications Commission (FCC)
Rationale: The NFPA publishes NFPA 70, the National Electrical Code.
The NEC establishes requirements intended to safeguard people and
property from electrical hazards. OSHA regulates workplace safety,
ANSI coordinates standards development, and the FCC regulates
communications matters within its jurisdiction.
3. What is the main function of an uninterruptible power supply (UPS)
in a low-voltage system?
A. Increase the operating voltage of all connected devices
B. Provide temporary backup power when the normal power source
fails
C. Eliminate the need for grounding
D. Prevent every possible electrical fault
,Rationale: A UPS supplies temporary power from an internal battery or
another stored-energy source when normal power is interrupted. It may
also provide power conditioning, depending on its design. Backup
duration depends on battery capacity and connected load. A UPS does
not eliminate the need for proper grounding, circuit protection, or safe
installation.
4. Which cable category is commonly used for modern Ethernet
networks supporting 1 Gbps over a 100-meter channel?
A. Category 1
B. Category 2
C. Category 5e
D. Category 3
Rationale: Category 5e twisted-pair cabling supports 1000BASE-T
Gigabit Ethernet over a compliant channel of up to 100 meters,
including permanent link and patch cords within the applicable channel
limits. Category 6 and Category 6A also support Gigabit Ethernet and
provide additional performance capabilities.
5. What is the primary purpose of twisting the conductors in a twisted-
pair cable?
A. Increase the cable's outside diameter
, B. Eliminate the need for insulation
C. Reduce electromagnetic interference and crosstalk
D. Increase the cable's resistance
Rationale: Twisting helps reduce the effects of external electromagnetic
interference and minimizes crosstalk between pairs. The twists improve
noise rejection by causing induced interference to affect the conductors
in a more balanced manner. Maintaining the manufacturer's pair
geometry and twist characteristics is important during termination.
6. Which tool is commonly used to terminate conductors into
insulation-displacement contacts on a 110-style block?
A. Pipe wrench
B. Punch-down tool
C. Torque multiplier
D. Cable lubricator
Rationale: A punch-down tool seats individual insulated conductors into
insulation-displacement contacts, which establish electrical contact
without requiring the insulation to be stripped separately. Many tools
also trim excess conductor during termination. Correct blade selection
and proper seating help prevent loose connections and damage.
