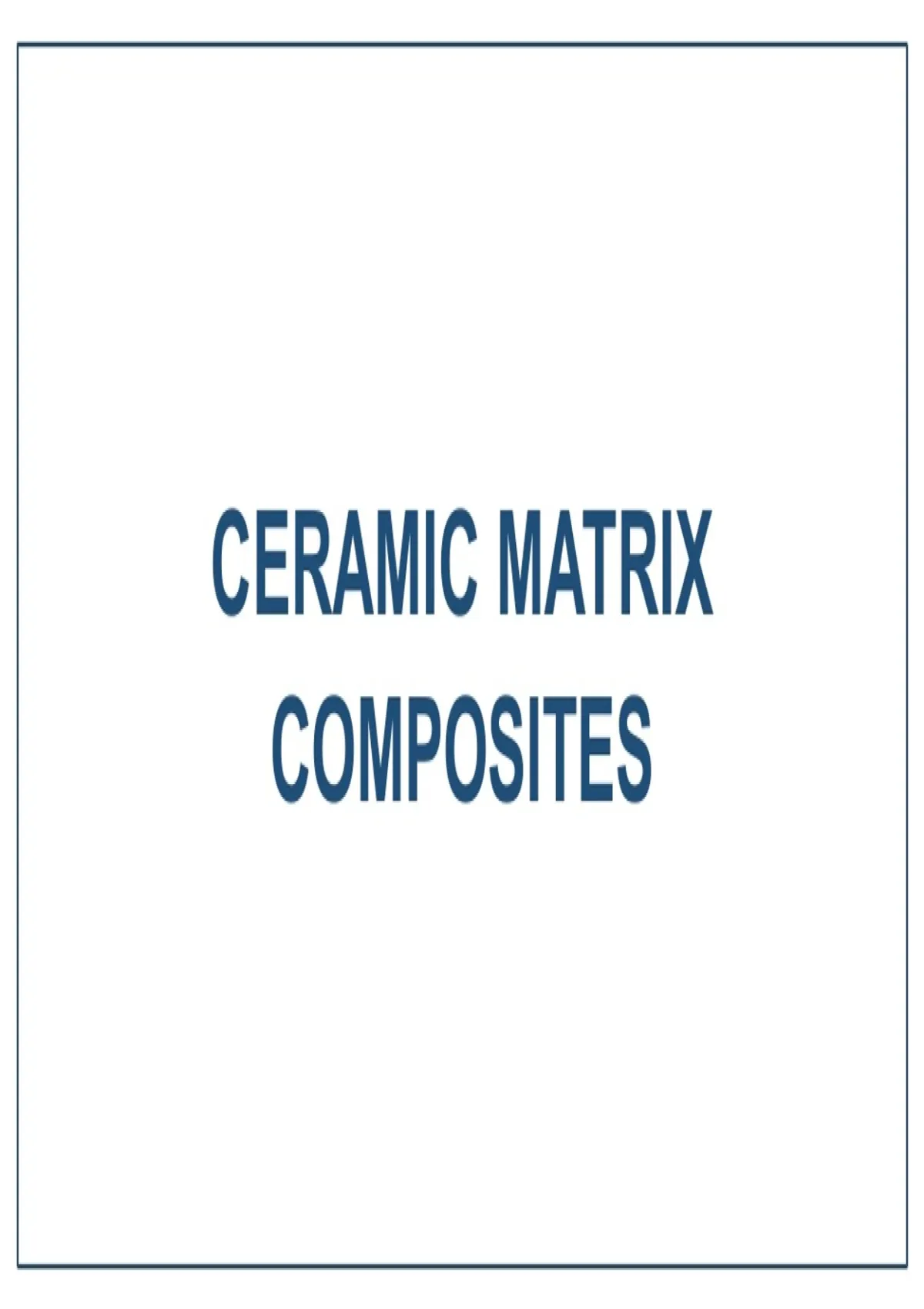

CERAMIC MATRIX
COMPOSITES
,The ceramic matrix challenge
Ceramic matrix composites (CMCs) seek to combine thermal stability with damage tolerance. Their selection
depends on loading, environment, and service time.
Design requirement Limitation to overcome Composite response
Ceramic matrix and lightweight
Low mass Penalty from dense components
architecture
Abrupt failure of monolithic
Tolerate cracks Reinforcements that redistribute load
ceramics
Operate at high Creep and environmental
Compatible constituents and protection
temperature degradation
Damage and defects vary from
Predictable service life Controlled processing and validation
part to part
,What defines a composite
Matrix
The continuous ceramic phase
maintains the shape and surrounds the
reinforcements. It may be oxide, non-
oxide, or glass-ceramic.
Reinforcement
Particles or fibers modify the
mechanical response and other
properties. Matrix and fiber may have
the same chemical composition.
Interfacial region
Contact between the phases controls
load transfer and crack paths. An
interphase is a material layer within this
region. Conceptual schematic of a ceramic matrix with fibers, particles, whiskers, and an interphase.
, Why ceramics fracture
Stress concentration
Pores, scratches, and cracks locally
amplify the applied stress. Failure can
initiate at a small flaw.
Propagation condition
In the linear-elastic approximation,
stress intensity increases with nominal
stress and with the square root of crack
size.
Practical implication
Reducing flaws helps, but the
composite also seeks to limit unstable
crack propagation after damage begins.
Analytical relation K = Yσ√(πa) at fixed stress and geometry; not experimental data.
