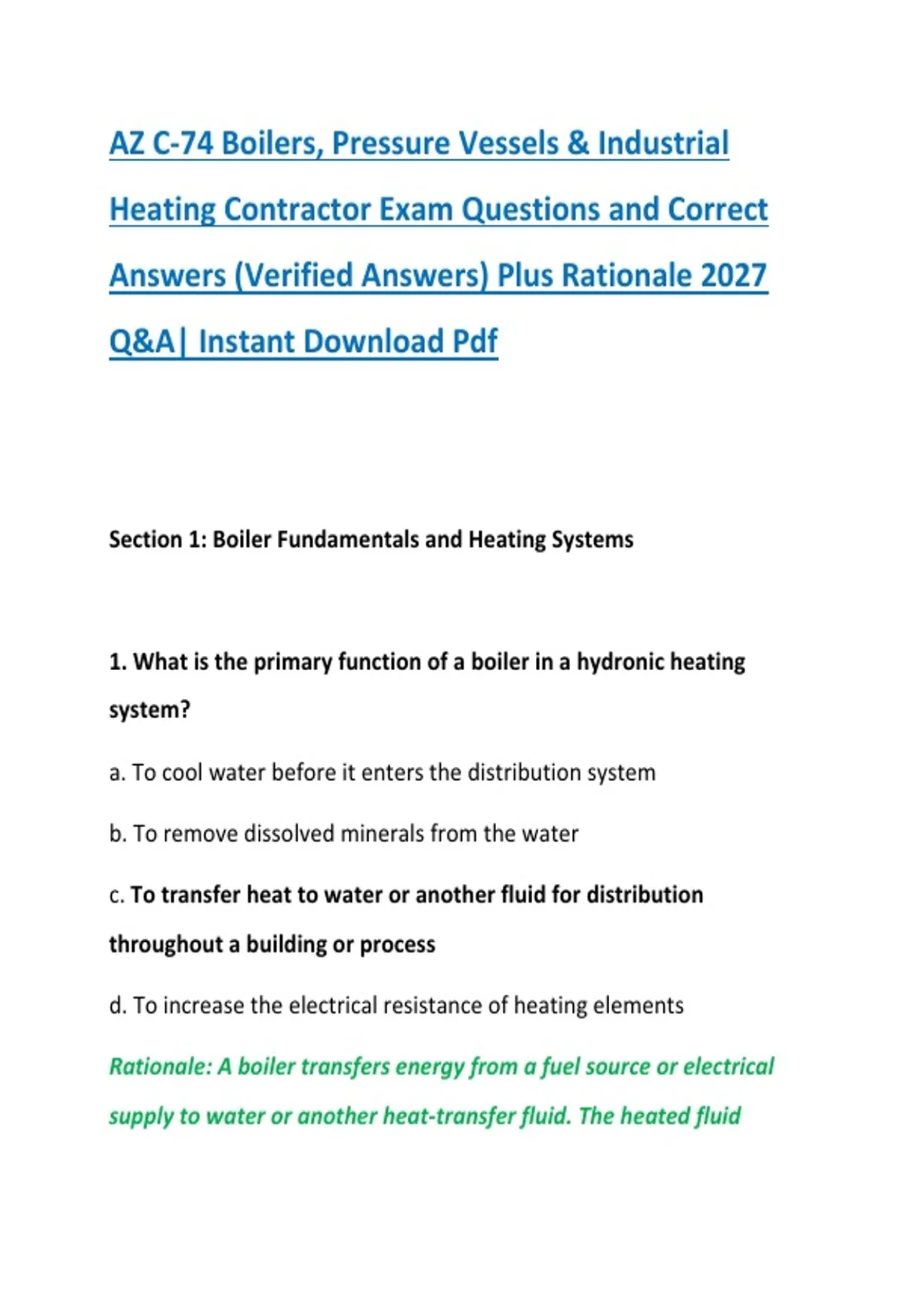

AZ C-74 Boilers, Pressure Vessels & Industrial
Heating Contractor Exam Questions and Correct
Answers (Verified Answers) Plus Rationale 2027
Q&A| Instant Download Pdf
Section 1: Boiler Fundamentals and Heating Systems
1. What is the primary function of a boiler in a hydronic heating
system?
a. To cool water before it enters the distribution system
b. To remove dissolved minerals from the water
c. To transfer heat to water or another fluid for distribution
throughout a building or process
d. To increase the electrical resistance of heating elements
Rationale: A boiler transfers energy from a fuel source or electrical
supply to water or another heat-transfer fluid. The heated fluid
,circulates through piping, radiators, coils, or other heat exchangers to
provide space heating or process heat.
2. Which component is primarily responsible for transferring heat
from combustion gases to boiler water in a conventional fire-tube
boiler?
a. Feedwater regulator
b. The heat-transfer surface of the tubes
c. Pressure gauge
d. Blowdown valve
Rationale: In a fire-tube boiler, hot combustion gases travel through
tubes surrounded by water. Heat passes through the tube walls into
the water. The feedwater regulator controls water supply, the
pressure gauge indicates pressure, and the blowdown valve removes
accumulated contaminants.
3. What is the principal difference between a fire-tube boiler and a
water-tube boiler?
a. Fire-tube boilers cannot produce steam.
b. Water-tube boilers do not require pressure controls.
c. Fire-tube boilers use electricity exclusively.
,d. Fire-tube boilers carry hot gases through tubes surrounded by
water, while water-tube boilers carry water through tubes heated
externally by hot gases.
Rationale: The distinction concerns which fluid flows inside the tubes.
Fire-tube boilers are commonly used for many lower- and moderate-
capacity applications, while water-tube designs are frequently
selected for higher pressures, capacities, and demanding industrial
applications.
4. What is the purpose of a boiler's pressure gauge?
a. To measure the water's chemical composition
b. To determine the burner flame temperature
c. To indicate the pressure inside the boiler
d. To regulate combustion air automatically
Rationale: A pressure gauge provides an indication of the boiler's
internal pressure. Operators use it to monitor operating conditions
and identify abnormal pressure changes. It does not directly control
pressure or measure water chemistry.
5. Which device automatically interrupts burner operation when
boiler pressure reaches its designated operating limit?
, a. Circulator pump
b. Operating pressure control
c. Water treatment feeder
d. Manual drain valve
Rationale: An operating pressure control monitors boiler pressure and
cycles the burner to maintain the intended operating range. A
separate high-pressure limit control provides an additional protective
function and must not be treated as a substitute for the operating
control.
6. What is the primary purpose of a boiler safety relief valve?
a. To increase system pressure during startup
b. To remove sediment during routine operation
c. To regulate the building thermostat
d. To discharge fluid when pressure exceeds the valve's specified
relieving conditions
Rationale: A properly selected and installed safety or safety relief
valve protects pressure equipment against excessive pressure by
discharging fluid. Its capacity, pressure setting, installation, and
