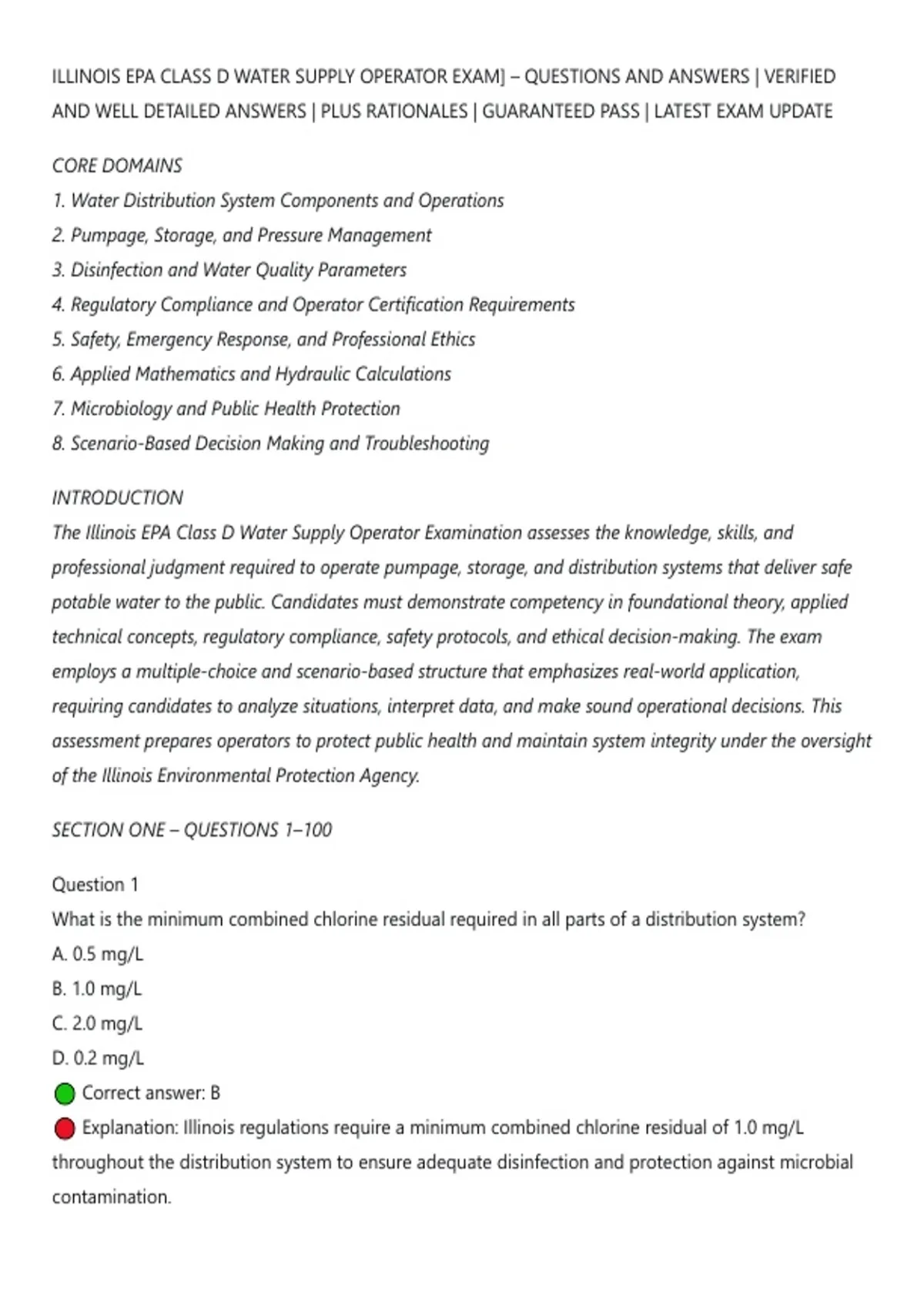

ILLINOIS EPA CLASS D WATER SUPPLY OPERATOR EXAM] – QUESTIONS AND ANSWERS | VERIFIED
AND WELL DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE
CORE DOMAINS
1. Water Distribution System Components and Operations
2. Pumpage, Storage, and Pressure Management
3. Disinfection and Water Quality Parameters
4. Regulatory Compliance and Operator Certification Requirements
5. Safety, Emergency Response, and Professional Ethics
6. Applied Mathematics and Hydraulic Calculations
7. Microbiology and Public Health Protection
8. Scenario-Based Decision Making and Troubleshooting
INTRODUCTION
The Illinois EPA Class D Water Supply Operator Examination assesses the knowledge, skills, and
professional judgment required to operate pumpage, storage, and distribution systems that deliver safe
potable water to the public. Candidates must demonstrate competency in foundational theory, applied
technical concepts, regulatory compliance, safety protocols, and ethical decision-making. The exam
employs a multiple-choice and scenario-based structure that emphasizes real-world application,
requiring candidates to analyze situations, interpret data, and make sound operational decisions. This
assessment prepares operators to protect public health and maintain system integrity under the oversight
of the Illinois Environmental Protection Agency.
SECTION ONE – QUESTIONS 1–100
Question 1
What is the minimum combined chlorine residual required in all parts of a distribution system?
A. 0.5 mg/L
B. 1.0 mg/L
C. 2.0 mg/L
D. 0.2 mg/L
🟢 Correct answer: B
🔴 Explanation: Illinois regulations require a minimum combined chlorine residual of 1.0 mg/L
throughout the distribution system to ensure adequate disinfection and protection against microbial
contamination.
,Question 2
A 6-inch PVC water main is installed with a dead end. What should be installed at the end of the main?
A. Gate valve
B. Concrete thrust block
C. Air release valve
D. Blow-off assembly
🟢 Correct answer: D
🔴 Explanation: A blow-off assembly at the end of a dead-end main allows for routine flushing to
prevent stagnation, sediment accumulation, and loss of chlorine residual.
Question 3
What is the purpose of cathodic protection in a water storage tank?
A. To prevent ice formation
B. To apply a small electric current that prevents rust and corrosion of metal surfaces
C. To increase water pressure
D. To disinfect stored water
🟢 Correct answer: B
🔴 Explanation: Cathodic protection uses a small electrical current to suppress electrochemical
corrosion reactions on submerged metal tank surfaces, extending tank life and protecting water
quality.
Question 4
An altitude valve on an elevated storage tank is designed to:
A. Regulate water temperature
B. Automatically shut off flow into the tank when it reaches a predetermined level
C. Measure water consumption
D. Control pump speed
🟢 Correct answer: B
🔴 Explanation: The altitude valve prevents overflow by closing when the tank reaches its set
maximum level and reopens when system pressure drops, maintaining adequate storage.
Question 5
Where is an altitude valve typically located?
A. Inside the treatment plant
B. At the base of the elevated tank or beneath the water tower
C. At each customer service connection
,D. At the fire hydrant
🟢 Correct answer: B
🔴 Explanation: The altitude valve is installed beneath the elevated storage tank, typically in a vault,
where it can sense tank level and control flow into and out of the tank.
Question 6
Disinfection is defined as the process of:
A. Removing all minerals from water
B. Killing or inactivating most microorganisms, especially pathogenic bacteria
C. Adding fluoride to water
D. Filtering out suspended particles
🟢 Correct answer: B
🔴 Explanation: Disinfection targets disease-causing organisms through chemical or physical means,
rendering water microbiologically safe for consumption without necessarily sterilizing it completely.
Question 7
Which device is used to repair a cracked water main?
A. Saddle clamp
B. Split-sleeve clamp
C. Corporation stop
D. Curb stop
🟢 Correct answer: B
🔴 Explanation: A split-sleeve clamp wraps around the damaged section of pipe and seals the crack
under pressure, providing a structural repair without requiring full pipe replacement.
Question 8
When installing permanent landmarks for locating valves, which of the following should NOT be used?
A. Concrete monuments
B. Steel posts
C. Trees
D. Utility markers
🟢 Correct answer: C
🔴 Explanation: Trees are living organisms that can be removed, die, or grow, making them unreliable
landmarks. Permanent, manufactured markers are required for accurate valve location.
, Question 9
Which three diseases are commonly associated with waterborne transmission?
A. Diabetes, hypertension, and asthma
B. Typhoid, infectious hepatitis, and cholera
C. Influenza, measles, and mumps
D. Tuberculosis, pneumonia, and bronchitis
🟢 Correct answer: B
🔴 Explanation: Typhoid fever, infectious hepatitis, and cholera are classic waterborne diseases that
can cause severe illness and death when water supplies are contaminated with human waste.
Question 10
Convert 9,500 gallons to million gallons per day (MGD).
A. 0.0095 MGD
B. 0.095 MGD
C. 0.95 MGD
D. 9.5 MGD
🟢 Correct answer: A
🔴 Explanation: To convert gallons to MGD, divide by 1,000,000. 9,500 ÷ 1,000,000 = 0.0095 MGD.
Question 11
Convert 98,000 gallons to MGD.
A. 0.98 MGD
B. 0.098 MGD
C. 9.8 MGD
D. 0.0098 MGD
🟢 Correct answer: B
🔴 Explanation: 98,000 ÷ 1,000,000 = 0.098 MGD.
Question 12
Convert 678,000 gallons to MGD.
A. 6.78 MGD
B. 0.0678 MGD
C. 0.678 MGD
D. 67.8 MGD
🟢 Correct answer: C
🔴 Explanation: 678,000 ÷ 1,000,000 = 0.678 MGD.
