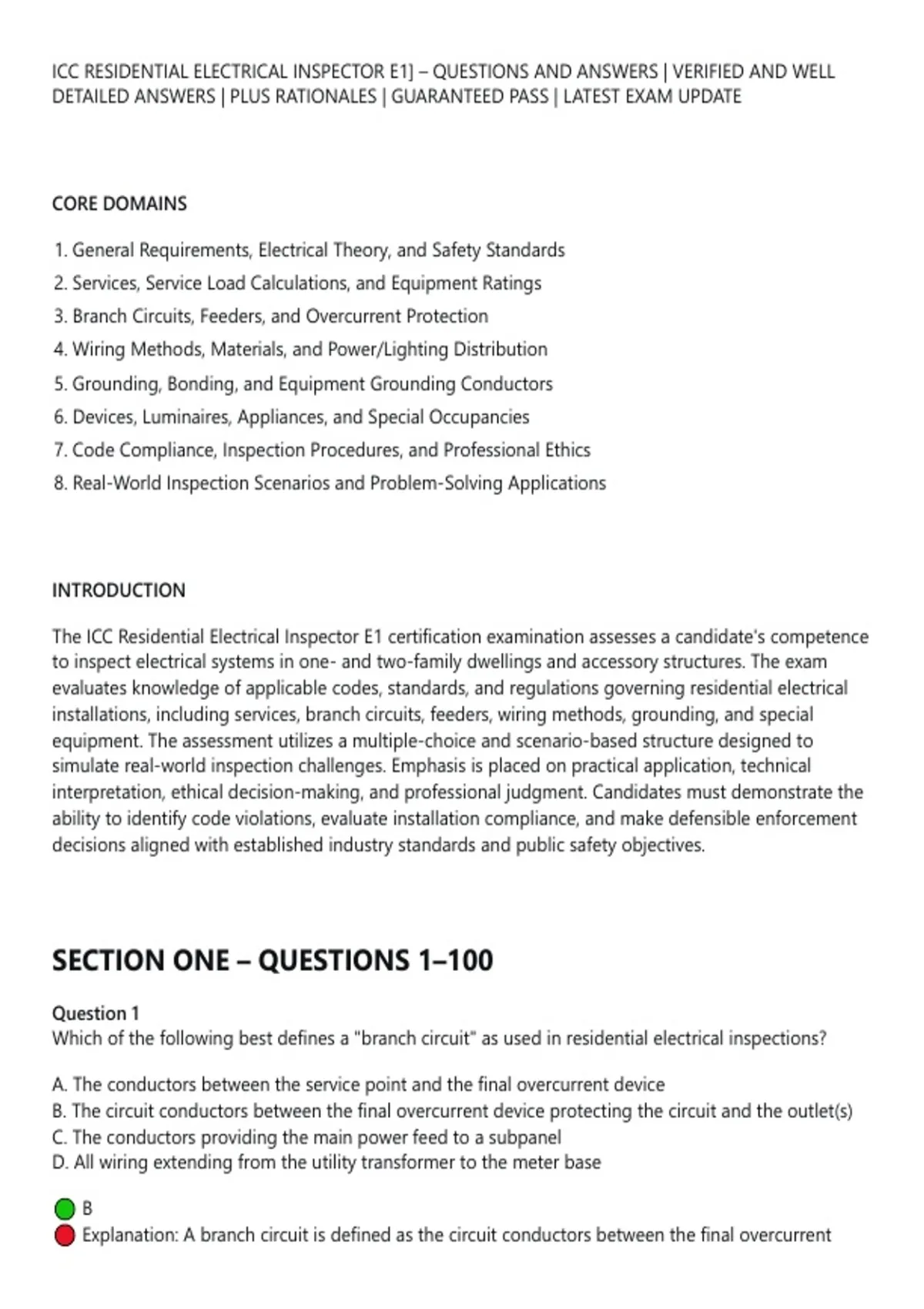

ICC RESIDENTIAL ELECTRICAL INSPECTOR E1] – QUESTIONS AND ANSWERS | VERIFIED AND WELL
DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE
CORE DOMAINS
1. General Requirements, Electrical Theory, and Safety Standards
2. Services, Service Load Calculations, and Equipment Ratings
3. Branch Circuits, Feeders, and Overcurrent Protection
4. Wiring Methods, Materials, and Power/Lighting Distribution
5. Grounding, Bonding, and Equipment Grounding Conductors
6. Devices, Luminaires, Appliances, and Special Occupancies
7. Code Compliance, Inspection Procedures, and Professional Ethics
8. Real-World Inspection Scenarios and Problem-Solving Applications
INTRODUCTION
The ICC Residential Electrical Inspector E1 certification examination assesses a candidate's competence
to inspect electrical systems in one- and two-family dwellings and accessory structures. The exam
evaluates knowledge of applicable codes, standards, and regulations governing residential electrical
installations, including services, branch circuits, feeders, wiring methods, grounding, and special
equipment. The assessment utilizes a multiple-choice and scenario-based structure designed to
simulate real-world inspection challenges. Emphasis is placed on practical application, technical
interpretation, ethical decision-making, and professional judgment. Candidates must demonstrate the
ability to identify code violations, evaluate installation compliance, and make defensible enforcement
decisions aligned with established industry standards and public safety objectives.
SECTION ONE – QUESTIONS 1–100
Question 1
Which of the following best defines a "branch circuit" as used in residential electrical inspections?
A. The conductors between the service point and the final overcurrent device
B. The circuit conductors between the final overcurrent device protecting the circuit and the outlet(s)
C. The conductors providing the main power feed to a subpanel
D. All wiring extending from the utility transformer to the meter base
🟢B
🔴 Explanation: A branch circuit is defined as the circuit conductors between the final overcurrent
,device protecting the circuit and the outlet(s). This distinction is critical for determining which rules
apply to branch circuit wiring versus feeder conductors.
Question 2
A residential inspector observes a 15-ampere circuit breaker protecting a circuit wired with 12 AWG
copper conductors. What is the inspector's primary concern?
A. The conductor is undersized for the overcurrent device
B. The overcurrent device is undersized for the conductor
C. The conductor ampacity is adequate, but the breaker should match the conductor's rating
D. There is no violation; 12 AWG is permitted on a 15-ampere circuit
🟢D
🔴 Explanation: 12 AWG copper conductors have an ampacity of 20 amperes at 60°C and may be
protected by a 15-ampere overcurrent device. Protecting a larger conductor with a smaller breaker is
permitted because the conductor is protected within its ampacity.
Question 3
During a rough-in inspection, an inspector finds Type NM-B cable running through a bored hole in a
wood stud. The cable is 1 inch from the face of the stud. What action should the inspector take?
A. Approve the installation because 1 inch is sufficient in all cases
B. Require a steel nail plate because the cable is less than 1¼ inches from the face
C. Require the cable to be re-routed through a conduit sleeve
D. Approve the installation because only exterior walls require nail plates
🟢B
🔴 Explanation: Type NM cable installed in a bored hole must be kept at least 1¼ inches from the
nearest edge of the framing member. If this distance cannot be maintained, a steel nail plate at least
1/16 inch thick must protect the cable. A 1-inch setback does not satisfy the code requirement.
Question 4
A homeowner asks the inspector why GFCI protection is required in a bathroom when the receptacle is
6 feet from the shower. What is the correct rationale?
A. GFCI protection is required only within 3 feet of a water source
B. GFCI protection is required for all 125-volt, 15- and 20-ampere receptacles in dwelling unit
bathrooms regardless of distance
C. GFCI protection is only required for receptacles that are not on dedicated circuits
D. GFCI protection is optional in bathrooms if the receptacle is tamper-resistant
🟢B
🔴 Explanation: All 125-volt through 250-volt, 15- and 20-ampere receptacles installed in dwelling
unit bathrooms must have ground-fault circuit-interrupter protection for personnel. The requirement
is not based on proximity to water within the bathroom.
Question 5
An inspector finds a 20-ampere laundry branch circuit that also supplies a bathroom receptacle. What
is the appropriate inspection action?
,A. Approve the installation because the laundry circuit is 20 amperes
B. Approve the installation if the bathroom receptacle is GFCI-protected
C. Cite a violation because the laundry branch circuit cannot supply bathroom outlets
D. Cite a violation because laundry circuits must be 15 amperes
🟢C
🔴 Explanation: The 20-ampere laundry branch circuit required by code must be dedicated to the
laundry receptacle outlets and cannot serve any other outlets, including bathroom receptacles. This
circuit is intended exclusively for laundry area loads.
Question 6
A grounding electrode conductor is connected to a ground rod. The inspector measures the resistance
to earth and obtains a reading of 30 ohms. What is the correct inspection outcome?
A. The installation is compliant because the resistance is below 50 ohms
B. A supplemental electrode is required because resistance exceeds 25 ohms
C. The ground rod must be replaced with a larger diameter rod
D. Resistance measurements are not required for single-family dwellings
🟢B
🔴 Explanation: A single rod, pipe, or plate electrode is considered sufficient only if it has a resistance
to earth of 25 ohms or less. If resistance exceeds 25 ohms, a supplemental electrode must be installed.
Question 7
What is the minimum working space depth required in front of a residential electrical panelboard rated
at 200 amperes and 240 volts?
A. 24 inches
B. 30 inches
C. 36 inches
D. 42 inches
🟢C
🔴 Explanation: The minimum working space in the direction of access to live parts operating at 600
volts or less must be at least 36 inches. This provides safe access for inspection and maintenance.
Question 8
An inspector observes a junction box with three 12 AWG conductors and one 12 AWG equipment
grounding conductor. What is the minimum cubic inch capacity required for this box?
A. 12.0 cubic inches
B. 14.0 cubic inches
C. 16.0 cubic inches
D. 18.0 cubic inches
🟢C
🔴 Explanation: Each 12 AWG conductor counts as 2.25 cubic inches. Four conductors (three current-
carrying plus one grounding) multiplied by 2.25 equals 9.0 cubic inches for the conductors.
Additionally, if there are cable clamps or a device, those add volume. However, for this scenario with
, only conductors and no fittings or devices, the base calculation is 9.0 cubic inches, but typical box fill
minimums require a standard box size. A box with four 12 AWG conductors requires at least 9.0 cubic
inches, but standard boxes are typically 16.0 cubic inches or larger. The calculation for box fill must
also account for all equipment grounding conductors as one or more conductors. In this scenario, the
equipment grounding conductor adds 2.25 cubic inches to the three ungrounded/grounded
conductors, totaling four conductor volumes, equaling 9.0 cubic inches. However, the presence of any
cable clamps or a device yoke would add additional volume. Based on standard box fill calculations for
four 12 AWG conductors, the minimum requirement is 9.0 cubic inches, but commercially available
boxes meeting this minimum are typically 16.0 cubic inches. The correct answer reflects the minimum
box size commonly required.
Question 9
A residential service is being inspected. The service entrance conductors are aluminum, 2/0 AWG. What
is the minimum size copper grounding electrode conductor required for this service?
A. 6 AWG copper
B. 4 AWG copper
C. 2 AWG copper
D. 1/0 AWG copper
🟢B
🔴 Explanation: For a 2/0 AWG aluminum service entrance conductor, the corresponding copper
grounding electrode conductor is 4 AWG, per the grounding electrode conductor sizing table. The
table correlates service conductor size to GEC size.
Question 10
An inspector finds a 240-volt electric dryer receptacle in a new home wired with three conductors and
a ground. The receptacle is a 3-wire type. What is the appropriate action?
A. Approve the installation as compliant for existing construction
B. Approve the installation because a dryer is a 240-volt appliance
C. Require a 4-wire receptacle and 4-wire branch circuit for the new installation
D. Require the grounding conductor to be connected to the neutral terminal
🟢C
🔴 Explanation: New installations for electric dryers in dwelling units require a 4-wire branch circuit
and a 4-wire receptacle. The 3-wire configuration with a grounded neutral is permitted only for
existing installations where a grounding conductor is not available.
Question 11
During a final inspection, an inspector notices that a smoke detector in a hallway is powered by a 15-
ampere AFCI-protected circuit. Is this compliant?
A. Yes, if the smoke detector is listed for AFCI protection
B. Yes, smoke detectors are permitted on AFCI circuits
C. No, smoke detectors cannot be on AFCI circuits
D. No, smoke detectors must be on a dedicated circuit
