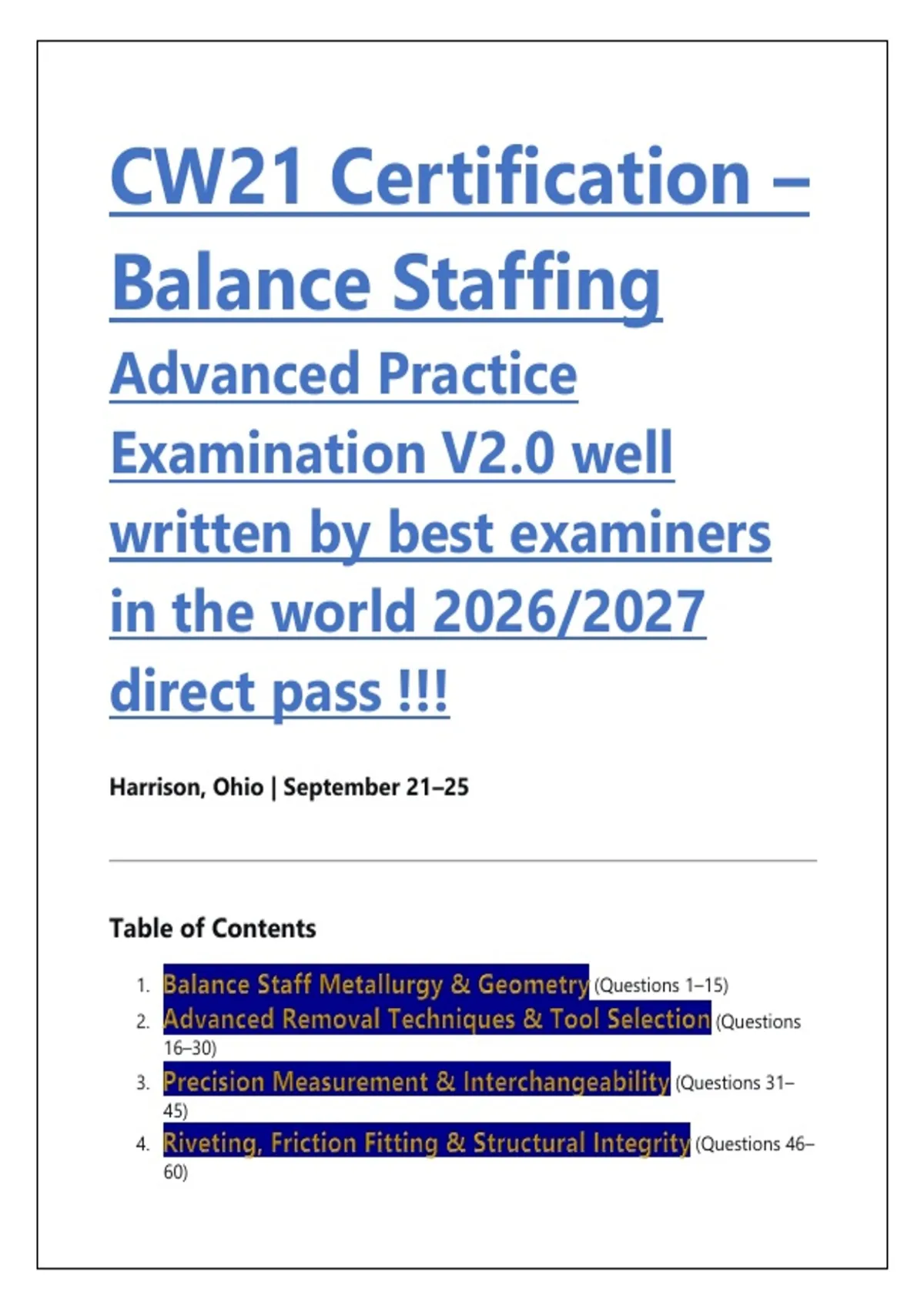

CW21 Certification –
Balance Staffing
Advanced Practice
Examination V2.0 well
written by best examiners
in the world 2026/2027
direct pass !!!
Harrison, Ohio | September 21–25
Table of Contents
1. (Questions 1–15)
2. (Questions
16–30)
3. (Questions 31–
45)
4. (Questions 46–
60)
, 5. (Questions 61–75)
6. (Questions 76–90)
7. (Questions 91–105)
8. (Questions
106–120)
9. (Questions
121–130)
Section 1: Balance Staff Metallurgy & Geometry
🟢 What specific metallurgical property of Glucydur balance wheels enables the
Horia pusher method to break the balance staff rivet without enlarging the balance
wheel hole?
A. Glucydur's higher coefficient of thermal expansion
B. Glucydur's greater hardness relative to the hardened steel staff, causing the brittle
staff to fracture before the wheel deforms
C. Glucydur's magnetic permeability
D. Glucydur's lower density compared to brass
🔴🔴
The Glucydur balance wheel is hard enough that the riveted portion of
the hardened steel staff will fracture before the balance wheel material yields . This
crystalline fracture of the staff occurs because the staff is hardened and tempered to a
brittle state, allowing it to break free cleanly while preserving the balance wheel hole
diameter.
🟢 The "Top-grooved" balance staff design, historically used by Hamilton, features
what distinctive geometric characteristic?
,A. A tapered pivot design for reduced friction
B. A deep groove at the riveting shoulder with a flat-shaped rivet
C. An integral roller table
D. A threaded hub for screw attachment
🔴🔴
Top-grooved staffs are identified by the deep groove at the riveting
shoulder and the flat-shaped rivet . This design allows removal by lightly tapping a
punch, causing the rivet to break off as a small ring of metal without damaging the
balance wheel.
🟢 In the context of balance staff geometry, what is the function of the "cone" or
"shoulder" located between the pivot and hub?
A. To provide a bearing surface for the roller table
B. To create a transition between the small pivot diameter and larger hub, and to
establish the axial seating of the balance wheel arm
C. To grip the hairspring collet
D. To engage the pallet fork's guard pin
🔴🔴
The cone/shoulder serves as the structural transition from the delicate
pivot to the robust hub. The balance wheel arm typically seats against this shoulder,
establishing precise axial positioning. This geometric relationship is critical for proper
endshake.
🟢 Which measurement of a balance staff must be taken BEFORE any disassembly of
the balance assembly, and why?
A. Pivot diameter, because pivots are easily damaged
B. Total length, because this reference dimension cannot be accurately obtained once
the staff is removed from the movement context
, C. Roller seat diameter, because the roller table obscures it
D. Collet diameter, because the hairspring must be removed first
🔴🔴
Total length (overall pivot-to-pivot) should be measured before further
disassembly because it is the reference dimension that establishes axial positioning
within the movement . Other dimensions can be measured later with the staff removed.
🟢 A balance staff exhibits a "crystalline" fracture surface after removal via the Horia
pusher method. What does this indicate about the staff's material condition?
A. The staff was improperly hardened and should not have been used
B. The staff underwent proper hardening and tempering, imparting both hardness and
the brittle nature necessary for clean fracture removal
C. The staff was made of brass rather than steel
D. The staff was magnetized
🔴🔴
The crystalline structure observed after breaking the rivet is the result of
the hardening and tempering process during manufacturing. This imparts both the
hardness to the staff and the brittle nature that allows it to break free cleanly during
removal .
🟢 What is the primary geometric consequence of a balance staff hub that is slightly
too small for the balance wheel bore?
A. The balance wheel will crack during installation
B. The staff will be loose, allowing the balance wheel to rotate independently and lose
its angular relationship with the escapement
C. The pivots will bend
D. The hairspring will not fit
