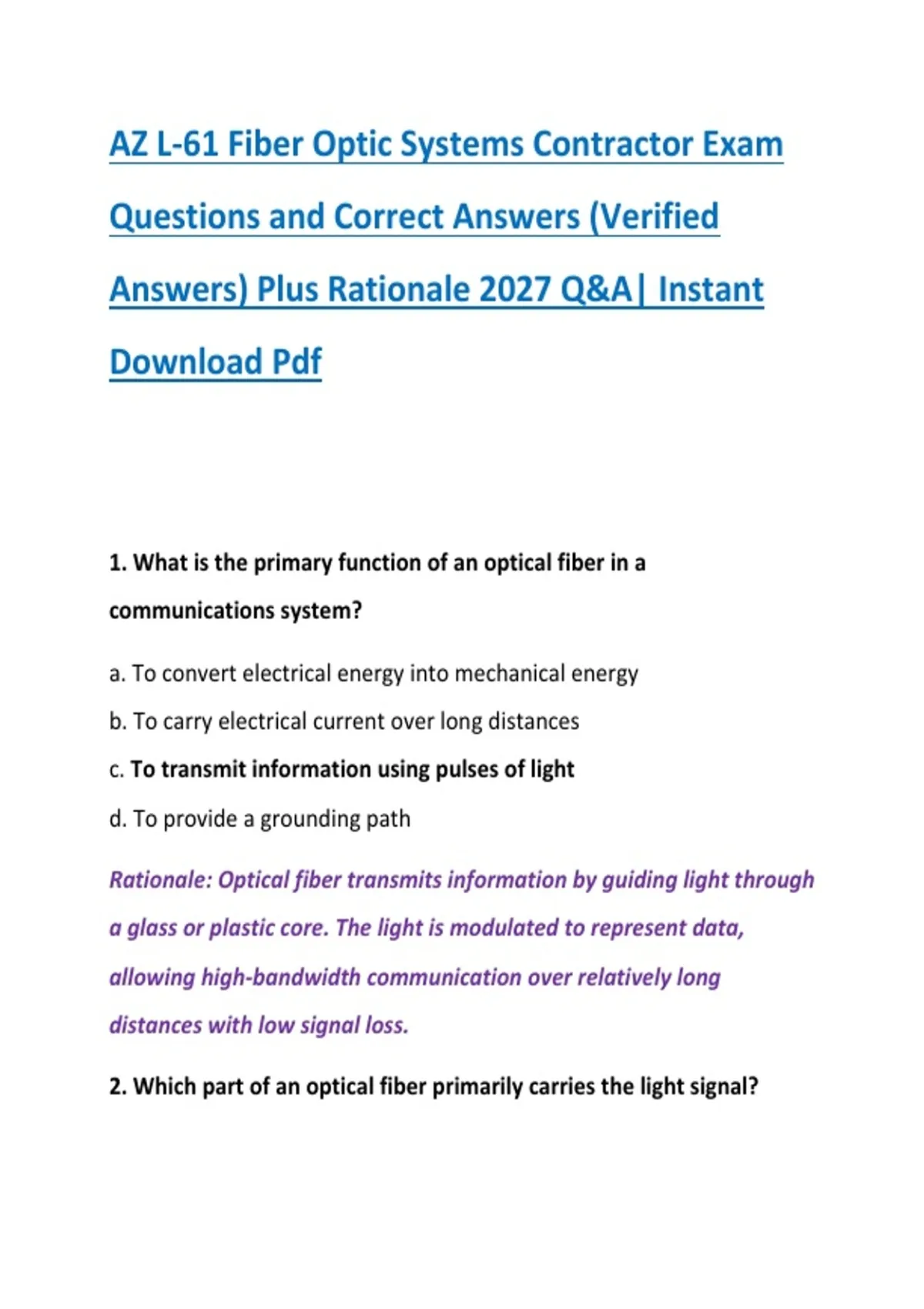

AZ L-61 Fiber Optic Systems Contractor Exam
Questions and Correct Answers (Verified
Answers) Plus Rationale 2027 Q&A| Instant
Download Pdf
1. What is the primary function of an optical fiber in a
communications system?
a. To convert electrical energy into mechanical energy
b. To carry electrical current over long distances
c. To transmit information using pulses of light
d. To provide a grounding path
Rationale: Optical fiber transmits information by guiding light through
a glass or plastic core. The light is modulated to represent data,
allowing high-bandwidth communication over relatively long
distances with low signal loss.
2. Which part of an optical fiber primarily carries the light signal?
,a. Jacket
b. Buffer coating
c. Cladding
d. Core
Rationale: The core is the central region of the fiber through which the
optical signal travels. The surrounding cladding has a lower refractive
index and helps keep light confined within the core.
3. What principle allows light to remain confined within an optical
fiber?
a. Electromagnetic induction
b. Diffraction
c. Total internal reflection
d. Electrical resistance
Rationale: Total internal reflection occurs when light traveling in a
higher-index medium strikes the boundary with a lower-index medium
at an angle greater than the critical angle. This principle allows light
to remain within the fiber core.
4. Which fiber type has a relatively large core and is commonly used
for shorter-distance applications?
,a. Single-mode fiber
b. Multimode fiber
c. Polarization-maintaining fiber
d. Dispersion-compensating fiber
Rationale: Multimode fiber has a larger core than single-mode fiber
and permits multiple propagation modes. It is commonly used for
shorter-distance communications, such as data-center and building
networks.
5. What is the typical core diameter of standard single-mode fiber?
a. 50 µm
b. 62.5 µm
c. 125 µm
d. Approximately 9 µm
Rationale: Standard single-mode fiber generally has a core diameter
of about 8–10 micrometers, commonly specified as approximately 9
µm. Its small core allows essentially one propagation mode at
operating wavelengths.
6. What does the 125 µm dimension commonly associated with fiber
describe?
, a. Core diameter
b. Jacket thickness
c. Cladding diameter
d. Buffer diameter
Rationale: Standard telecommunications fiber typically has a cladding
diameter of approximately 125 µm. The core is much smaller, while
protective coatings and buffer layers surround the cladding.
7. Which wavelength is commonly used with multimode fiber?
a. 1310 nm only
b. 1550 nm only
c. 850 nm
d. 10,600 nm
Rationale: 850 nm is widely used with multimode fiber, particularly
with VCSEL-based transmitters in premises and data-center
applications. Other wavelengths can also be used depending on the
system.
8. Which wavelength is commonly associated with long-distance
single-mode fiber systems?
a. 450 nm
b. 650 nm
