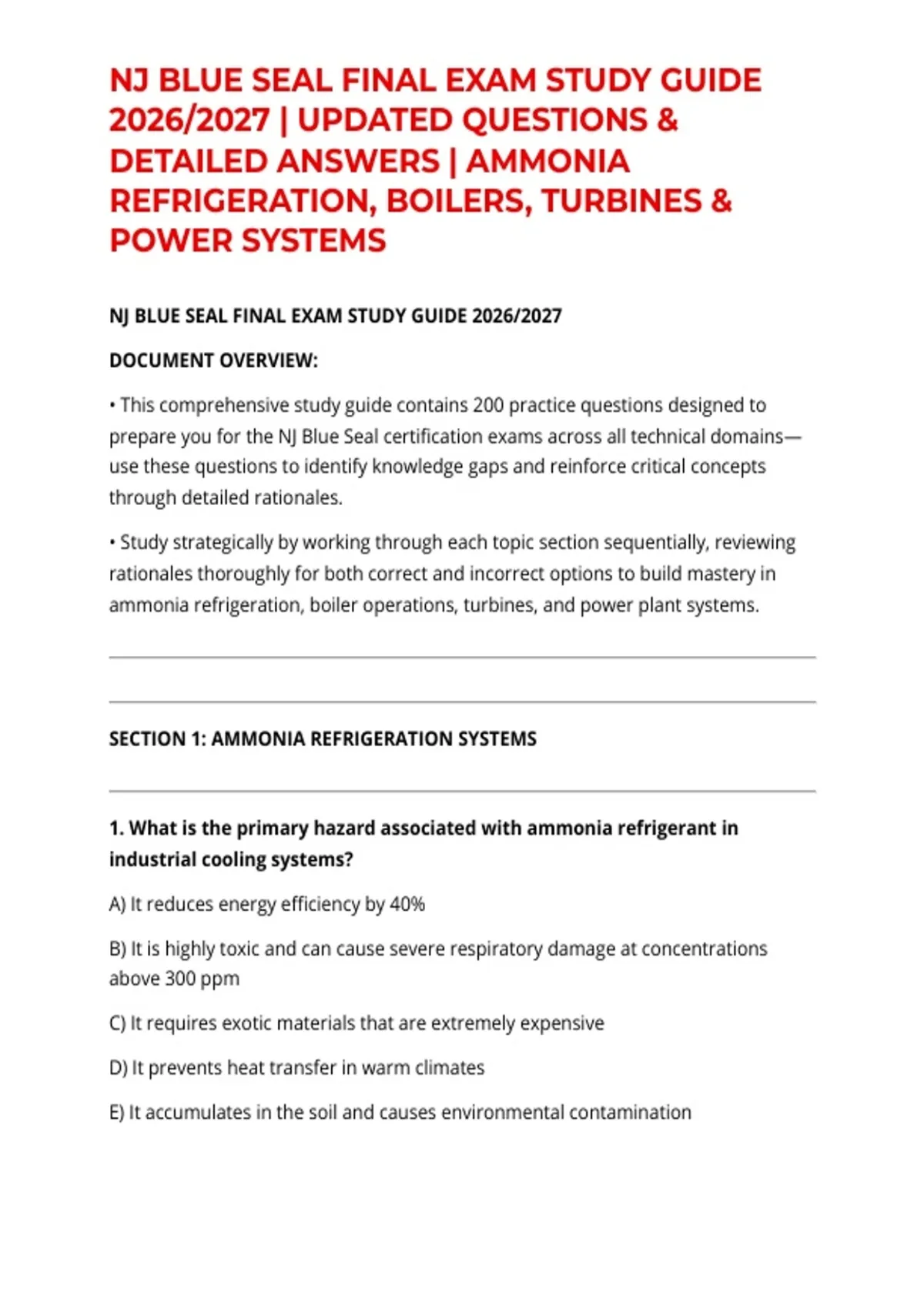

NJ BLUE SEAL FINAL EXAM STUDY GUIDE
2026/2027 | UPDATED QUESTIONS &
DETAILED ANSWERS | AMMONIA
REFRIGERATION, BOILERS, TURBINES &
POWER SYSTEMS
NJ BLUE SEAL FINAL EXAM STUDY GUIDE 2026/2027
DOCUMENT OVERVIEW:
• This comprehensive study guide contains 200 practice questions designed to
prepare you for the NJ Blue Seal certification exams across all technical domains—
use these questions to identify knowledge gaps and reinforce critical concepts
through detailed rationales.
• Study strategically by working through each topic section sequentially, reviewing
rationales thoroughly for both correct and incorrect options to build mastery in
ammonia refrigeration, boiler operations, turbines, and power plant systems.
SECTION 1: AMMONIA REFRIGERATION SYSTEMS
1. What is the primary hazard associated with ammonia refrigerant in
industrial cooling systems?
A) It reduces energy efficiency by 40%
B) It is highly toxic and can cause severe respiratory damage at concentrations
above 300 ppm
C) It requires exotic materials that are extremely expensive
D) It prevents heat transfer in warm climates
E) It accumulates in the soil and causes environmental contamination
,CORRECT ANSWER: B) It is highly toxic and can cause severe respiratory
damage at concentrations above 300 ppm
RATIONALE: Ammonia is a hazardous refrigerant classified as extremely toxic.
Exposure to ammonia gas at concentrations exceeding 300 ppm (parts per million)
can cause acute respiratory injury, pulmonary edema, and death. The OSHA PEL
(Permissible Exposure Limit) for ammonia is 50 ppm averaged over 8 hours. This is
why ammonia refrigeration systems require rigorous safety protocols, proper
ventilation, emergency procedures, and trained personnel. Options A, C, and D are
incorrect because ammonia is actually energy-efficient, uses standard materials,
and works effectively in all climates. Option E is incorrect because ammonia
evaporates as a gas and does not accumulate in soil.
2. In an ammonia refrigeration system, what is the function of the condenser?
A) To compress ammonia gas into liquid form
B) To remove heat from the ammonia vapor and convert it to liquid ammonia
C) To store ammonia at extremely low temperatures
D) To measure the pressure of the refrigerant cycle
E) To filter out impurities from the ammonia liquid
CORRECT ANSWER: B) To remove heat from the ammonia vapor and convert it
to liquid ammonia
RATIONALE: The condenser is a critical heat exchanger in the refrigeration cycle
where ammonia vapor (discharged from the compressor at high temperature and
pressure) releases heat to a cooling medium (usually water or air) and transforms
into liquid ammonia. This phase change is essential for the continuous operation of
the refrigeration cycle. The compressor (Option A) pressurizes and heats the
ammonia gas. The receiver tank (Option C) stores liquid ammonia under pressure.
A pressure gauge (Option D) measures pressure but does not function as a
condenser. While filtration (Option E) is important, it is not the primary function of
the condenser.
,3. What is the safe ammonia charge limit (SAC) for a refrigerated space in an
industrial ammonia system?
A) There is no limit; ammonia can be stored in any quantity
B) A maximum of 55 pounds regardless of room size
C) An amount determined by dividing the volume of the space by the occupancy
factor and safety margin
D) The SAC is the same for all refrigeration systems regardless of ventilation
E) SAC only applies to outdoor systems, not indoor spaces
CORRECT ANSWER: C) An amount determined by dividing the volume of the
space by the occupancy factor and safety margin
RATIONALE: The Safe Ammonia Charge (SAC) is a calculated limit that determines
the maximum allowable quantity of ammonia refrigerant in a given space. SAC is
calculated using the formula: SAC = Room Volume (cubic feet) / (Occupancy Factor ×
Safety Margin). This calculation is mandated by EPA regulations and ASHRAE
standards to ensure that even in the event of a complete system failure, ammonia
concentrations will not exceed hazardous levels for the expected occupants. Option
A is dangerous and violates regulations. Option B is arbitrary and does not account
for room size. Option D ignores the critical role of ventilation. Option E is incorrect
because SAC applies to all indoor ammonia refrigeration spaces.
4. In an ammonia refrigeration cycle, what happens in the evaporator?
A) Ammonia liquid is pressurized and heated
B) Ammonia gas is cooled and condensed
C) Ammonia liquid evaporates and absorbs heat, producing cooling at a low
temperature and low pressure
D) Ammonia is filtered and stored
E) Ammonia pressure is measured and regulated
, CORRECT ANSWER: C) Ammonia liquid evaporates and absorbs heat,
producing cooling at a low temperature and low pressure
RATIONALE: The evaporator is the component where useful cooling is produced.
Liquid ammonia circulates through the evaporator coils at low temperature and low
pressure. As warm air or product passes over the coils, the liquid ammonia absorbs
heat energy and evaporates into a gas (low-pressure ammonia vapor). This phase
change from liquid to gas is endothermic and produces the refrigeration effect that
cools the space. The low-pressure vapor then returns to the compressor to
complete the cycle. Option A describes the compressor. Option B describes the
condenser. Options D and E do not describe evaporator function.
5. What is the purpose of the receiver tank in an ammonia refrigeration
system?
A) To compress ammonia gas
B) To store liquid ammonia and provide surge capacity for system operation
C) To evaporate ammonia for cooling
D) To measure ammonia concentration in the air
E) To filter ammonia impurities
CORRECT ANSWER: B) To store liquid ammonia and provide surge capacity for
system operation
RATIONALE: The receiver tank (liquid receiver) is a pressure vessel designed to
store liquid ammonia. Its functions include: (1) providing a buffer or surge capacity
to accommodate fluctuations in system demand and condenser output, (2)
separating any remaining ammonia vapor from the liquid ammonia discharged by
the condenser, (3) providing a stable supply of liquid refrigerant to the expansion
device, and (4) allowing maintenance and isolation of system components. The
receiver must be properly sized and equipped with safety relief devices. Option A
describes the compressor. Option C describes the evaporator. Options D and E are
not primary functions of the receiver tank.
