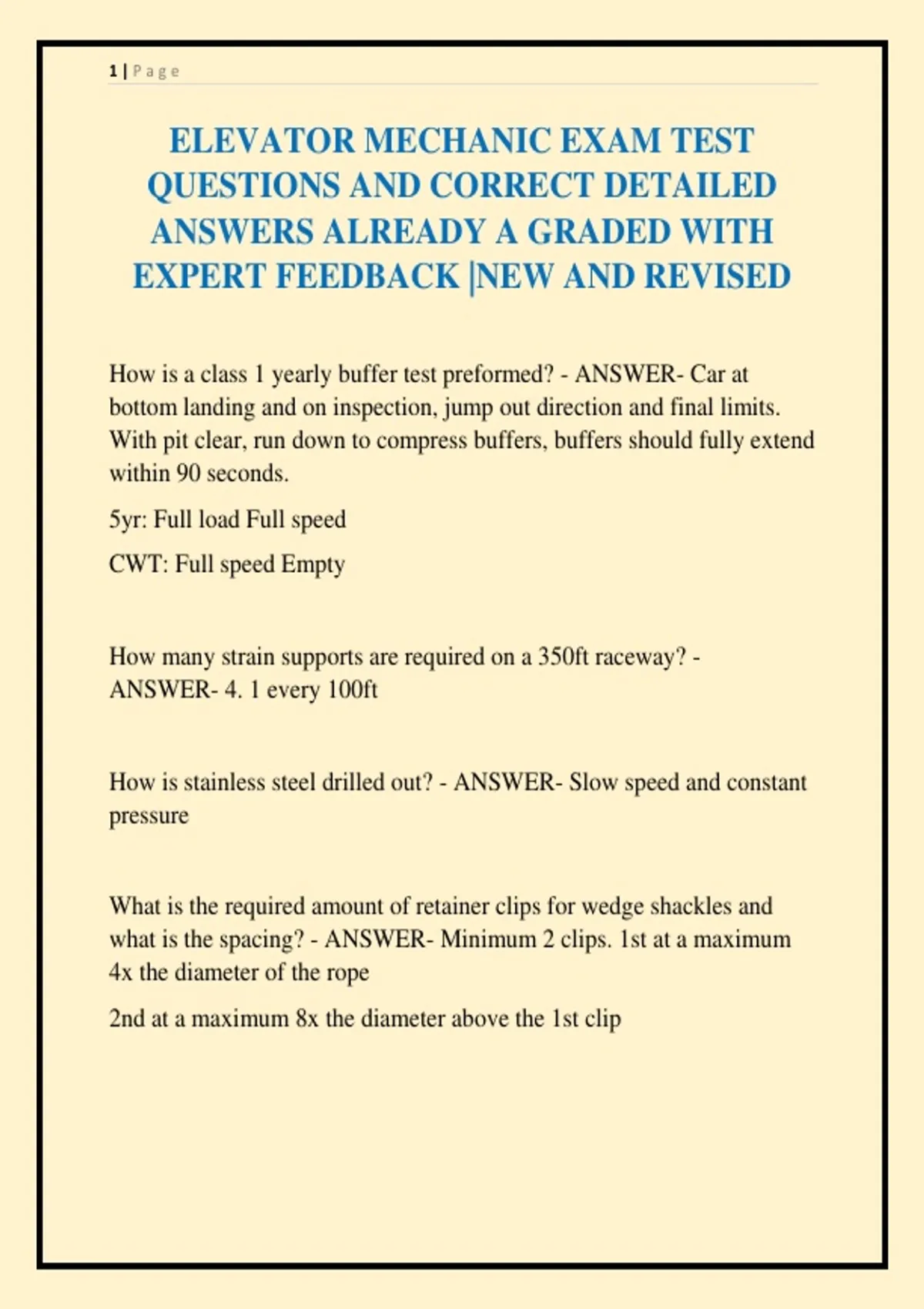

1|Page
ELEVATOR MECHANIC EXAM TEST
QUESTIONS AND CORRECT DETAILED
ANSWERS ALREADY A GRADED WITH
EXPERT FEEDBACK |NEW AND REVISED
How is a class 1 yearly buffer test preformed? - ANSWER- Car at
bottom landing and on inspection, jump out direction and final limits.
With pit clear, run down to compress buffers, buffers should fully extend
within 90 seconds.
5yr: Full load Full speed
CWT: Full speed Empty
How many strain supports are required on a 350ft raceway? -
ANSWER- 4. 1 every 100ft
How is stainless steel drilled out? - ANSWER- Slow speed and constant
pressure
What is the required amount of retainer clips for wedge shackles and
what is the spacing? - ANSWER- Minimum 2 clips. 1st at a maximum
4x the diameter of the rope
2nd at a maximum 8x the diameter above the 1st clip
,2|Page
A 300ohm resistor burns out, but you don't have another one. How can
you make one? - ANSWER- 2 600ohm resistors in parallel is 300ohms.
Resistance is half of highest resistor in parallel circuit.
3 225ohm resistors in parallel is 75ohms.
When cutting laminated panels, which direction should the finish side
face? - ANSWER- Finish side facing the cutting edge of the tool. Blade
will burr the backside
How do you cut a finished floor? - ANSWER- Cutting blade away from
finished side
A 480vac stepdown 240vac transformer is connected to a 3 phase
rectifier, what is the output voltage? - ANSWER- 320vac
3 phase full wave = 1.33x output voltage
A car is loaded with 125% and sinks, why? - ANSWER- Slipping
through the break
If you find a broken or missing barricade what should you do? -
ANSWER- Write up a formal inspection request
What are the consequences of misaligned joints on a Rack and Pinion? -
ANSWER- Broken Gear teeth. CWT derailment. Excessive wear/ crease
the surface of the tube
,3|Page
A dumbwaiter is 9sqft in area, 4ft high, and capacity is 13.9lb/ft3. What
is total capacity? - ANSWER- 9 x 4 x 13.9= 500lbs Max capacity
You must enter a pit with a toxic atmosphere, how do you proceed? -
ANSWER- Following proper OSHA procedure with proper training and
PPE
When changing a 1:1 car rated at 600fpm and 2,000lb capacity to a 2:1,
what are the new ratings? - ANSWER- 300fpm 4,000lbs capacity
Half the speed, Double the capacity
A vertical platform lift has a clearance of 1 inch. How much will it have
to move to meet code? - ANSWER- Move in ¼ inch. Code is ¾ inch
A car weighs 2500lbs with a capacity of 2500lbs, the CWT is weighted
at 40%, how much is the motor lifting when the car is fully loaded? -
ANSWER- 2500(car) + 1000(40%) 3500. 5000-3500=1500lbs lifted by
the machine
How must Oxygen and Acetylene tanks be stored? - ANSWER-
Vertically, 12 feet apart, or on a cart with a ½ hour fire barrier between
them
What is code for sill to sill distance? - ANSWER- Minimum ½ inch
Maximum 1 ½ inches
, 4|Page
When drilling a jack hole in sandy conditions what type of drill rig is
required? - ANSWER- Rotary or Auger bit. Rotary=Soft
Percussion=Rocky Combo=Solid
A customer does not want an escape hatch on a residential elevator,
under what condition is this legal? - ANSWER- Manual operation must
be provided
Your helper wired the down direction and final limit switches, now the
car will only travel up, what is the issue? - ANSWER- The down
direction limit was wired incorrectly.
What are the effects of one rope sitting deeper in the sheave groove? -
ANSWER- The rope wears out and breaks faster
There is a noise coming from a freight door. The sheave is moving, but
the chain is not. What is the problem? - ANSWER- Oil on the drive
chain
What is the effect when you change a sling angle from 60 degrees to 30
degrees? - ANSWER- More tension, less capacity. Any angle 30 or less
is dangerous
How many points of a contact must be maintained on a ladder? How far
above landing must it extend? What is proper Ratio? What steps don't
we use? - ANSWER- 3 points of contact. 3 foot above. 4:1. Top 2 steps
