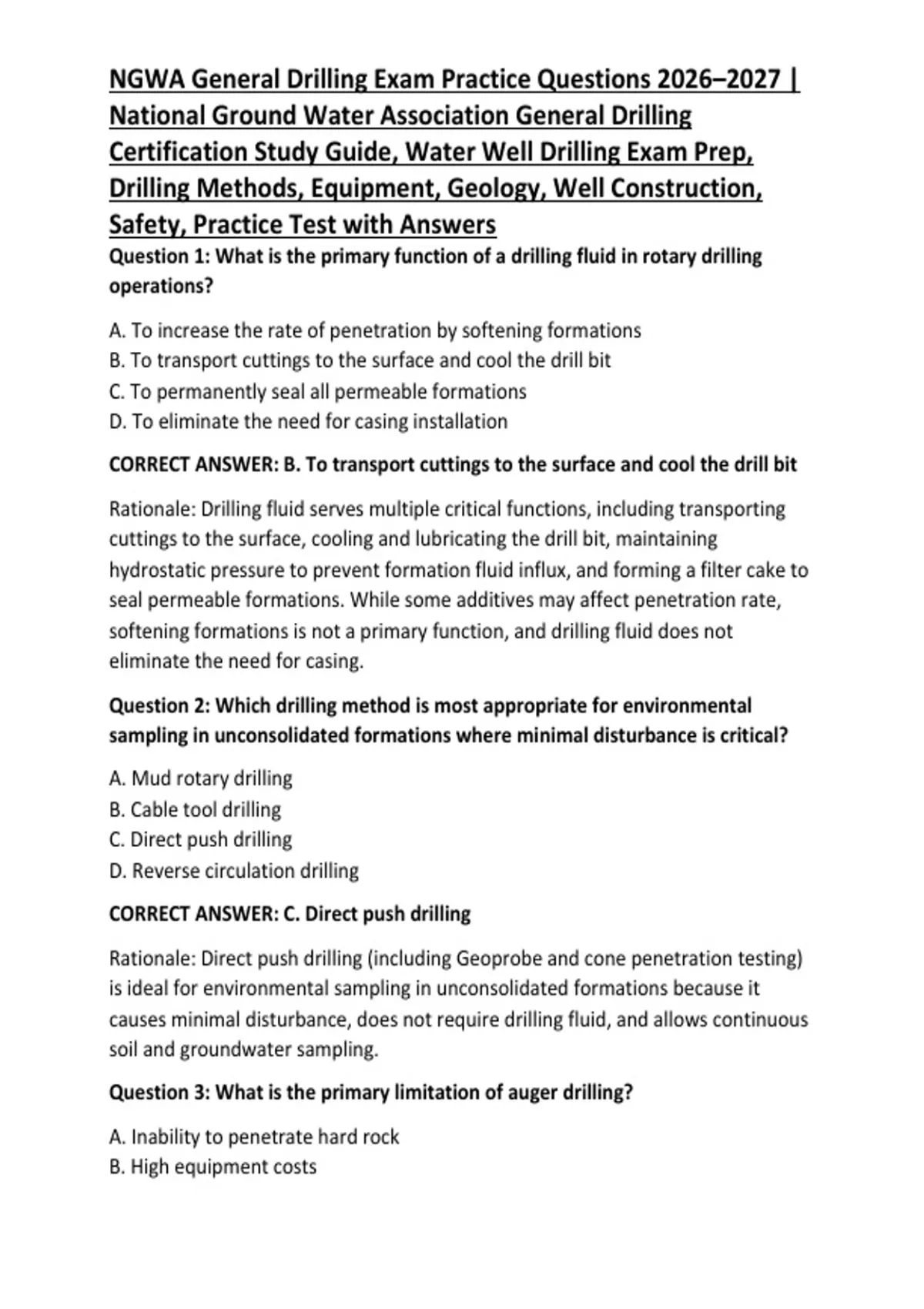

NGWA General Drilling Exam Practice Questions 2026–2027 |
National Ground Water Association General Drilling
Certification Study Guide, Water Well Drilling Exam Prep,
Drilling Methods, Equipment, Geology, Well Construction,
Safety, Practice Test with Answers
Question 1: What is the primary function of a drilling fluid in rotary drilling
operations?
A. To increase the rate of penetration by softening formations
B. To transport cuttings to the surface and cool the drill bit
C. To permanently seal all permeable formations
D. To eliminate the need for casing installation
CORRECT ANSWER: B. To transport cuttings to the surface and cool the drill bit
Rationale: Drilling fluid serves multiple critical functions, including transporting
cuttings to the surface, cooling and lubricating the drill bit, maintaining
hydrostatic pressure to prevent formation fluid influx, and forming a filter cake to
seal permeable formations. While some additives may affect penetration rate,
softening formations is not a primary function, and drilling fluid does not
eliminate the need for casing.
Question 2: Which drilling method is most appropriate for environmental
sampling in unconsolidated formations where minimal disturbance is critical?
A. Mud rotary drilling
B. Cable tool drilling
C. Direct push drilling
D. Reverse circulation drilling
CORRECT ANSWER: C. Direct push drilling
Rationale: Direct push drilling (including Geoprobe and cone penetration testing)
is ideal for environmental sampling in unconsolidated formations because it
causes minimal disturbance, does not require drilling fluid, and allows continuous
soil and groundwater sampling.
Question 3: What is the primary limitation of auger drilling?
A. Inability to penetrate hard rock
B. High equipment costs
,C. Slow penetration rates in all formations
D. Excessive water consumption
CORRECT ANSWER: A. Inability to penetrate hard rock
Rationale: Auger drilling is limited to unconsolidated and soft formations. It
cannot effectively penetrate hard rock, boulders, or cemented materials because
the auger relies on cutting and spiraling action rather than impact or rotary
crushing.
Question 4: What is the primary advantage of dual rotary drilling compared to
conventional rotary methods?
A. Lower equipment costs
B. Ability to set casing while drilling
C. Faster drilling in all formations
D. Elimination of drilling fluid requirements
CORRECT ANSWER: B. Ability to set casing while drilling
Rationale: Dual rotary drilling uses two independent rotary systems that allow
simultaneous rotation of both the drill pipe and the casing. This enables casing to
be set while drilling, which is particularly advantageous in unconsolidated
formations prone to collapse.
Question 5: What is the primary function of conductor casing in drilling
operations?
A. To support the full depth of the borehole
B. To prevent surface formation collapse and guide drilling fluid
C. To provide the primary water production zone
D. To eliminate the need for surface sealing
CORRECT ANSWER: B. To prevent surface formation collapse and guide drilling
fluid
Rationale: Conductor casing is the first casing installed and extends only a short
depth below the surface. Its primary function is to prevent unconsolidated surface
formations from collapsing into the borehole and to guide the drilling fluid
circulation system.
,Question 6: Which component of a rotary drill string connects the stationary
drilling fluid supply hose to the rotating drill string?
A. Kelly
B. Swivel
C. Drill collar
D. Stabilizer
CORRECT ANSWER: B. Swivel
Rationale: The swivel is a key component that connects the stationary drilling fluid
supply hose to the rotating drill string, allowing drilling fluid to be pumped into
the drill pipe while the string rotates.
Question 7: What is the primary advantage of sonic drilling over conventional
rotary drilling?
A. Lower equipment costs
B. Ability to drill through any formation type
C. Higher sample quality with reduced contamination
D. Faster drilling in soft formations
CORRECT ANSWER: C. Higher sample quality with reduced contamination
Rationale: Sonic drilling provides superior sample quality with minimal
disturbance to the formation, making it preferred for environmental sampling
where sample integrity is critical.
Question 8: In a mud rotary drilling operation, what does a sudden drop in
pump pressure accompanied by increased torque most likely indicate?
A. Lost circulation into a cavernous zone
B. Bit balling from clay adhesion
C. Complete drill string failure
D. Normal drilling progress
CORRECT ANSWER: B. Bit balling from clay adhesion
Rationale: Bit balling occurs when clay adheres to the bit body and blocks the
nozzles, preventing proper fluid circulation. This explains the triad of symptoms:
increased torque (bit dragging), decreased pump pressure (restricted flow), and
, minimal cuttings at the shaker. The correct action is to pull the bit, clean it, and
adjust mud properties.
Question 9: What is the primary purpose of a shale shaker in a mud circulation
system?
A. To add chemicals to the drilling fluid
B. To remove cuttings from the drilling fluid
C. To heat the drilling fluid
D. To measure mud density
CORRECT ANSWER: B. To remove cuttings from the drilling fluid
Rationale: The shale shaker is a vibrating screen that separates drill cuttings from
the returning drilling fluid, allowing the fluid to be recirculated. It is the first line
of solids control in a mud system.
Question 10: What is the typical frequency range used in sonic drilling
operations?
A. 10-30 Hz
B. 50-150 Hz
C. 200-500 Hz
D. 1000-2000 Hz
CORRECT ANSWER: B. 50-150 Hz
Rationale: Sonic drilling operates at frequencies between 50 and 150 Hz (cycles
per second). This resonant frequency creates vibration that reduces friction and
allows the casing to advance rapidly through most formations.
Question 11: What is the primary function of the blooie line in air rotary
drilling?
A. To supply air to the drill bit
B. To direct air and cuttings away from the rig
C. To measure air pressure
D. To cool the drill bit
CORRECT ANSWER: B. To direct air and cuttings away from the rig
