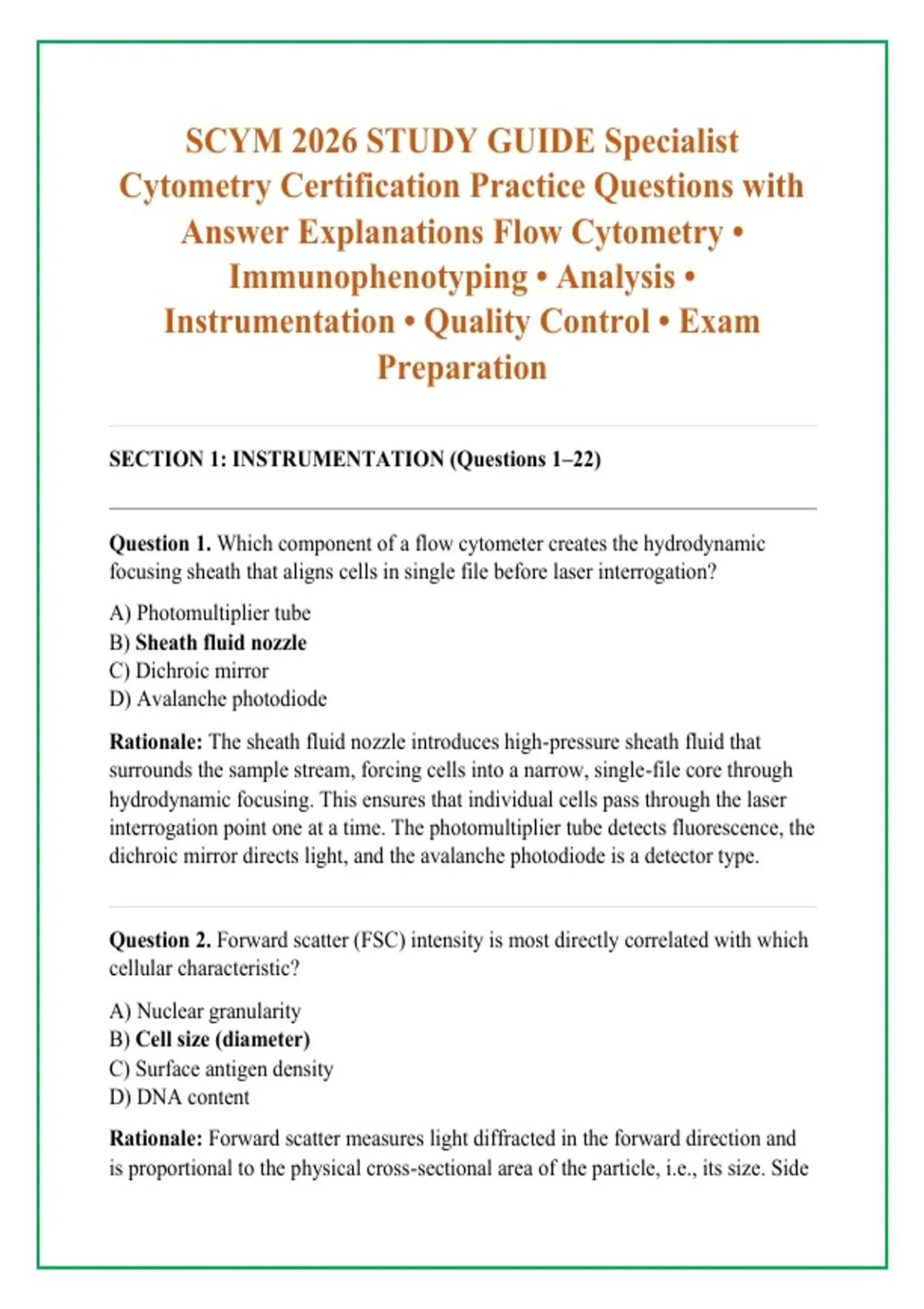

SCYM 2026 STUDY GUIDE Specialist
Cytometry Certification Practice Questions with
Answer Explanations Flow Cytometry •
Immunophenotyping • Analysis •
Instrumentation • Quality Control • Exam
Preparation
SECTION 1: INSTRUMENTATION (Questions 1–22)
Question 1. Which component of a flow cytometer creates the hydrodynamic
focusing sheath that aligns cells in single file before laser interrogation?
A) Photomultiplier tube
B) Sheath fluid nozzle
C) Dichroic mirror
D) Avalanche photodiode
Rationale: The sheath fluid nozzle introduces high-pressure sheath fluid that
surrounds the sample stream, forcing cells into a narrow, single-file core through
hydrodynamic focusing. This ensures that individual cells pass through the laser
interrogation point one at a time. The photomultiplier tube detects fluorescence, the
dichroic mirror directs light, and the avalanche photodiode is a detector type.
Question 2. Forward scatter (FSC) intensity is most directly correlated with which
cellular characteristic?
A) Nuclear granularity
B) Cell size (diameter)
C) Surface antigen density
D) DNA content
Rationale: Forward scatter measures light diffracted in the forward direction and
is proportional to the physical cross-sectional area of the particle, i.e., its size. Side
,scatter (SSC) reflects internal complexity or granularity. FSC does not measure
antigen density or DNA content.
Question 3. Side scatter (SSC) provides information primarily about:
A) Cell membrane fluidity
B) Cytoplasmic granularity and internal complexity
C) Surface protein expression
D) Mitochondrial membrane potential
Rationale: SSC detects light scattered at a 90° angle, reflecting variations in
granule content, organelle density, and overall internal complexity. Granulocytes
have high SSC due to their granular content, while lymphocytes have low SSC.
SSC does not measure surface protein expression or membrane fluidity.
Question 4. What is the primary advantage of using a solid-state laser over a gas
laser in flow cytometry?
A) Higher wavelength variability
B) Lower maintenance and longer lifespan
C) Greater beam divergence
D) Ability to emit multiple wavelengths simultaneously
Rationale: Solid-state lasers (e.g., diode, DPSS) require little maintenance, have
longer operational life, and are more compact than gas lasers such as the argon-ion
laser. Gas lasers require regular maintenance, have shorter lifespans, and are less
efficient. Solid-state lasers do not inherently emit multiple wavelengths
simultaneously.
Question 5. Which detector type offers the highest quantum efficiency for
detecting near-infrared fluorescence?
A) Photomultiplier tube (PMT)
B) Avalanche photodiode (APD)
C) Photodiode array
D) Charge-coupled device (CCD)
,Rationale: APDs have superior quantum efficiency in the near-infrared region
compared with traditional PMTs, making them ideal for dyes like APC-Cy7. PMTs
are the most common detector in flow cytometers but have lower quantum
efficiency in the near-infrared range. Photodiode arrays and CCDs are not standard
detectors for flow cytometry.
Question 6. A bandpass filter with specifications of 550/40 nm will allow light
between which wavelengths to pass through?
A) 510 nm and 590 nm
B) 530 nm and 570 nm
C) 550 nm and 590 nm
D) 510 nm and 550 nm
Rationale: A bandpass filter with a wavelength of 550/40 nm allows light between
530 nm and 570 nm to pass through (550 ± 20 nm), but reflects light below 530 nm
and above 570 nm. The first number is the center wavelength, and the second
number is the bandwidth.
Question 7. Which optical filter transmits light above a specified wavelength
while blocking shorter wavelengths?
A) Shortpass filter
B) Longpass filter
C) Bandpass filter
D) Neutral density filter
Rationale: A longpass filter transmits light above a specified wavelength (e.g., a
650 nm longpass filter transmits light above 650 nm). A shortpass filter transmits
light below a specified wavelength. A bandpass filter transmits a specific range of
wavelengths. A neutral density filter reduces light intensity equally across all
wavelengths.
Question 8. What does the "pulse height" parameter in flow cytometer electronics
represent?
, A) Total number of photons collected over the pulse duration
B) Maximum voltage reached during the pulse, reflecting instantaneous
fluorescence intensity
C) Duration of the pulse, indicating cell transit time
D) Baseline noise level of the detector
Rationale: Pulse height represents the maximum voltage reached during the pulse,
reflecting the peak (instantaneous) fluorescence intensity of the cell as it passes
through the laser. Pulse area represents the total number of photons collected, and
pulse width represents the duration of the pulse (cell transit time).
Question 9. Which laser wavelength is most suitable for exciting phycoerythrin
(PE)?
A) 488 nm (argon)
B) 633 nm (red diode)
C) 405 nm (violet)
D) 355 nm (UV)
Rationale: PE has an excitation peak near 496 nm; the 488 nm argon laser
efficiently excites it. The 633 nm red diode laser excites APC, the 405 nm violet
laser excites Pacific Blue and Brilliant Violet dyes, and the 355 nm UV laser
excites Indo-1 and DAPI.
Question 10. The Stokes shift refers to:
A) The difference between excitation and emission wavelengths of a
fluorochrome
B) The time delay between photon absorption and emission
C) The loss of photons in the detector
D) The overlap of emission spectra between fluorochromes
Rationale: The Stokes shift is the spectral gap between a fluorochrome's excitation
peak and its emission peak. A larger Stokes shift allows better separation of
excitation and emission light, reducing background. It is not a time delay or a
measure of spectral overlap.
