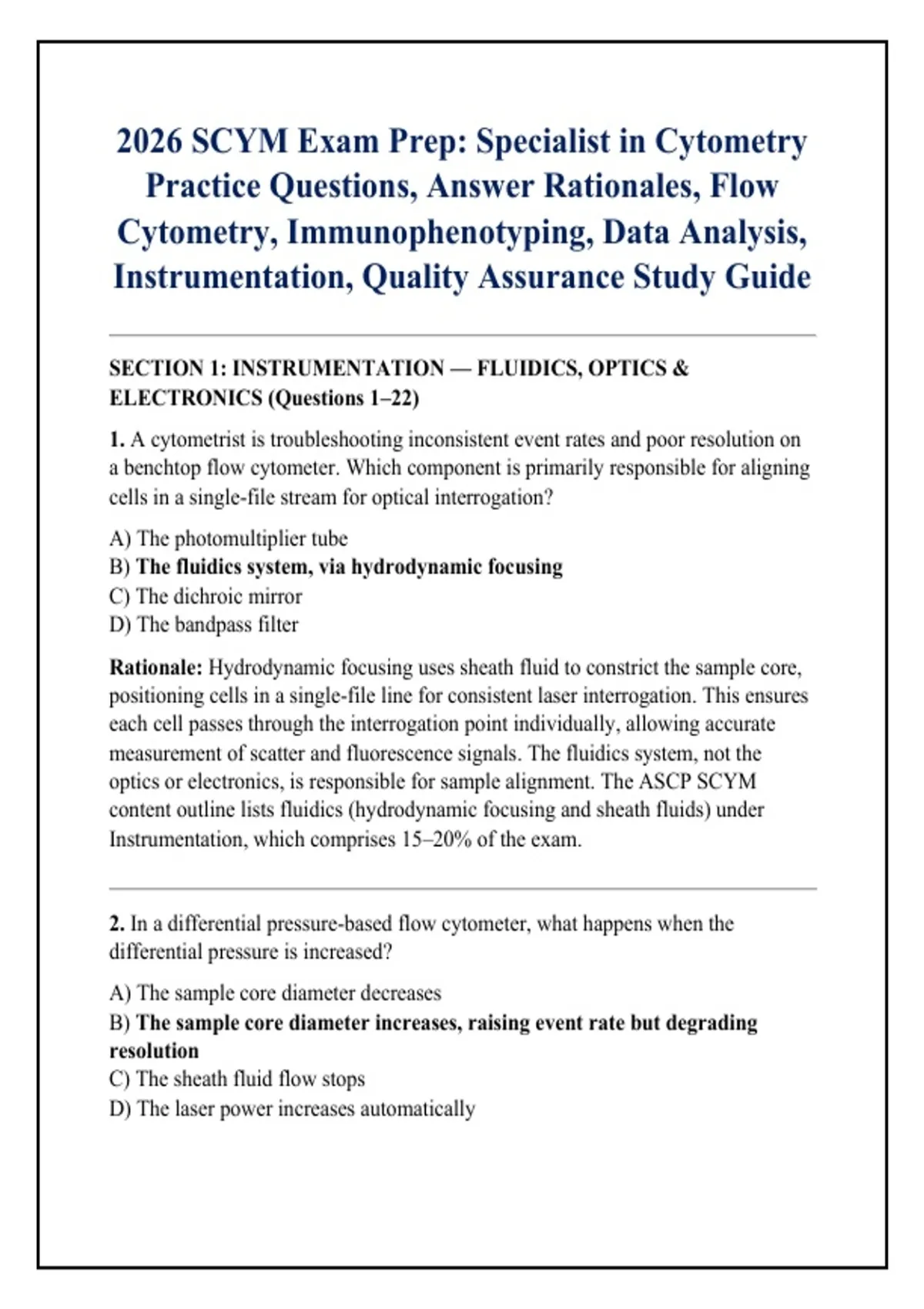

2026 SCYM Exam Prep: Specialist in Cytometry
Practice Questions, Answer Rationales, Flow
Cytometry, Immunophenotyping, Data Analysis,
Instrumentation, Quality Assurance Study Guide
SECTION 1: INSTRUMENTATION — FLUIDICS, OPTICS &
ELECTRONICS (Questions 1–22)
1. A cytometrist is troubleshooting inconsistent event rates and poor resolution on
a benchtop flow cytometer. Which component is primarily responsible for aligning
cells in a single-file stream for optical interrogation?
A) The photomultiplier tube
B) The fluidics system, via hydrodynamic focusing
C) The dichroic mirror
D) The bandpass filter
Rationale: Hydrodynamic focusing uses sheath fluid to constrict the sample core,
positioning cells in a single-file line for consistent laser interrogation. This ensures
each cell passes through the interrogation point individually, allowing accurate
measurement of scatter and fluorescence signals. The fluidics system, not the
optics or electronics, is responsible for sample alignment. The ASCP SCYM
content outline lists fluidics (hydrodynamic focusing and sheath fluids) under
Instrumentation, which comprises 15–20% of the exam.
2. In a differential pressure-based flow cytometer, what happens when the
differential pressure is increased?
A) The sample core diameter decreases
B) The sample core diameter increases, raising event rate but degrading
resolution
C) The sheath fluid flow stops
D) The laser power increases automatically
,Rationale: Increasing the differential pressure by raising sample pressure relative
to sheath pressure widens the sample core stream. This increases event rate but
degrades resolution, as cells may cross different paths of the laser beam,
experiencing unequal illumination. A narrower core (achieved by lowering sample
pressure) improves resolution but reduces event rate. This is a fundamental trade-
off in flow cytometry acquisition.
3. Which sample delivery method uses mechanical oscillation that can cause flow-
rate fluctuations?
A) Pressure-based delivery
B) Vacuum-based delivery
C) Syringe pump-driven delivery
D) Acoustic focusing
Rationale: In syringe-pump-driven microfluidic systems, the electrical stepper
motor creates mechanical oscillations that generate flow-rate fluctuations, leading
to pressure fluctuations in the channel flow. Pressure-based delivery (differential
pressure) is the most common method in traditional cytometers. Acoustic focusing
uses sound waves to align cells and is less prone to mechanical fluctuation.
4. What is the function of the obscuration bar in the forward scatter (FSC) optical
path?
A) To amplify the scattered light signal
B) To block unscattered direct laser light from saturating the detector
C) To filter out fluorescence emission
D) To focus the scattered light onto the photodiode
Rationale: The primary laser beam is intensely bright. Without the obscuration
bar, direct unscattered laser light would saturate or damage the forward scatter
photodiode. The bar blocks this direct light, allowing only scattered light (which is
proportional to cell size) to reach the detector. This is a critical optical component
for FSC measurement.
,5. A cytometrist notices that the forward scatter (FSC) signal is very low for all
samples. Which instrument component is most likely malfunctioning?
A) The 488 nm laser
B) The FSC photodiode or the obscuration bar alignment
C) The PMT for FL1
D) The sheath fluid reservoir
Rationale: FSC is detected by a photodiode, not a PMT. A low FSC signal across
all samples suggests either the photodiode is failing, the obscuration bar is
misaligned (blocking too much light), or the laser is not properly focused on the
flow cell. The 488 nm laser could be the issue, but FSC is specifically detected by
the photodiode. PMTs are used for fluorescence and side scatter, not FSC.
6. Which of the following best describes the function of a dichroic mirror in a flow
cytometer?
A) It absorbs all scattered light
B) It reflects light below a certain wavelength and transmits light above that
wavelength (or vice versa)
C) It converts fluorescence into electrical signals
D) It focuses the laser beam onto the flow cell
Rationale: Dichroic mirrors (also called beam splitters) separate light based on
wavelength. They reflect certain wavelengths and transmit others, directing
specific fluorescence signals to the appropriate detectors. This wavelength-
selective reflection/transmission is the foundation of multicolor flow cytometry.
Dichroic mirrors do not absorb light, convert signals, or focus the laser.
7. A cytometrist is setting up a 4-color panel using a 488 nm laser. Which
fluorochrome is most appropriately detected in the FL1 channel (typically 530/30
nm)?
A) PE
B) FITC
C) PerCP
D) APC
, Rationale: FITC (fluorescein isothiocyanate) has an emission maximum around
519 nm and is detected in the FL1 channel (typically 530/30 nm) with a 488 nm
laser. PE emits around 578 nm (FL2), PerCP around 677 nm (FL3), and APC is
excited by the red laser (633 nm), not the blue laser. Proper fluorochrome-to-
channel matching is essential for panel design.
8. What is the primary function of a photomultiplier tube (PMT) in a flow
cytometer?
A) To generate the laser beam
B) To convert weak fluorescence signals into amplified electrical signals
C) To align cells in a single-file stream
D) To block unscattered laser light
Rationale: PMTs are highly sensitive detectors that convert photons (from
fluorescence or side scatter) into electrical signals and amplify them. They are used
for fluorescence detection and side scatter (SSC) because these signals are much
weaker than forward scatter. PMTs do not generate lasers, align cells, or block
light—these are functions of the laser, fluidics, and obscuration bar, respectively.
9. A cytometrist observes that the side scatter (SSC) signal is abnormally high for
all samples. What is the most likely cause?
A) The laser power is too low
B) The PMT voltage for SSC is set too high
C) The sheath fluid is contaminated
D) The sample core diameter is too narrow
Rationale: SSC is detected by a PMT, and its signal intensity is directly controlled
by the PMT voltage. If the SSC PMT voltage is set too high, the signal will be
amplified excessively, resulting in abnormally high SSC values. Laser power
affects excitation, not detection gain. Sheath fluid contamination would affect
background, not uniformly elevate SSC. Core diameter affects resolution, not
signal intensity.
