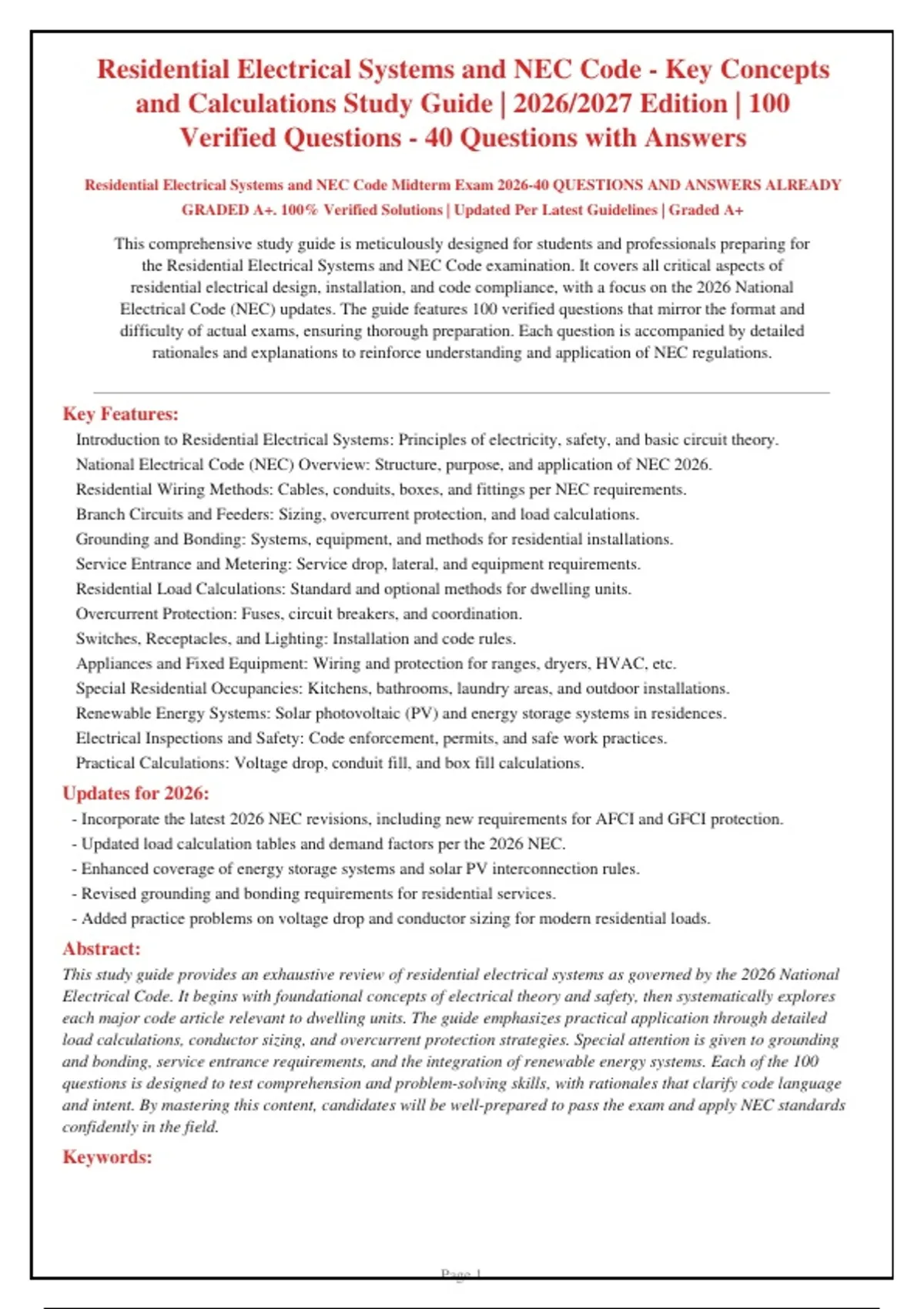

Residential Electrical Systems and NEC Code - Key Concepts
and Calculations Study Guide | 2026/2027 Edition | 100
Verified Questions - 40 Questions with Answers
Residential Electrical Systems and NEC Code Midterm Exam 2026-40 QUESTIONS AND ANSWERS ALREADY
GRADED A+. 100% Verified Solutions | Updated Per Latest Guidelines | Graded A+
This comprehensive study guide is meticulously designed for students and professionals preparing for
the Residential Electrical Systems and NEC Code examination. It covers all critical aspects of
residential electrical design, installation, and code compliance, with a focus on the 2026 National
Electrical Code (NEC) updates. The guide features 100 verified questions that mirror the format and
difficulty of actual exams, ensuring thorough preparation. Each question is accompanied by detailed
rationales and explanations to reinforce understanding and application of NEC regulations.
Key Features:
Introduction to Residential Electrical Systems: Principles of electricity, safety, and basic circuit theory.
National Electrical Code (NEC) Overview: Structure, purpose, and application of NEC 2026.
Residential Wiring Methods: Cables, conduits, boxes, and fittings per NEC requirements.
Branch Circuits and Feeders: Sizing, overcurrent protection, and load calculations.
Grounding and Bonding: Systems, equipment, and methods for residential installations.
Service Entrance and Metering: Service drop, lateral, and equipment requirements.
Residential Load Calculations: Standard and optional methods for dwelling units.
Overcurrent Protection: Fuses, circuit breakers, and coordination.
Switches, Receptacles, and Lighting: Installation and code rules.
Appliances and Fixed Equipment: Wiring and protection for ranges, dryers, HVAC, etc.
Special Residential Occupancies: Kitchens, bathrooms, laundry areas, and outdoor installations.
Renewable Energy Systems: Solar photovoltaic (PV) and energy storage systems in residences.
Electrical Inspections and Safety: Code enforcement, permits, and safe work practices.
Practical Calculations: Voltage drop, conduit fill, and box fill calculations.
Updates for 2026:
- Incorporate the latest 2026 NEC revisions, including new requirements for AFCI and GFCI protection.
- Updated load calculation tables and demand factors per the 2026 NEC.
- Enhanced coverage of energy storage systems and solar PV interconnection rules.
- Revised grounding and bonding requirements for residential services.
- Added practice problems on voltage drop and conductor sizing for modern residential loads.
Abstract:
This study guide provides an exhaustive review of residential electrical systems as governed by the 2026 National
Electrical Code. It begins with foundational concepts of electrical theory and safety, then systematically explores
each major code article relevant to dwelling units. The guide emphasizes practical application through detailed
load calculations, conductor sizing, and overcurrent protection strategies. Special attention is given to grounding
and bonding, service entrance requirements, and the integration of renewable energy systems. Each of the 100
questions is designed to test comprehension and problem-solving skills, with rationales that clarify code language
and intent. By mastering this content, candidates will be well-prepared to pass the exam and apply NEC standards
confidently in the field.
Keywords:
Page 1
,Residential electrical systems, NEC 2026, Load calculations, Grounding and bonding, Branch circuits,
Overcurrent protection, Solar PV systems, Electrical code compliance
Answer Format:
Each question is presented in multiple-choice format with four options. The correct answer is provided along with a
detailed rationale explaining the applicable NEC section and calculation method. Distractor explanations are
included to clarify common misconceptions and reinforce correct reasoning.
Compliance Checklist:
All questions are aligned with the 2026 National Electrical Code (NEC).
Calculations follow the latest standards for residential load and conductor sizing.
Content covers all major domains of the residential electrical curriculum.
Rationales cite specific NEC articles and tables for verification.
Questions reflect the format and difficulty of the actual certification exam.
Updates include recent code changes effective in 2026.
Content Area Overview:
Content Area Questions Key Topics Weight
Fundamentals and NEC 1-10 Electrical theory, safety, NEC structure, 10%
Overview definitions
Wiring Methods and Materials 11-20 Cables, conduits, boxes, fittings, wire types 10%
Branch Circuits and Feeders 21-30 Circuit sizing, overcurrent protection, 10%
multiwire circuits
Grounding and Bonding 31-40 System grounding, equipment grounding, 10%
bonding requirements
Service Entrance and Metering 41-50 Service drop, lateral, service equipment, 10%
disconnects
Load Calculations 51-60 Standard method, optional method, demand 10%
factors
Overcurrent Protection and 61-70 Fuses, breakers, AFCI, GFCI, coordination 10%
Devices
Wiring Devices and Lighting 71-80 Switches, receptacles, lighting fixtures, 10%
dimmers
Appliances and Fixed 81-90 Ranges, dryers, water heaters, HVAC, 10%
Equipment motors
Special Systems and Renewable 91-100 Solar PV, energy storage, generators, electric 10%
Energy vehicle supply equipment
Page 2
, Q1. A 240V, 12kW electric range is supplied by a 3-wire branch circuit. Per 2023
NEC 422.10 and Table 220.55, what is the minimum branch-circuit rating and
ampacity of the ungrounded conductors?
A. 40A, size 8 AWG
B. 50A, size 6 AWG
C. 60A, size 6 AWG
D. 40A, size 6 AWG
Correct Answer: A. 40A, size 8 AWG
Rationale: Per NEC Table 220.55, a single range rated 12kW requires a demand of 8kW
(12kW minus 4kW for the first 12kW). The branch circuit rating is then 8000VA / 240V =
33.3A, and per 422.10 the minimum rating is 40A. Using 60°C terminals, 8 AWG copper is
rated 40A, satisfying the requirement.
Why Wrong:
B - 50A is too large for a 12kW range; the demand is 8kW, not 12kW.
C - 60A is excessive; it would be required only for a range rated over 16.5kW.
D - 6 AWG is larger than necessary for a 40A circuit; 8 AWG suffices.
Reference: 2023 NEC Table 220.55, 422.10
Q2. In a 120/240V single-phase service, the grounded conductor must be sized to
carry the maximum unbalanced load. For a dwelling with a calculated neutral load of
120A and a 200A service, what is the minimum required ampacity of the neutral
conductor?
A. 120A
B. 200A
C. 100A
D. 150A
Correct Answer: A. 120A
Rationale: NEC 220.61 requires the neutral to be sized for the maximum unbalanced load,
which is 120A. It does not need to be larger than the ungrounded conductors, but it must
be at least the calculated neutral demand. Thus 120A is the minimum ampacity.
Why Wrong:
B - 200A would be required only if the neutral carried full phase load, which is not the
case.
C - 100A is less than the calculated neutral load of 120A, violating 220.61.
D - 150A is arbitrary and exceeds the minimum required ampacity.
Reference: 2023 NEC 220.61
Page 3
