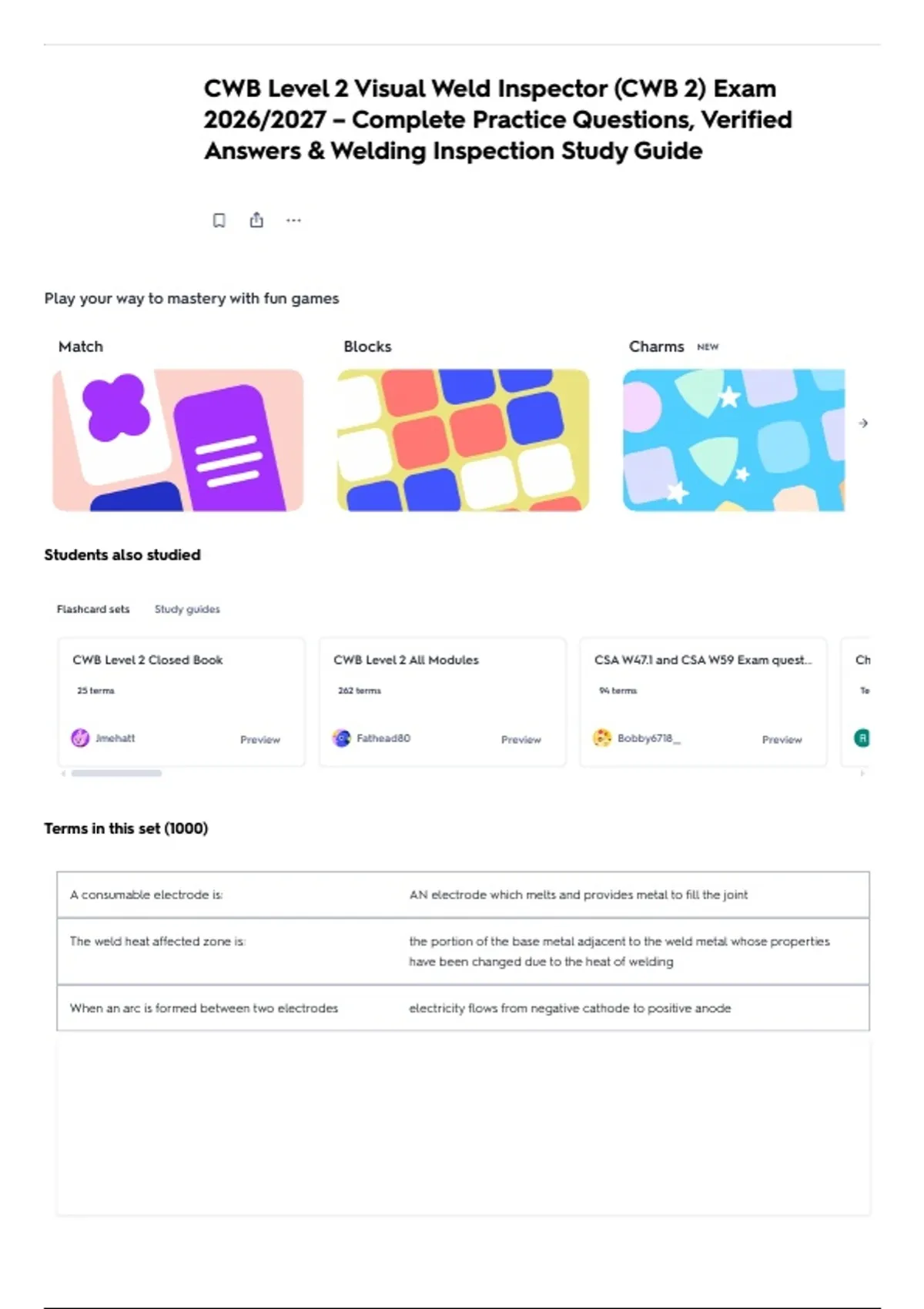

CWB Level 2 Visual Weld Inspector (CWB 2) Exam
2026/2027 – Complete Practice Questions, Verified
Answers & Welding Inspection Study Guide
Play your way to mastery with fun games
Match Blocks Charms NEW
Students also studied
Flashcard sets Study guides
CWB Level 2 Closed Book CWB Level 2 All Modules CSA W47.1 and CSA W59 Exam quest... Ch
25 terms 262 terms 94 terms Te
Jmehatt Preview Fathead80 Preview Bobby6718__ Preview
Terms in this set (1000)
A consumable electrode is: AN electrode which melts and provides metal to fill the joint
The weld heat affected zone is: the portion of the base metal adjacent to the weld metal whose properties
have been changed due to the heat of welding
When an arc is formed between two electrodes electricity flows from negative cathode to positive anode
, The magnetic pinch force helps in the process of the increases as the square of the current causing smaller and smaller droplets to
detaching the molten metal drops from the electrode be detached
tip. The magnetic force
The electric current for welding must be transformed High voltage, low amperage to low voltage, high amperage
from
The major advantage of electron beam welding full penetration welds on thick material in one pass
process is
The progress of welding with Electroslag welding Vertical up
process is
Explosion welding is solid state process in which coalescence is produced through high speed
impacting of two or more materials by controlled detonation
A typical application for thermite welding is joining of rails
Welding without filler metal with GTAW process is autogenous welding
referred to as
A typical weld flaw associated with GTAW process is porosity
SMAW power sources typically have a volt-ampere drooping
curve that is
Once a box of E49XX low hydrogen electrodes has 4 hours
been opened the electrodes may remain at ambient
temperature for up to a maximum of
Shielded Metal ARC Welding (SMAW) process establishes an arc between the end of a covered electrode and the work piece.
The spray mode of metal transfer is achieved with high amperage, high voltage and argon-rich shielding gas
digital wire feeders have feedback systems to maintain the preset wire feed speed
wire designated by CSA standard W48 as an E491T- Results in weld deposit with a maximum of 8 ml diffusible hydrogen per 100 g
9MJ-H8 of weld metal
Self shield flux cored wires are better able to tolerate air currents
The AWS classes metal cored wire along with solid wires
