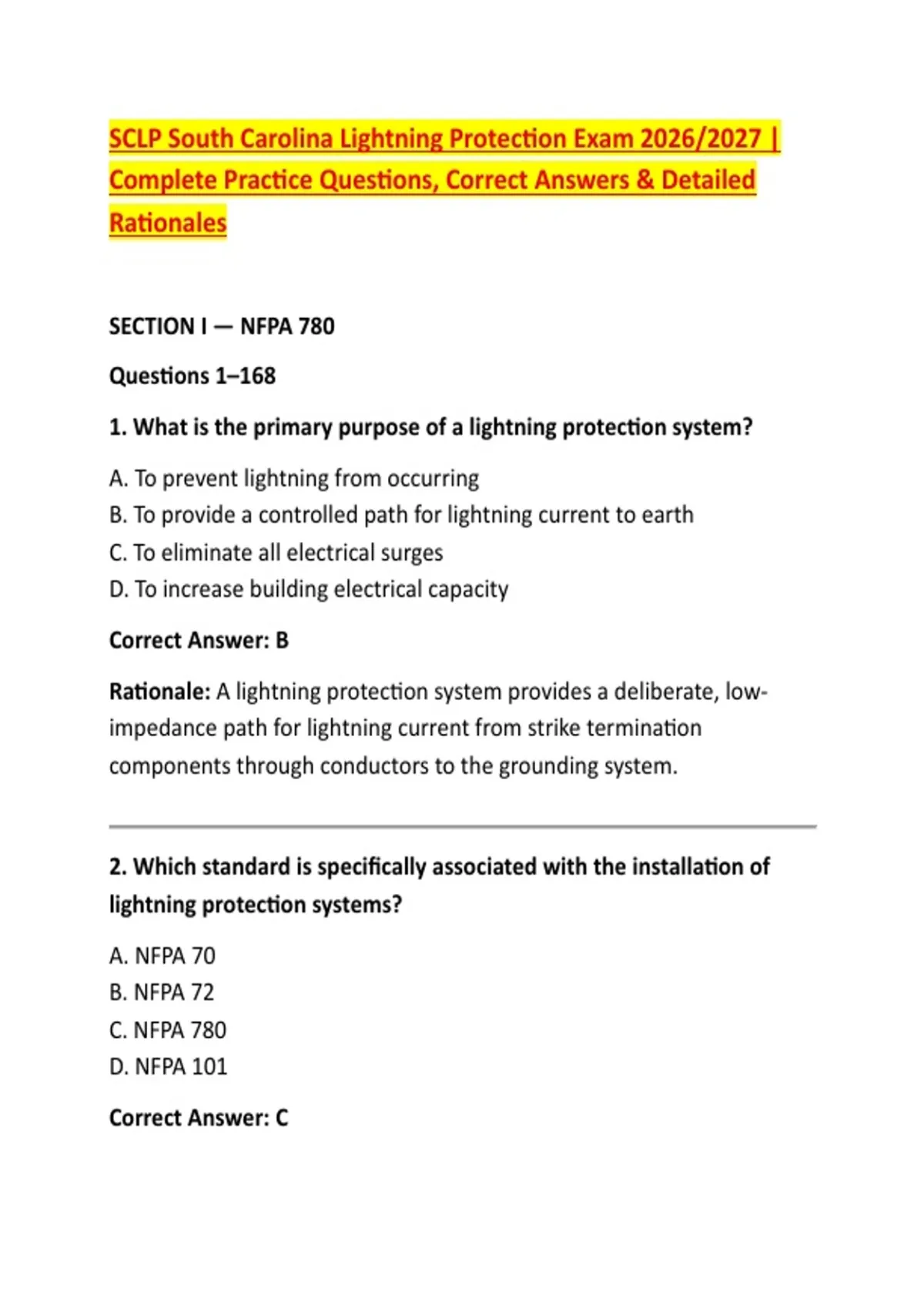

SCLP South Carolina Lightning Protection Exam 2026/2027 |
Complete Practice Questions, Correct Answers & Detailed
Rationales
SECTION I — NFPA 780
Questions 1–168
1. What is the primary purpose of a lightning protection system?
A. To prevent lightning from occurring
B. To provide a controlled path for lightning current to earth
C. To eliminate all electrical surges
D. To increase building electrical capacity
Correct Answer: B
Rationale: A lightning protection system provides a deliberate, low-
impedance path for lightning current from strike termination
components through conductors to the grounding system.
2. Which standard is specifically associated with the installation of
lightning protection systems?
A. NFPA 70
B. NFPA 72
C. NFPA 780
D. NFPA 101
Correct Answer: C
,Rationale: NFPA 780 is the principal standard governing the installation
of lightning protection systems.
3. Which component is normally intended to intercept a lightning
strike?
A. Ground rod
B. Air terminal
C. Bonding jumper
D. Surge protector
Correct Answer: B
Rationale: Air terminals, commonly called lightning rods, are strike-
termination components intended to provide preferred points for
lightning attachment.
4. A lightning protection system primarily protects a structure by:
A. Blocking lightning above the roof
B. Diverting lightning current through intentional conductive paths
C. Increasing building resistance
D. Eliminating atmospheric charge
Correct Answer: B
Rationale: The system controls the path of lightning current rather than
preventing lightning itself.
,5. Which component connects an air terminal to the grounding
system?
A. Down conductor
B. Insulator
C. Transformer
D. Fuse
Correct Answer: A
Rationale: Down conductors carry lightning current from roof-level
strike termination components toward the grounding electrodes.
6. What is a major objective of bonding in a lightning protection
system?
A. Increase voltage differences
B. Reduce dangerous potential differences
C. Increase conductor resistance
D. Isolate all metal
Correct Answer: B
Rationale: Bonding helps keep conductive parts at similar electrical
potential and reduces the possibility of sideflash.
7. Which condition creates the greatest concern for sideflash?
A. Conductive objects at significantly different potentials
B. Properly bonded metal
, C. Short conductors
D. Adequate grounding
Correct Answer: A
Rationale: Sideflash can occur when lightning current creates a
substantial voltage difference between nearby conductive objects.
8. What is the primary function of a grounding electrode in a lightning
protection system?
A. Store lightning energy
B. Provide a connection between the system and earth
C. Increase circuit voltage
D. Prevent all ground currents
Correct Answer: B
Rationale: The grounding electrode provides the intentional connection
through which lightning current is dispersed into the earth.
9. Which characteristic is particularly important for lightning
conductors?
A. High resistance
B. Adequate conductivity and mechanical durability
C. Magnetic insulation
D. Electrical isolation
Correct Answer: B
