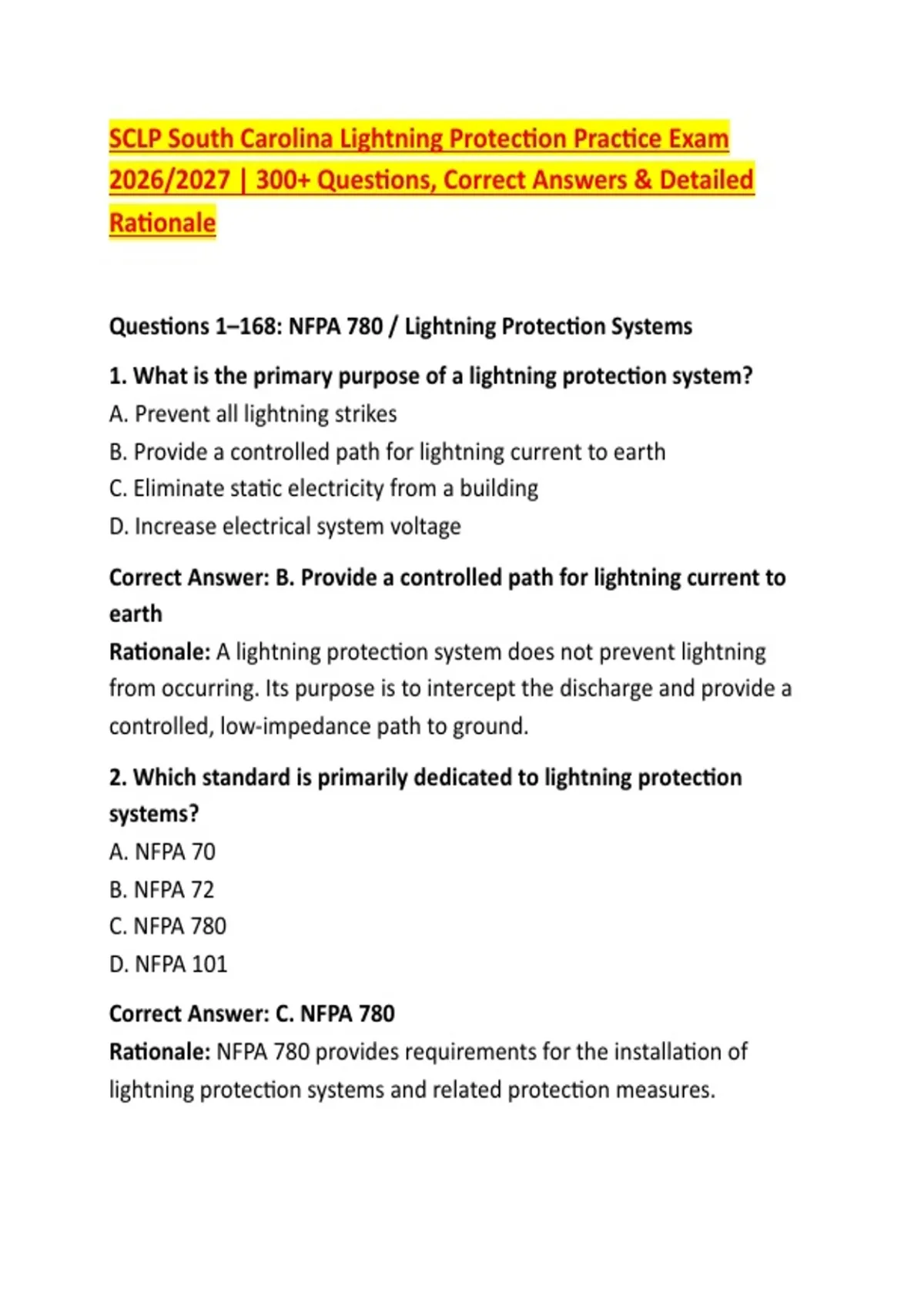

SCLP South Carolina Lightning Protection Practice Exam
2026/2027 | 300+ Questions, Correct Answers & Detailed
Rationale
Questions 1–168: NFPA 780 / Lightning Protection Systems
1. What is the primary purpose of a lightning protection system?
A. Prevent all lightning strikes
B. Provide a controlled path for lightning current to earth
C. Eliminate static electricity from a building
D. Increase electrical system voltage
Correct Answer: B. Provide a controlled path for lightning current to
earth
Rationale: A lightning protection system does not prevent lightning
from occurring. Its purpose is to intercept the discharge and provide a
controlled, low-impedance path to ground.
2. Which standard is primarily dedicated to lightning protection
systems?
A. NFPA 70
B. NFPA 72
C. NFPA 780
D. NFPA 101
Correct Answer: C. NFPA 780
Rationale: NFPA 780 provides requirements for the installation of
lightning protection systems and related protection measures.
,3. Which component is commonly installed at the highest portions of
a protected structure to intercept lightning?
A. Ground rod
B. Air terminal
C. Circuit breaker
D. Transformer
Correct Answer: B. Air terminal
Rationale: Air terminals, also called strike termination devices, are
positioned to intercept lightning before the discharge reaches
vulnerable building components.
4. What is another common name for an air terminal?
A. Bonding jumper
B. Ground clamp
C. Strike termination device
D. Service conductor
Correct Answer: C. Strike termination device
Rationale: NFPA 780 uses the concept of strike termination devices for
components intended to intercept lightning.
5. A down conductor primarily serves what function?
A. Carries normal building loads
B. Carries lightning current toward the grounding system
C. Supplies power to rooftop equipment
D. Protects against overloads
Correct Answer: B. Carries lightning current toward the grounding
system
Rationale: Down conductors form the conductive path between the
,lightning protection system on the structure and the grounding
electrodes.
6. Why should lightning protection conductors generally follow direct
routes?
A. To reduce paint usage
B. To reduce inductive impedance and voltage rise
C. To increase conductor resistance
D. To improve appearance only
Correct Answer: B. To reduce inductive impedance and voltage rise
Rationale: Lightning currents rise extremely rapidly. Sharp bends and
unnecessarily long routes increase inductive effects and can encourage
sideflash.
7. Which characteristic is especially important for a lightning current
path?
A. High resistance
B. Low impedance
C. High capacitance
D. High inductance
Correct Answer: B. Low impedance
Rationale: Lightning is a high-frequency transient event, so the system
must provide a low-impedance path rather than relying only on low DC
resistance.
8. What is the primary function of a grounding electrode system in
lightning protection?
A. Store lightning energy permanently
B. Dissipate lightning current into the earth
, C. Increase building voltage
D. Operate circuit breakers
Correct Answer: B. Dissipate lightning current into the earth
Rationale: Grounding electrodes provide the interface between the
lightning protection conductors and the earth.
9. What is equipotential bonding intended to reduce?
A. Lighting levels
B. Voltage differences between conductive parts
C. Conductor diameter
D. Roof loading
Correct Answer: B. Voltage differences between conductive parts
Rationale: Bonding conductive systems together helps keep them at
similar potentials during a lightning event, reducing dangerous arcing.
10. A sideflash occurs when lightning current:
A. Completely disappears in the conductor
B. Jumps from the intended path to another conductive object
C. Travels only underground
D. Becomes ordinary utility current
Correct Answer: B. Jumps from the intended path to another
conductive object
Rationale: Sideflash can occur when the voltage difference between a
lightning conductor and a nearby conductive object becomes large
enough to initiate an arc.
11. Which condition can increase the likelihood of sideflash?
A. Adequate bonding
B. Excessive separation from the intended path
2026/2027 | 300+ Questions, Correct Answers & Detailed
Rationale
Questions 1–168: NFPA 780 / Lightning Protection Systems
1. What is the primary purpose of a lightning protection system?
A. Prevent all lightning strikes
B. Provide a controlled path for lightning current to earth
C. Eliminate static electricity from a building
D. Increase electrical system voltage
Correct Answer: B. Provide a controlled path for lightning current to
earth
Rationale: A lightning protection system does not prevent lightning
from occurring. Its purpose is to intercept the discharge and provide a
controlled, low-impedance path to ground.
2. Which standard is primarily dedicated to lightning protection
systems?
A. NFPA 70
B. NFPA 72
C. NFPA 780
D. NFPA 101
Correct Answer: C. NFPA 780
Rationale: NFPA 780 provides requirements for the installation of
lightning protection systems and related protection measures.
,3. Which component is commonly installed at the highest portions of
a protected structure to intercept lightning?
A. Ground rod
B. Air terminal
C. Circuit breaker
D. Transformer
Correct Answer: B. Air terminal
Rationale: Air terminals, also called strike termination devices, are
positioned to intercept lightning before the discharge reaches
vulnerable building components.
4. What is another common name for an air terminal?
A. Bonding jumper
B. Ground clamp
C. Strike termination device
D. Service conductor
Correct Answer: C. Strike termination device
Rationale: NFPA 780 uses the concept of strike termination devices for
components intended to intercept lightning.
5. A down conductor primarily serves what function?
A. Carries normal building loads
B. Carries lightning current toward the grounding system
C. Supplies power to rooftop equipment
D. Protects against overloads
Correct Answer: B. Carries lightning current toward the grounding
system
Rationale: Down conductors form the conductive path between the
,lightning protection system on the structure and the grounding
electrodes.
6. Why should lightning protection conductors generally follow direct
routes?
A. To reduce paint usage
B. To reduce inductive impedance and voltage rise
C. To increase conductor resistance
D. To improve appearance only
Correct Answer: B. To reduce inductive impedance and voltage rise
Rationale: Lightning currents rise extremely rapidly. Sharp bends and
unnecessarily long routes increase inductive effects and can encourage
sideflash.
7. Which characteristic is especially important for a lightning current
path?
A. High resistance
B. Low impedance
C. High capacitance
D. High inductance
Correct Answer: B. Low impedance
Rationale: Lightning is a high-frequency transient event, so the system
must provide a low-impedance path rather than relying only on low DC
resistance.
8. What is the primary function of a grounding electrode system in
lightning protection?
A. Store lightning energy permanently
B. Dissipate lightning current into the earth
, C. Increase building voltage
D. Operate circuit breakers
Correct Answer: B. Dissipate lightning current into the earth
Rationale: Grounding electrodes provide the interface between the
lightning protection conductors and the earth.
9. What is equipotential bonding intended to reduce?
A. Lighting levels
B. Voltage differences between conductive parts
C. Conductor diameter
D. Roof loading
Correct Answer: B. Voltage differences between conductive parts
Rationale: Bonding conductive systems together helps keep them at
similar potentials during a lightning event, reducing dangerous arcing.
10. A sideflash occurs when lightning current:
A. Completely disappears in the conductor
B. Jumps from the intended path to another conductive object
C. Travels only underground
D. Becomes ordinary utility current
Correct Answer: B. Jumps from the intended path to another
conductive object
Rationale: Sideflash can occur when the voltage difference between a
lightning conductor and a nearby conductive object becomes large
enough to initiate an arc.
11. Which condition can increase the likelihood of sideflash?
A. Adequate bonding
B. Excessive separation from the intended path
