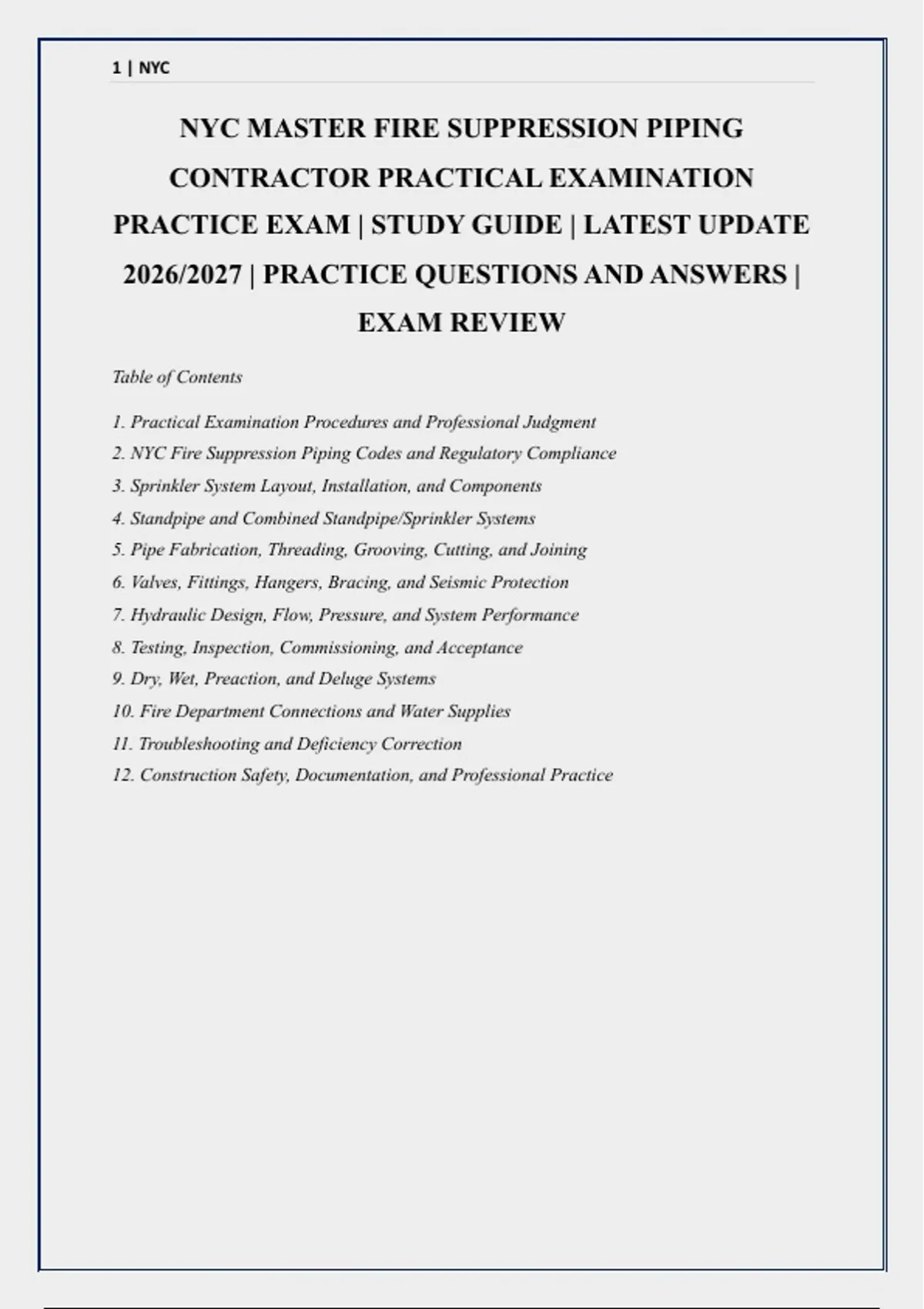

1 | NYC
NYC MASTER FIRE SUPPRESSION PIPING
CONTRACTOR PRACTICAL EXAMINATION
PRACTICE EXAM | STUDY GUIDE | LATEST UPDATE
2026/2027 | PRACTICE QUESTIONS AND ANSWERS |
EXAM REVIEW
Table of Contents
1. Practical Examination Procedures and Professional Judgment
2. NYC Fire Suppression Piping Codes and Regulatory Compliance
3. Sprinkler System Layout, Installation, and Components
4. Standpipe and Combined Standpipe/Sprinkler Systems
5. Pipe Fabrication, Threading, Grooving, Cutting, and Joining
6. Valves, Fittings, Hangers, Bracing, and Seismic Protection
7. Hydraulic Design, Flow, Pressure, and System Performance
8. Testing, Inspection, Commissioning, and Acceptance
9. Dry, Wet, Preaction, and Deluge Systems
10. Fire Department Connections and Water Supplies
11. Troubleshooting and Deficiency Correction
12. Construction Safety, Documentation, and Professional Practice
,2 | NYC
Question 1: During installation of a wet-pipe sprinkler system, a contractor discovers that a
branch line shown on the approved drawings conflicts with an existing structural beam. What
is the most appropriate first action?
A) Relocate the pipe immediately using the shortest practical route
B) Reduce the pipe diameter to obtain additional clearance
C) Stop the affected installation and resolve the conflict through the approved design/change
process
D) Remove the structural member if it does not appear to carry a load
Correct Answer: C) Stop the affected installation and resolve the conflict through the
approved design/change process
A field modification that can affect hydraulic performance, clearances, structural integrity, or
code compliance should not be improvised. The conflict should be evaluated and resolved
through the appropriate approved process.
Question 2: A grooved sprinkler pipe coupling is installed, but the coupling housing does not
seat uniformly around the pipe. What should the installer do?
A) Tighten the bolts until the housing is forced into position
B) Apply pipe sealant around the coupling
C) Disassemble the connection and verify pipe preparation, gasket seating, and coupling
compatibility
D) Weld the coupling to the pipe
Correct Answer: C) Disassemble the connection and verify pipe preparation, gasket
seating, and coupling compatibility
Uneven coupling seating can indicate improper groove dimensions, damaged pipe ends,
incorrect gasket positioning, or incompatible components. The connection must be corrected
rather than forced into place.
Question 3: While preparing threaded steel sprinkler pipe, the installer observes excessive
thread damage on several fittings. Which condition should be investigated first?
A) Sprinkler temperature rating
B) Threading machine setup and die condition
,3 | NYC
C) Water supply pressure
D) Fire department connection location
Correct Answer: B) Threading machine setup and die condition
Damaged or improperly formed threads commonly result from incorrect dies, worn tooling,
improper alignment, inadequate cutting oil, or incorrect machine settings.
Question 4: A pipe section has been fabricated to the correct nominal dimension, but
installation reveals that the sprinkler outlet is approximately 2 inches out of alignment. Which
response best demonstrates professional installation practice?
A) Bend the threaded pipe using field force
B) Heat the pipe and reshape it
C) Correct the fabrication dimensions or fitting arrangement without compromising the
system
D) Force the sprinkler head into alignment
Correct Answer: C) Correct the fabrication dimensions or fitting arrangement without
compromising the system
Field modifications that can affect hydraulic performance, clearances, structural integrity, or
code compliance should not be improvised. The correct approach is to adjust the fabrication
or fitting arrangement to achieve proper alignment.
Question 5: When assembling a threaded sprinkler connection, excessive sealant is applied
and begins protruding into the internal flow passage. What is the principal concern?
A) Improved flow
B) Potential restriction or contamination of the system
C) Increased sprinkler temperature
D) Reduced pipe weight
Correct Answer: B) Potential restriction or contamination of the system
Excessive sealant can enter the piping and potentially obstruct passages, contaminate
components, or interfere with system operation.
Question 6: A contractor is selecting a pipe fitting for a high-pressure portion of a suppression
system. Which criterion is most important?
, 4 | NYC
A) Lowest purchase price
B) Appearance
C) Pressure rating, listing, compatibility, and intended application
D) Ease of painting
Correct Answer: C) Pressure rating, listing, compatibility, and intended application
Components must be appropriate for the system pressure and listed or approved for their
intended fire protection application.
Question 7: An installer discovers that a pipe support is attached to a component that was not
designed to carry the imposed load. What should happen?
A) Leave it if the pipe appears stable
B) Add additional weight to stabilize it
C) Relocate or redesign the support using an acceptable supporting structure
D) Weld the hanger directly to the pipe
Correct Answer: C) Relocate or redesign the support using an acceptable supporting
structure
Pipe supports must transfer loads to suitable structural elements and be installed in
accordance with applicable requirements and approved details.
Question 8: A sprinkler head is installed with its frame contacting an adjacent ceiling
component. What is the best response?
A) Leave it because the sprinkler remains connected
B) Force the sprinkler into position
C) Correct the installation so the sprinkler is installed according to its listing and required
clearance
D) Paint the contact area
Correct Answer: C) Correct the installation so the sprinkler is installed according to its
listing and required clearance
Sprinkler installation must comply with the manufacturer's listing and required clearances.
Physical interference can affect performance.
