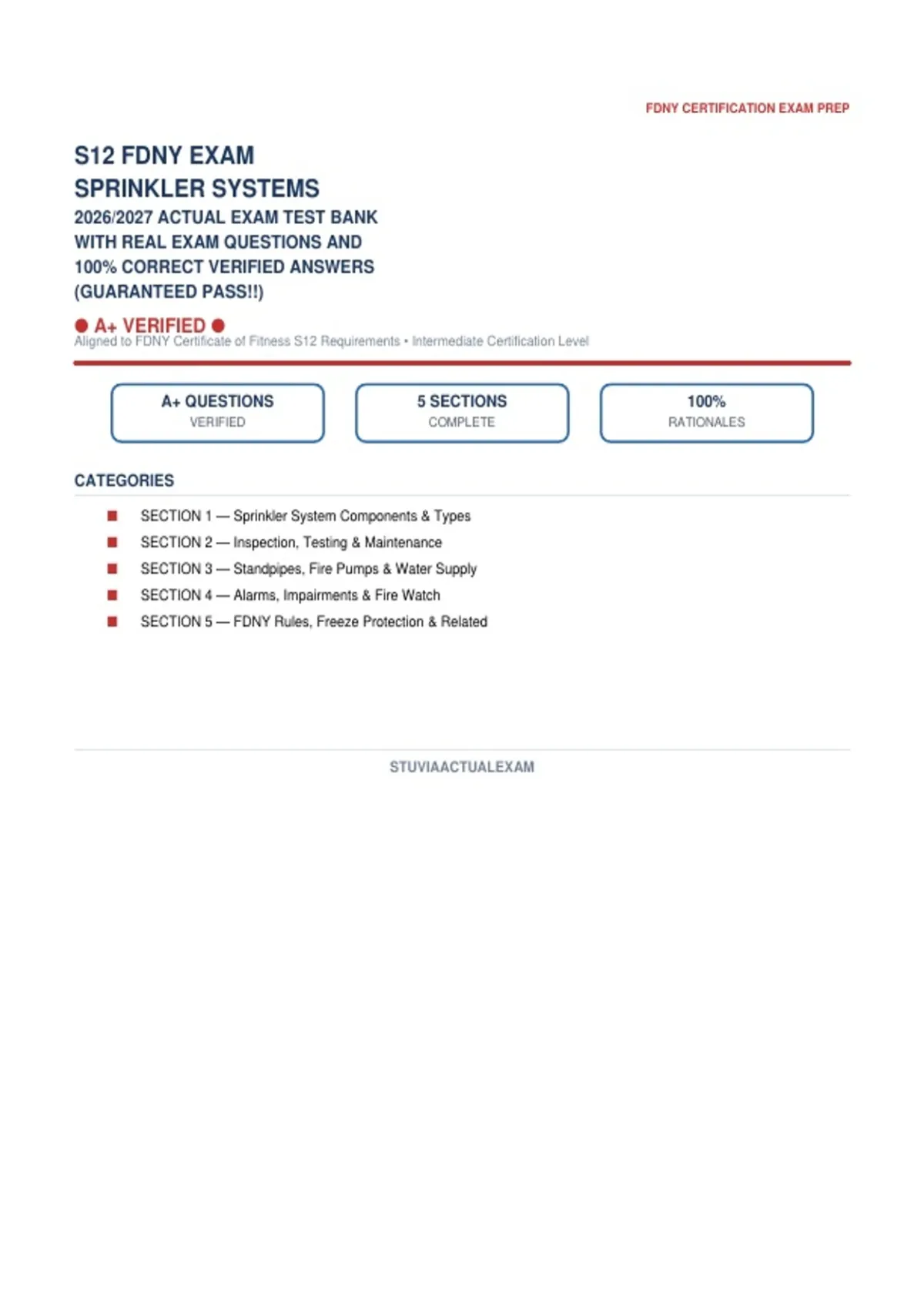

FDNY CERTIFICATION EXAM PREP
S12 FDNY EXAM
SPRINKLER SYSTEMS
2026/2027 ACTUAL EXAM TEST BANK
WITH REAL EXAM QUESTIONS AND
100% CORRECT VERIFIED ANSWERS
(GUARANTEED PASS!!)
● A+ VERIFIED ●
Aligned to FDNY Certificate of Fitness S12 Requirements • Intermediate Certification Level
A+ QUESTIONS 5 SECTIONS 100%
VERIFIED COMPLETE RATIONALES
CATEGORIES
■ SECTION 1 — Sprinkler System Components & Types
■ SECTION 2 — Inspection, Testing & Maintenance
■ SECTION 3 — Standpipes, Fire Pumps & Water Supply
■ SECTION 4 — Alarms, Impairments & Fire Watch
■ SECTION 5 — FDNY Rules, Freeze Protection & Related
STUVIAACTUALEXAM
, SECTION 1: Sprinkler System Components & Types
Q1. A building engineer is inspecting a wet-pipe sprinkler system and notes that water is present throughout the piping network
under normal conditions. The primary advantage of this system type compared with a dry-pipe system is which of the following?
A. It delivers water to the fire almost immediately when a sprinkler activates
B. It can be installed in unheated areas without freeze protection
C. It requires no water-supply connection to the city main
D. It automatically resets after each activation without manual intervention
Correct Answer: A
Rationale: Wet-pipe systems keep water under pressure in the piping at all times, so discharge begins as soon as a sprinkler opens. Dry-pipe
systems introduce a delay while air is expelled. Freeze protection is a disadvantage of wet systems in cold areas.
Q2. A Certificate of Fitness holder is examining a sprinkler head and observes a glass bulb filled with colored liquid. The color of
the liquid primarily indicates which characteristic of the sprinkler?
A. The manufacturer’s production batch code
B. The temperature rating at which the sprinkler is designed to activate
C. The required residual pressure at the most remote head
D. The type of piping material used in the system
Correct Answer: B
Rationale: Glass-bulb sprinklers use colored liquid whose expansion at a specific temperature breaks the bulb. Standard color codes correspond
to temperature ratings (e.g., orange/red for ordinary, green for intermediate). This allows quick identification of the activation temperature.
Q3. A dry-pipe sprinkler system is installed in an unheated warehouse. Under normal standby conditions the piping contains
which medium?
A. Water under continuous pressure from the city main
B. A foam concentrate solution ready for immediate discharge
C. Compressed air or nitrogen that holds the dry-pipe valve closed
D. A vacuum that prevents any fluid from entering the pipes
Correct Answer: C
Rationale: Dry-pipe systems keep air (or nitrogen) pressure in the piping above the dry-pipe valve. When a sprinkler opens, air pressure drops,
the valve trips, and water fills the system. This arrangement prevents freezing in cold spaces.
Q4. A pre-action sprinkler system is selected for a computer server room. The defining operational feature of a single-interlock
pre-action system is which of the following?
A. Water is discharged from every sprinkler head simultaneously when the detection system activates
B. The system remains filled with water at all times like a wet-pipe system
C. No detection system is required; only the sprinkler heads control discharge
D. Water enters the piping only after a detection device operates, and individual sprinklers still must open to discharge
Correct Answer: D
Rationale: In a single-interlock pre-action system a detection event opens the pre-action valve and fills the piping with water; discharge still
requires individual sprinkler activation. This reduces accidental water damage while providing relatively rapid response.
Q5. A deluge sprinkler system is installed over a flammable-liquid loading rack. When the detection system activates, which
action occurs?
A. All open sprinkler heads on the deluge system discharge water simultaneously
B. Only the single sprinkler nearest the fire opens
C. Water is withheld until a second independent detection signal is received
D. The system switches automatically to a dry-pipe mode
Correct Answer: A
Rationale: Deluge systems use open sprinklers and a deluge valve. Upon detection the valve opens and water flows from every head on the
system at once, providing rapid, large-area coverage for high-hazard applications.
Q6. A fire-department connection (FDC) is located on the exterior of a building protected by a sprinkler system. The primary
purpose of the FDC is to allow firefighters to perform which action?
A. Drain the entire sprinkler system for maintenance
B. Supplement or supply water to the sprinkler or standpipe system from pumper apparatus
C. Test the city water pressure at the curb valve
D. Shut off the domestic water supply to the building
STUVIAACTUALEXAM • Page 2
S12 FDNY EXAM
SPRINKLER SYSTEMS
2026/2027 ACTUAL EXAM TEST BANK
WITH REAL EXAM QUESTIONS AND
100% CORRECT VERIFIED ANSWERS
(GUARANTEED PASS!!)
● A+ VERIFIED ●
Aligned to FDNY Certificate of Fitness S12 Requirements • Intermediate Certification Level
A+ QUESTIONS 5 SECTIONS 100%
VERIFIED COMPLETE RATIONALES
CATEGORIES
■ SECTION 1 — Sprinkler System Components & Types
■ SECTION 2 — Inspection, Testing & Maintenance
■ SECTION 3 — Standpipes, Fire Pumps & Water Supply
■ SECTION 4 — Alarms, Impairments & Fire Watch
■ SECTION 5 — FDNY Rules, Freeze Protection & Related
STUVIAACTUALEXAM
, SECTION 1: Sprinkler System Components & Types
Q1. A building engineer is inspecting a wet-pipe sprinkler system and notes that water is present throughout the piping network
under normal conditions. The primary advantage of this system type compared with a dry-pipe system is which of the following?
A. It delivers water to the fire almost immediately when a sprinkler activates
B. It can be installed in unheated areas without freeze protection
C. It requires no water-supply connection to the city main
D. It automatically resets after each activation without manual intervention
Correct Answer: A
Rationale: Wet-pipe systems keep water under pressure in the piping at all times, so discharge begins as soon as a sprinkler opens. Dry-pipe
systems introduce a delay while air is expelled. Freeze protection is a disadvantage of wet systems in cold areas.
Q2. A Certificate of Fitness holder is examining a sprinkler head and observes a glass bulb filled with colored liquid. The color of
the liquid primarily indicates which characteristic of the sprinkler?
A. The manufacturer’s production batch code
B. The temperature rating at which the sprinkler is designed to activate
C. The required residual pressure at the most remote head
D. The type of piping material used in the system
Correct Answer: B
Rationale: Glass-bulb sprinklers use colored liquid whose expansion at a specific temperature breaks the bulb. Standard color codes correspond
to temperature ratings (e.g., orange/red for ordinary, green for intermediate). This allows quick identification of the activation temperature.
Q3. A dry-pipe sprinkler system is installed in an unheated warehouse. Under normal standby conditions the piping contains
which medium?
A. Water under continuous pressure from the city main
B. A foam concentrate solution ready for immediate discharge
C. Compressed air or nitrogen that holds the dry-pipe valve closed
D. A vacuum that prevents any fluid from entering the pipes
Correct Answer: C
Rationale: Dry-pipe systems keep air (or nitrogen) pressure in the piping above the dry-pipe valve. When a sprinkler opens, air pressure drops,
the valve trips, and water fills the system. This arrangement prevents freezing in cold spaces.
Q4. A pre-action sprinkler system is selected for a computer server room. The defining operational feature of a single-interlock
pre-action system is which of the following?
A. Water is discharged from every sprinkler head simultaneously when the detection system activates
B. The system remains filled with water at all times like a wet-pipe system
C. No detection system is required; only the sprinkler heads control discharge
D. Water enters the piping only after a detection device operates, and individual sprinklers still must open to discharge
Correct Answer: D
Rationale: In a single-interlock pre-action system a detection event opens the pre-action valve and fills the piping with water; discharge still
requires individual sprinkler activation. This reduces accidental water damage while providing relatively rapid response.
Q5. A deluge sprinkler system is installed over a flammable-liquid loading rack. When the detection system activates, which
action occurs?
A. All open sprinkler heads on the deluge system discharge water simultaneously
B. Only the single sprinkler nearest the fire opens
C. Water is withheld until a second independent detection signal is received
D. The system switches automatically to a dry-pipe mode
Correct Answer: A
Rationale: Deluge systems use open sprinklers and a deluge valve. Upon detection the valve opens and water flows from every head on the
system at once, providing rapid, large-area coverage for high-hazard applications.
Q6. A fire-department connection (FDC) is located on the exterior of a building protected by a sprinkler system. The primary
purpose of the FDC is to allow firefighters to perform which action?
A. Drain the entire sprinkler system for maintenance
B. Supplement or supply water to the sprinkler or standpipe system from pumper apparatus
C. Test the city water pressure at the curb valve
D. Shut off the domestic water supply to the building
STUVIAACTUALEXAM • Page 2
