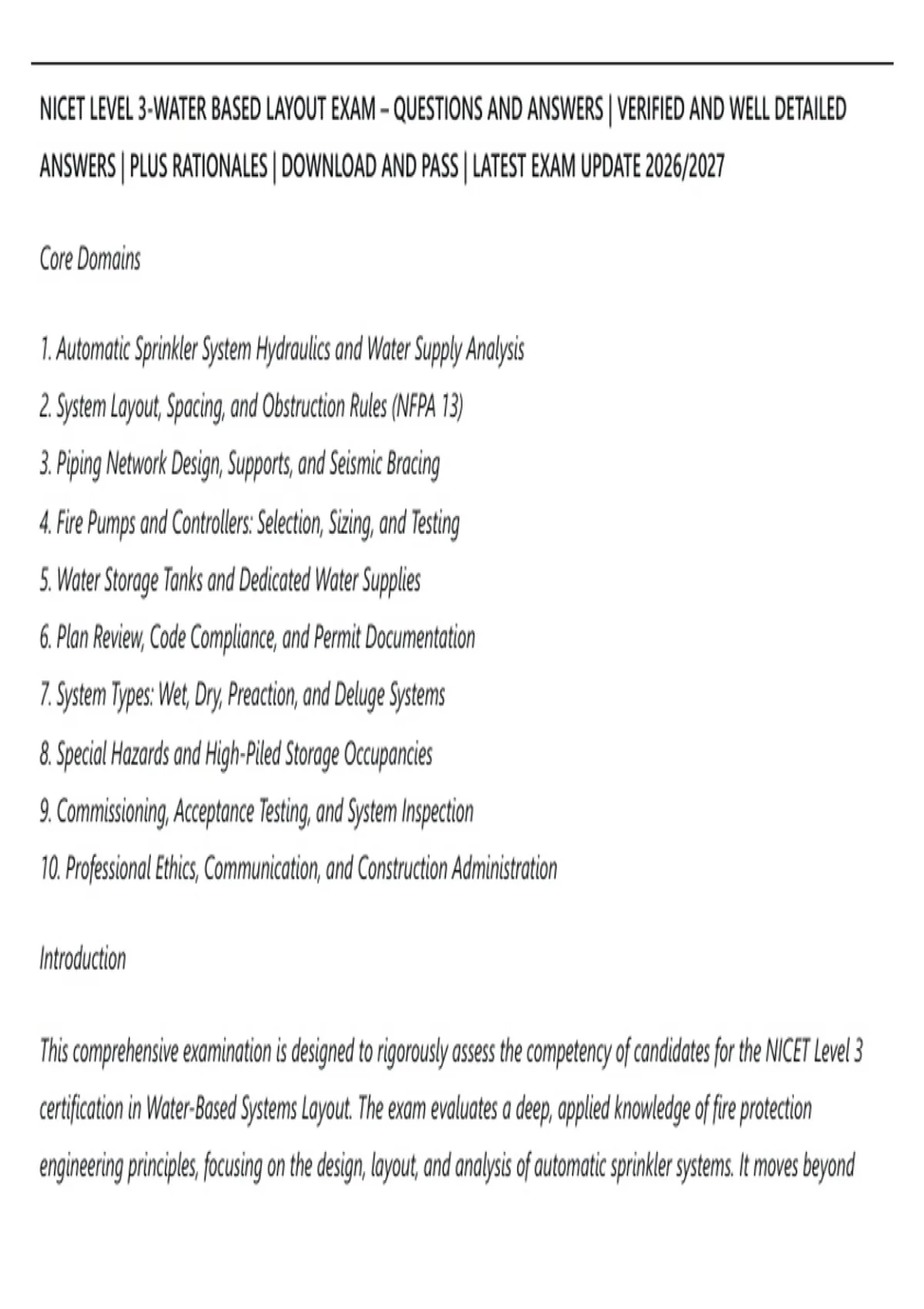

NICET LEVEL 3-WATER BASED LAYOUT EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL DETAILED
ANSWERS | PLUS RATIONALES | DOWNLOAD AND PASS | LATEST EXAM UPDATE 2026/2027
Core Domains
1. Automatic Sprinkler System Hydraulics and Water Supply Analysis
2. System Layout, Spacing, and Obstruction Rules (NFPA 13)
3. Piping Network Design, Supports, and Seismic Bracing
4. Fire Pumps and Controllers: Selection, Sizing, and Testing
5. Water Storage Tanks and Dedicated Water Supplies
6. Plan Review, Code Compliance, and Permit Documentation
7. System Types: Wet, Dry, Preaction, and Deluge Systems
8. Special Hazards and High-Piled Storage Occupancies
9. Commissioning, Acceptance Testing, and System Inspection
10. Professional Ethics, Communication, and Construction Administration
Introduction
This comprehensive examination is designed to rigorously assess the competency of candidates for the NICET Level 3
certification in Water-Based Systems Layout. The exam evaluates a deep, applied knowledge of fire protection
engineering principles, focusing on the design, layout, and analysis of automatic sprinkler systems. It moves beyond
,basic code recall to challenge the candidate's ability to integrate hydraulic calculations, system component selection,
and complex code requirements into practical, real-world design solutions. Candidates will be tested through a
combination of multiple-choice and scenario-based questions that emphasize critical thinking, professional judgment,
and decision-making skills essential for leading complex water-based fire protection projects. Mastery of these concepts
is crucial for ensuring public safety and protecting property from the effects of fire.
SECTION ONE: QUESTIONS 1 – 50
1. What is the primary purpose of performing a hydraulic calculation for a water-based fire protection system?
A. To determine the minimum water supply pressure required from the municipal main.
B. To verify that the system can deliver the required flow and pressure to the most demanding sprinkler heads.
C. To calculate the total cost of the piping materials for the project.
D. To establish the maximum allowable floor area that can be protected by a single riser.
🟢 Correct Answer: B. To verify that the system can deliver the required flow and pressure to the most demanding
sprinkler heads.
🔴 Explanation: Hydraulic calculations are performed to prove that the proposed piping network and water supply
can provide the necessary flow (density) and pressure at the hydraulically most remote area or most demanding
sprinkler head, ensuring the system can effectively control or suppress a fire as per NFPA 13.
,2. A designer is sizing a fire pump for a new warehouse. The system demand is 1500 gpm at 100 psi at the pump
discharge. The maximum static suction pressure from the municipal water main is 65 psi. What is the minimum rated
pressure of the fire pump?
A. 35 psi
B. 100 psi
C. 165 psi
D. 150 psi
🟢 Correct Answer: B. 100 psi
🔴 Explanation: The fire pump's rated pressure must meet the system demand pressure at the required flow. The
pump adds pressure to the water supply. If the required pressure at the pump discharge is 100 psi to meet the
system's hydraulic demand, the pump must be rated for at least 100 psi at that flow, regardless of the suction
pressure.
3. According to NFPA 13, which of the following is the maximum allowable distance between sprinklers in a light-
hazard occupancy for a standard spray sprinkler?
A. 10 ft (3.0 m)
B. 15 ft (4.6 m)
C. 20 ft (6.1 m)
D. 25 ft (7.6 m)
, 🟢 Correct Answer: B. 15 ft (4.6 m)
🔴 Explanation: NFPA 13, 2019 edition, Table 10.2.4.2.1(a) specifies that for light hazard occupancies with standard
spray sprinklers, the maximum allowable spacing between sprinklers is 15 feet (4.6 m).
4. A dry-pipe sprinkler system is being designed for an unheated attic space. The system's capacity is 750 gallons.
What is the maximum allowable time for water to reach the most remote sprinkler after the system trips?
A. 30 seconds
B. 45 seconds
C. 60 seconds
D. 90 seconds
🟢 Correct Answer: C. 60 seconds
🔴 Explanation: NFPA 13 mandates that for dry-pipe systems, the water delivery time to the hydraulically most
remote sprinkler must not exceed 60 seconds. This is to ensure that the system responds quickly enough to control
a developing fire.
5. What is the primary purpose of a fire department connection (FDC) on a sprinkler system?
A. To provide a means for the building owner to test the system.
B. To allow the fire department to supplement the building's water supply.
