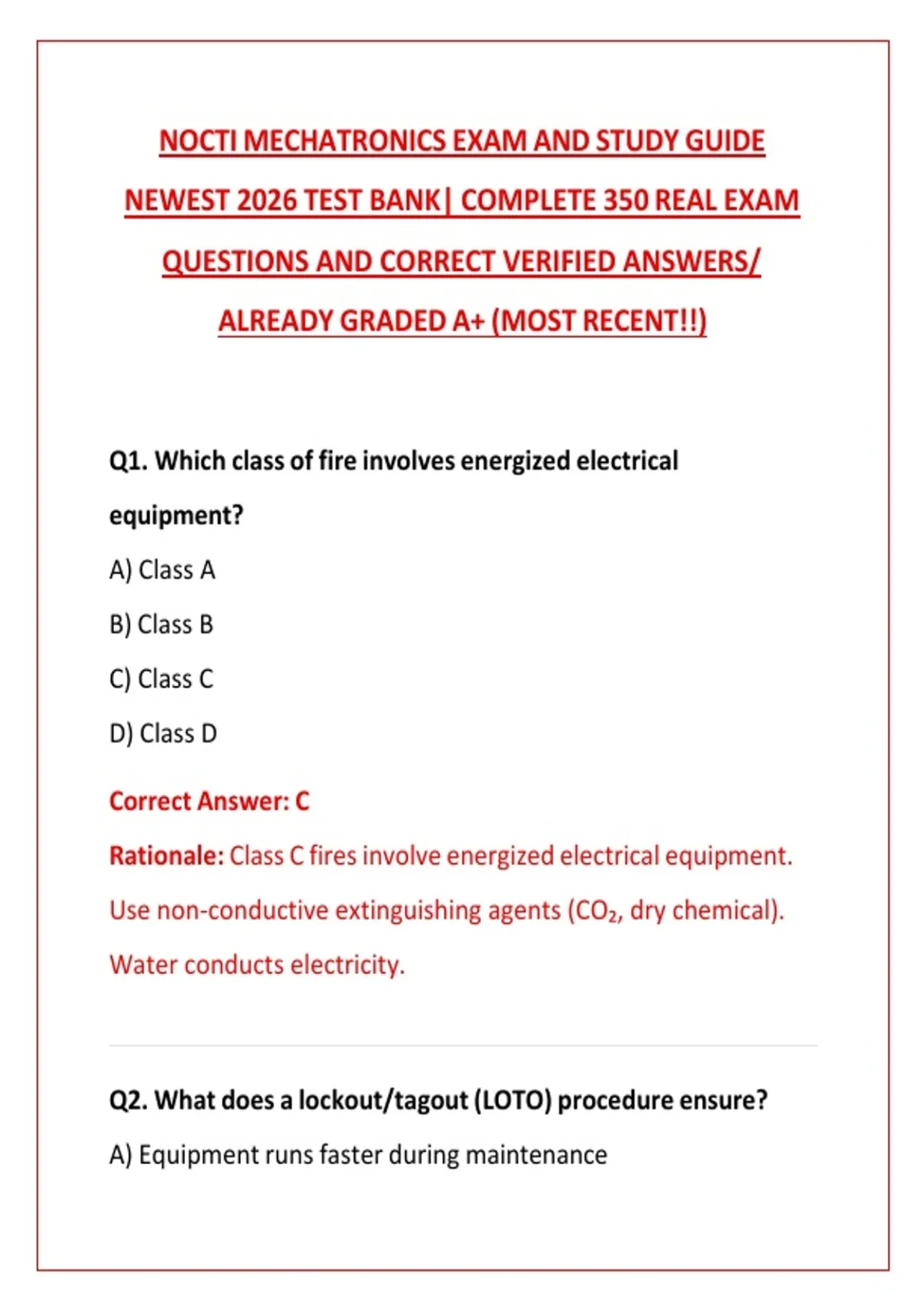

NOCTI MECHATRONICS EXAM AND STUDY GUIDE
NEWEST 2026 TEST BANK| COMPLETE 350 REAL EXAM
QUESTIONS AND CORRECT VERIFIED ANSWERS/
ALREADY GRADED A+ (MOST RECENT!!)
Q1. Which class of fire involves energized electrical
equipment?
A) Class A
B) Class B
C) Class C
D) Class D
Correct Answer: C
Rationale: Class C fires involve energized electrical equipment.
Use non-conductive extinguishing agents (CO₂, dry chemical).
Water conducts electricity.
Q2. What does a lockout/tagout (LOTO) procedure ensure?
A) Equipment runs faster during maintenance
,B) Equipment is de-energized and cannot be re-energized
accidentally
C) Equipment is cleaned after shutdown
D) Equipment is lubricated before start-up
Correct Answer: B
Rationale: LOTO isolates energy sources and prevents
accidental start-up during maintenance or repair. OSHA 29 CFR
1910.147.
Q3. Which of the following is the unit of electrical resistance?
A) Volt
B) Ampere
C) Ohm
D) Watt
Correct Answer: C
Rationale: Ohm (Ω) measures resistance. Volt measures
voltage, ampere measures current, watt measures power.
,Q4. A programmable logic controller (PLC) is primarily used
for:
A) Storing large databases
B) Controlling industrial automation processes
C) Powering electric motors
D) Displaying graphics
Correct Answer: B
Rationale: PLCs are industrial computers designed to control
machinery, processes, and automation systems using ladder
logic or other programming languages.
Q5. What is the function of a sensor in a mechatronic system?
A) To actuate a mechanical movement
B) To detect physical quantities and convert them to electrical
signals
C) To amplify power
D) To store energy
Correct Answer: B
Rationale: Sensors detect physical parameters (temperature,
, pressure, position, light) and convert them into measurable
electrical signals.
Q6. In a pneumatic system, a 5/2 directional control valve has
how many ports and positions?
A) 5 ports, 2 positions
B) 2 ports, 5 positions
C) 5 ports, 5 positions
D) 2 ports, 2 positions
Correct Answer: A
Rationale: 5/2 valve = 5 ports (pressure, two cylinder ports, two
exhaust) and 2 positions (actuated and unactuated states).
Q7. Which law states that the current through a conductor is
directly proportional to the voltage and inversely proportional
to the resistance?
A) Kirchhoff's Voltage Law
B) Ohm's Law
