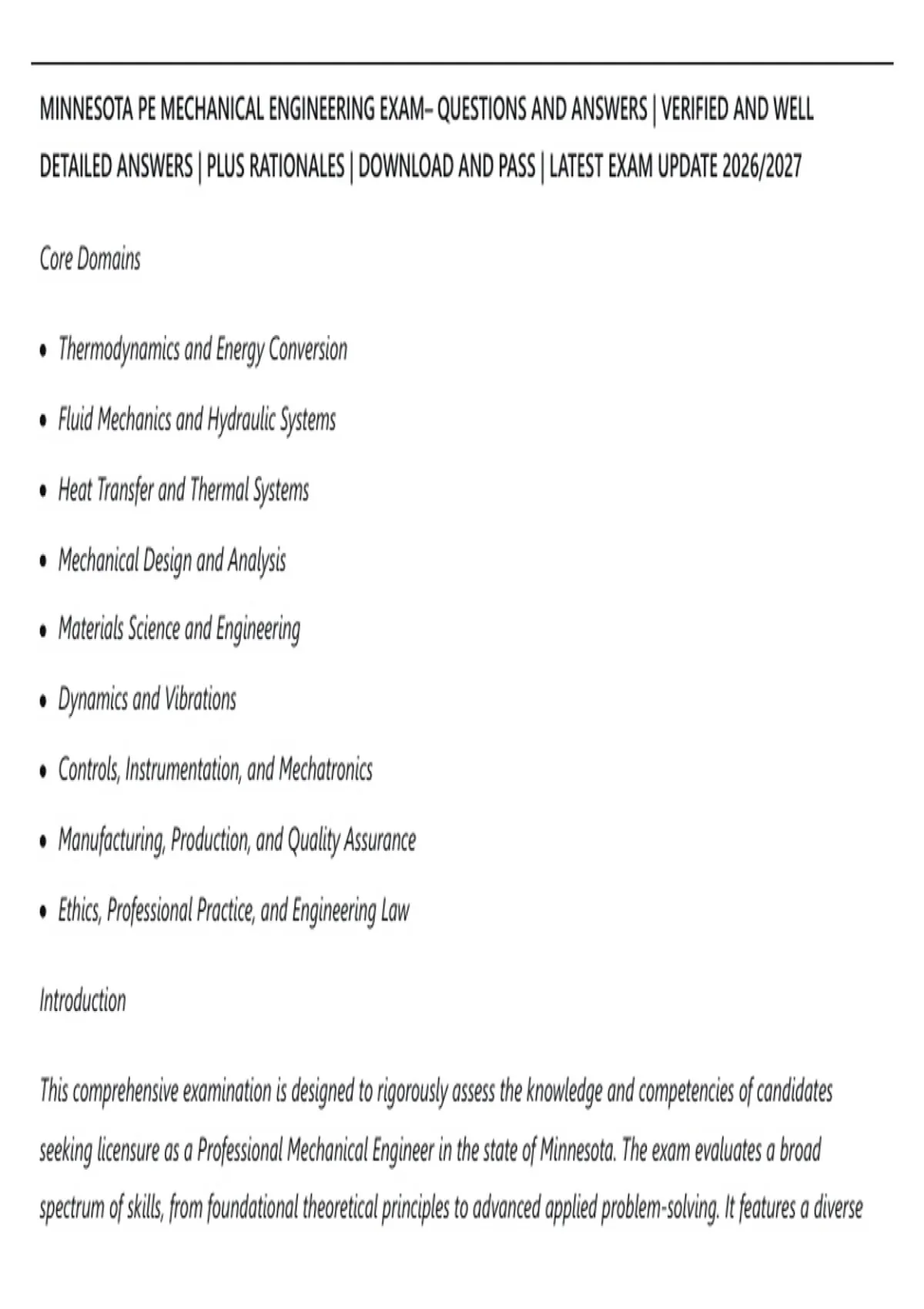

MINNESOTA PE MECHANICAL ENGINEERING EXAM– QUESTIONS AND ANSWERS | VERIFIED AND WELL
DETAILED ANSWERS | PLUS RATIONALES | DOWNLOAD AND PASS | LATEST EXAM UPDATE 2026/2027
Core Domains
Thermodynamics and Energy Conversion
Fluid Mechanics and Hydraulic Systems
Heat Transfer and Thermal Systems
Mechanical Design and Analysis
Materials Science and Engineering
Dynamics and Vibrations
Controls, Instrumentation, and Mechatronics
Manufacturing, Production, and Quality Assurance
Ethics, Professional Practice, and Engineering Law
Introduction
This comprehensive examination is designed to rigorously assess the knowledge and competencies of candidates
seeking licensure as a Professional Mechanical Engineer in the state of Minnesota. The exam evaluates a broad
spectrum of skills, from foundational theoretical principles to advanced applied problem-solving. It features a diverse
,array of multiple-choice and scenario-based questions that challenge the engineer's ability to analyze complex systems,
apply sound engineering judgment, and make critical, real-world decisions. Mastery of this material demonstrates a
readiness to uphold the highest standards of public safety, ethical conduct, and professional practice within the field.
SECTION ONE: QUESTIONS 1–50
1. A closed system undergoes a thermodynamic cycle. What is the net change in internal energy (ΔU) for the
system over one complete cycle?
A. Equal to the net heat added
B. Equal to the net work done
C. Zero
D. Dependent on the path of the cycle
🟢 Correct Answer: C. Zero
🔴 Explanation: Internal energy is a state function. Over a complete thermodynamic cycle, the initial and final states
are identical; therefore, the net change in internal energy is always zero, regardless of the path taken. (First Law: ΔU
= Q - W = 0 for a cycle).
,2. In a vapor-compression refrigeration cycle, the component where the refrigerant changes phase from a high-
pressure liquid to a low-pressure liquid-vapor mixture is the:
A. Compressor
B. Condenser
C. Expansion valve (Throttling device)
D. Evaporator
🟢 Correct Answer: C. Expansion valve (Throttling device)
🔴 Explanation: The expansion valve is the device that causes a sudden pressure drop. This rapid expansion results
in a significant temperature drop and a partial flash of the liquid into a vapor, creating the cold, low-pressure liquid-
vapor mixture that enters the evaporator.
3. A steel shaft is subjected to a completely reversed bending moment. The endurance limit for the shaft material
is 280 MPa. If the shaft has a diameter of 50 mm and the surface finish factor is 0.8, what is the maximum
allowable bending moment (in N·m) that can be applied to achieve infinite life? (Assume the endurance limit is
correctly modified by only the surface finish factor for this initial calculation. The section modulus for a circular
shaft is S = πd³/32).
A. 274.9 N·m
B. 439.8 N·m
, C. 549.8 N·m
D. 1099.6 N·m
🟢 Correct Answer: A. 274.9 N·m
🔴 Explanation: First, calculate the modified endurance limit: Se = 280 MPa * 0.8 = 224 MPa. The section modulus
for a circular shaft is S = π*(0.05 m)³/32 = 1.227 x 10⁻⁵ m³. The relationship for bending stress is σ = M/S. For infinite
life under completely reversed loading, σ = Se. Therefore, M = Se * S = 224 x 10⁶ Pa * 1.227 x 10⁻⁵ m³ = 2748.8 N·m.
The correct answer is 274.9 N·m.
4. Which of the following is a primary difference between a P&ID (Piping and Instrumentation Diagram) and a
Process Flow Diagram (PFD)?
A. P&IDs show major equipment while PFDs show all minor equipment.
B. P&IDs show control loops and instrumentation, whereas PFDs show the primary flow and major equipment.
C. PFDs are used for construction, while P&IDs are used only for conceptual design.
D. There is no significant difference; the terms are interchangeable.
🟢 Correct Answer: B. P&IDs show control loops and instrumentation, whereas PFDs show the primary flow and
major equipment.
🔴 Explanation: A PFD is a high-level diagram showing the major process equipment, main flow streams, and
operating conditions. A P&ID is a more detailed engineering document used for construction and control, displaying
