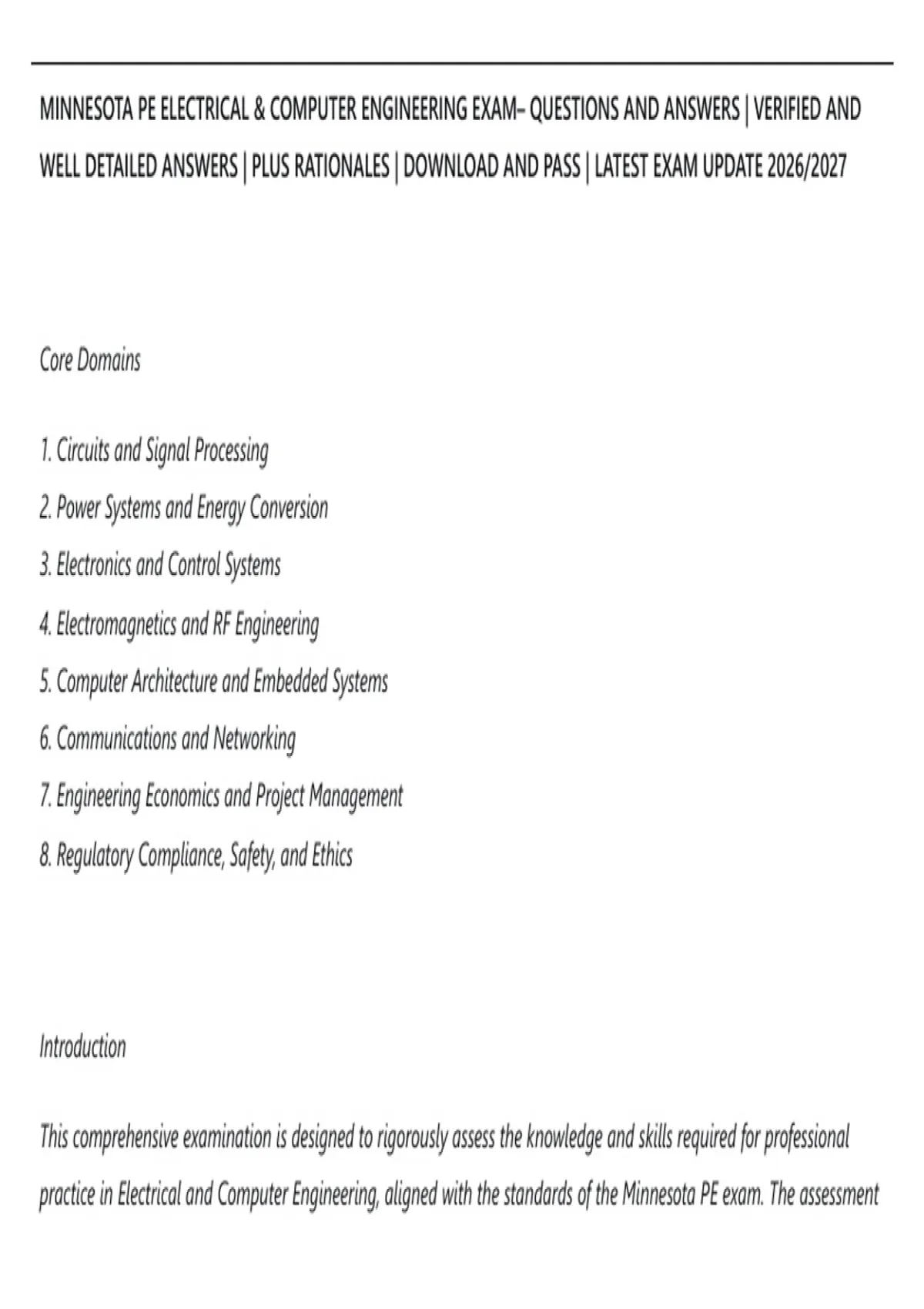

MINNESOTA PE ELECTRICAL & COMPUTER ENGINEERING EXAM– QUESTIONS AND ANSWERS | VERIFIED AND
WELL DETAILED ANSWERS | PLUS RATIONALES | DOWNLOAD AND PASS | LATEST EXAM UPDATE 2026/2027
Core Domains
1. Circuits and Signal Processing
2. Power Systems and Energy Conversion
3. Electronics and Control Systems
4. Electromagnetics and RF Engineering
5. Computer Architecture and Embedded Systems
6. Communications and Networking
7. Engineering Economics and Project Management
8. Regulatory Compliance, Safety, and Ethics
Introduction
This comprehensive examination is designed to rigorously assess the knowledge and skills required for professional
practice in Electrical and Computer Engineering, aligned with the standards of the Minnesota PE exam. The assessment
,covers foundational theory, advanced applied concepts, and practical decision-making. Candidates will encounter a mix
of direct multiple-choice questions and scenario-based problems that test critical thinking and the application of
engineering principles to real-world situations. Emphasis is placed on ethical conduct, regulatory compliance, and the
ability to analyze and solve complex engineering challenges, ensuring candidates are well-prepared for professional
responsibility.
SECTION ONE: QUESTIONS 1–50
1. For an ideal operational amplifier in a negative feedback configuration, what is the primary effect of a very
high open-loop gain?
A. It causes the output to saturate quickly.
B. It forces the differential input voltage to approach zero.
C. It makes the input impedance infinitely high.
D. It results in a very low output impedance.
🟢 Correct Answer: B. It forces the differential input voltage to approach zero.
🔴 Explanation: High open-loop gain, combined with negative feedback, drives the voltage difference between the
inverting and non-inverting inputs to virtually zero, a concept known as the virtual short circuit. Saturation is
prevented by the feedback loop.
,2. In a three-phase power system, what is the primary advantage of a Y (wye) connection over a Delta
connection?
A. Higher power output for the same line voltage.
B. The ability to provide a neutral point for single-phase loads.
C. Lower line currents for the same phase voltage.
D. Simpler transformer construction.
🟢 Correct Answer: B. The ability to provide a neutral point for single-phase loads.
🔴 Explanation: The primary advantage of a wye connection is the availability of a neutral point, which allows the
system to supply both three-phase and single-phase loads. Delta connections do not offer a natural neutral point.
3. What is the Boolean expression for the output of a two-input Exclusive-NOR (XNOR) gate?
A. A B + A B
B. A B + A B
C. A B
D. A + B
🟢 Correct Answer: A. A B + A B
🔴 Explanation: An XNOR gate outputs a HIGH (1) when both inputs are the same. This is represented by the
Boolean expression (A AND B) OR (NOT A AND NOT B), which is A·B + A·B.
, 4. A communication system uses a 16-QAM modulation scheme. How many bits does each symbol represent?
A. 2
B. 4
C. 8
D. 16
🟢 Correct Answer: B. 4
🔴 Explanation: In 16-QAM, there are 16 distinct symbols. The number of bits per symbol is log₂(16) = 4 bits.
5. According to the National Electrical Code (NEC), what is the general requirement for the grounding electrode
conductor connection to a grounding electrode?
A. It must be soldered to the electrode.
B. It must be connected via a bolted clamp that is accessible.
C. It must be buried at least 2 feet below grade.
D. It must be taped and insulated.
🟢 Correct Answer: B. It must be connected via a bolted clamp that is accessible.
🔴 Explanation: The NEC requires that connections to grounding electrodes be made with devices such as listed
clamps that are accessible, ensuring a secure and maintainable connection. Soldering is generally not permitted due
to potential heat damage.
