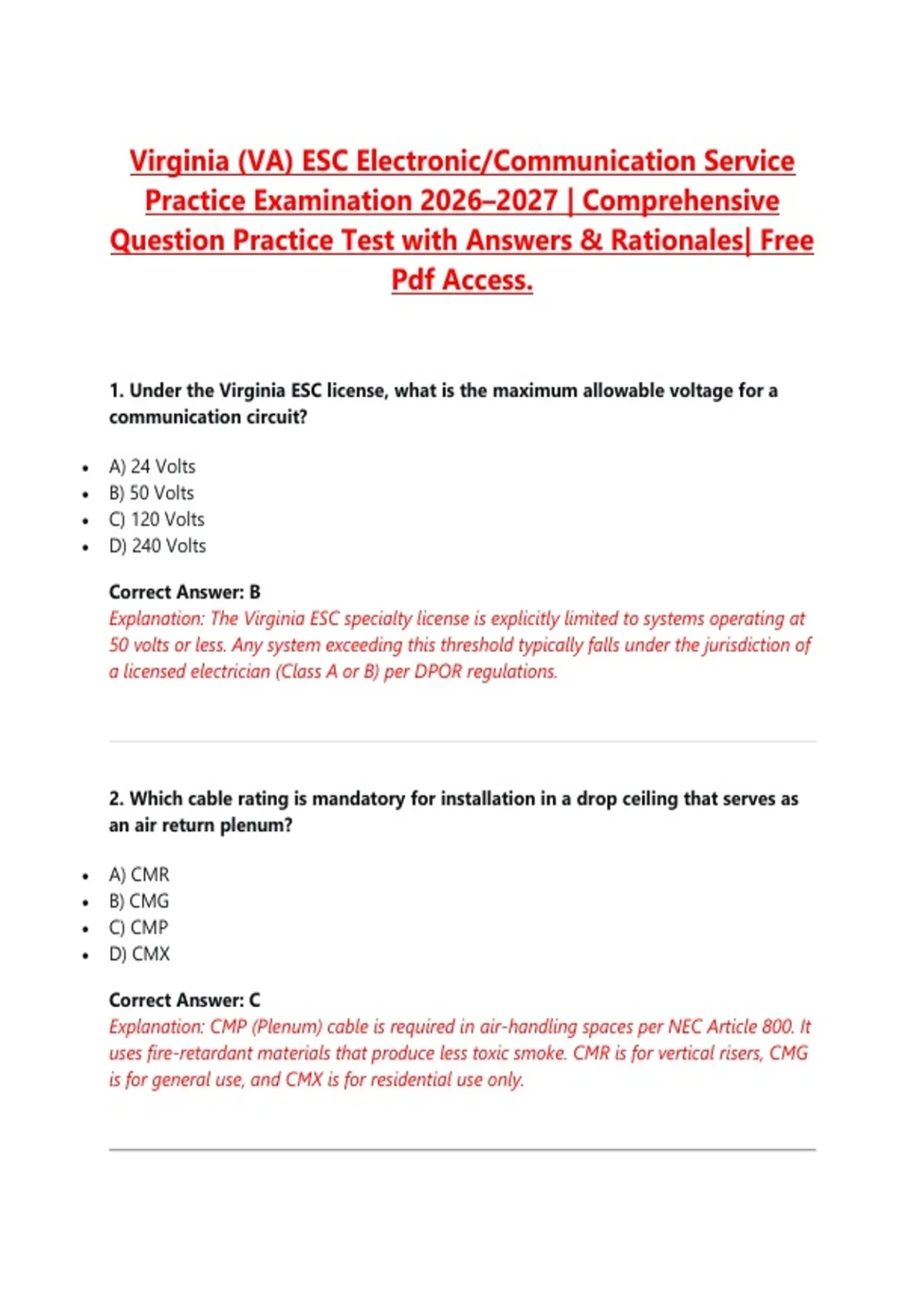

Virginia (VA) ESC Electronic/Communication Service
Practice Examination 2026–2027 | Comprehensive
Question Practice Test with Answers & Rationales| Free
Pdf Access.
1. Under the Virginia ESC license, what is the maximum allowable voltage for a
communication circuit?
A) 24 Volts
B) 50 Volts
C) 120 Volts
D) 240 Volts
Correct Answer: B
Explanation: The Virginia ESC specialty license is explicitly limited to systems operating at
50 volts or less. Any system exceeding this threshold typically falls under the jurisdiction of
a licensed electrician (Class A or B) per DPOR regulations.
2. Which cable rating is mandatory for installation in a drop ceiling that serves as
an air return plenum?
A) CMR
B) CMG
C) CMP
D) CMX
Correct Answer: C
Explanation: CMP (Plenum) cable is required in air-handling spaces per NEC Article 800. It
uses fire-retardant materials that produce less toxic smoke. CMR is for vertical risers, CMG
is for general use, and CMX is for residential use only.
, 3. In the T568B wiring standard, which conductor is terminated on Pin 2?
A) White/Orange
B) Orange
C) White/Green
D) Green
Correct Answer: B
Explanation: The T568B standard places the Orange solid conductor on Pin 2. Pin 1 is
White/Orange, and the Orange pair is the second pair in this standard. T568A would use
the Green pair for Pins 1 and 2.
4. What is the primary purpose of grounding a communication system?
A) To improve data transmission speed
B) To protect against electrical shock and equipment damage
C) To reduce cable costs
D) To allow for longer cable runs
Correct Answer: B
Explanation: Grounding provides a low-impedance path for fault currents and lightning
surges, safely directing them to earth. This protects both personnel from shock and
sensitive electronic equipment from voltage spikes.
5. Which device converts electrical signals to light pulses in a fiber optic network?
A) Modem
B) Optical transceiver
C) RF amplifier
D) Signal splitter
Correct Answer: B
Explanation: An optical transceiver contains both a transmitter (which converts electrical
signals to light) and a receiver (which converts light back to electrical signals). A modem
modulates/demodulates analog signals, not light.
, 6. What is the nominal ring voltage for a standard US telephone line?
A) 5 V DC
B) 48 V DC
C) 90 V AC at 20 Hz
D) 120 V AC at 60 Hz
Correct Answer: C
Explanation: The ringing signal in North America is approximately 90 volts AC at 20 Hz.
The talk battery (off-hook) is -48 V DC, which is always present but is not the ring voltage.
7. Which fiber optic type supports the longest transmission distances with the
highest bandwidth?
A) Multimode step-index
B) Multimode graded-index
C) Single-mode
D) Plastic optical fiber
Correct Answer: C
Explanation: Single-mode fiber has a very small core (8-10 microns) and uses a single light
path, which virtually eliminates modal dispersion. This allows it to transmit over distances
of 40 km or more, far exceeding multimode.
8. Why must communication cables be physically separated from power
conductors?
A) To reduce material costs
B) To prevent electromagnetic interference (EMI) and ensure safety
C) To make pulling cables easier
D) To comply with aesthetic requirements
, Correct Answer: B
Explanation: NEC Article 800 requires separation to prevent hazardous voltages from
being induced onto communication cables (safety) and to avoid EMI, which can corrupt
data signals in unshielded twisted-pair cabling.
9. A certification test on a Cat 6 cable link measures which parameters?
A) Continuity and polarity only
B) Voltage and current
C) Insertion loss, return loss, and crosstalk
D) Optical power and wavelength
Correct Answer: C
Explanation: Certification testing verifies that the link meets all TIA/EIA performance
standards, including insertion loss, return loss, near-end crosstalk (NEXT), and propagation
delay. A continuity test only checks for opens/shorts.
10. What type of connector is a BNC primarily used for?
A) Fiber optic termination
B) Coaxial cable connection
C) Twisted-pair data connection
D) AC power connection
Correct Answer: B
Explanation: The BNC (Bayonet Neill–Concelman) connector is a quick-connect/disconnect
RF connector used almost exclusively with coaxial cables, commonly found in video
surveillance and legacy RF systems.
11. According to NEC, what is the minimum bending radius for a Category 6 UTP
cable during installation?
