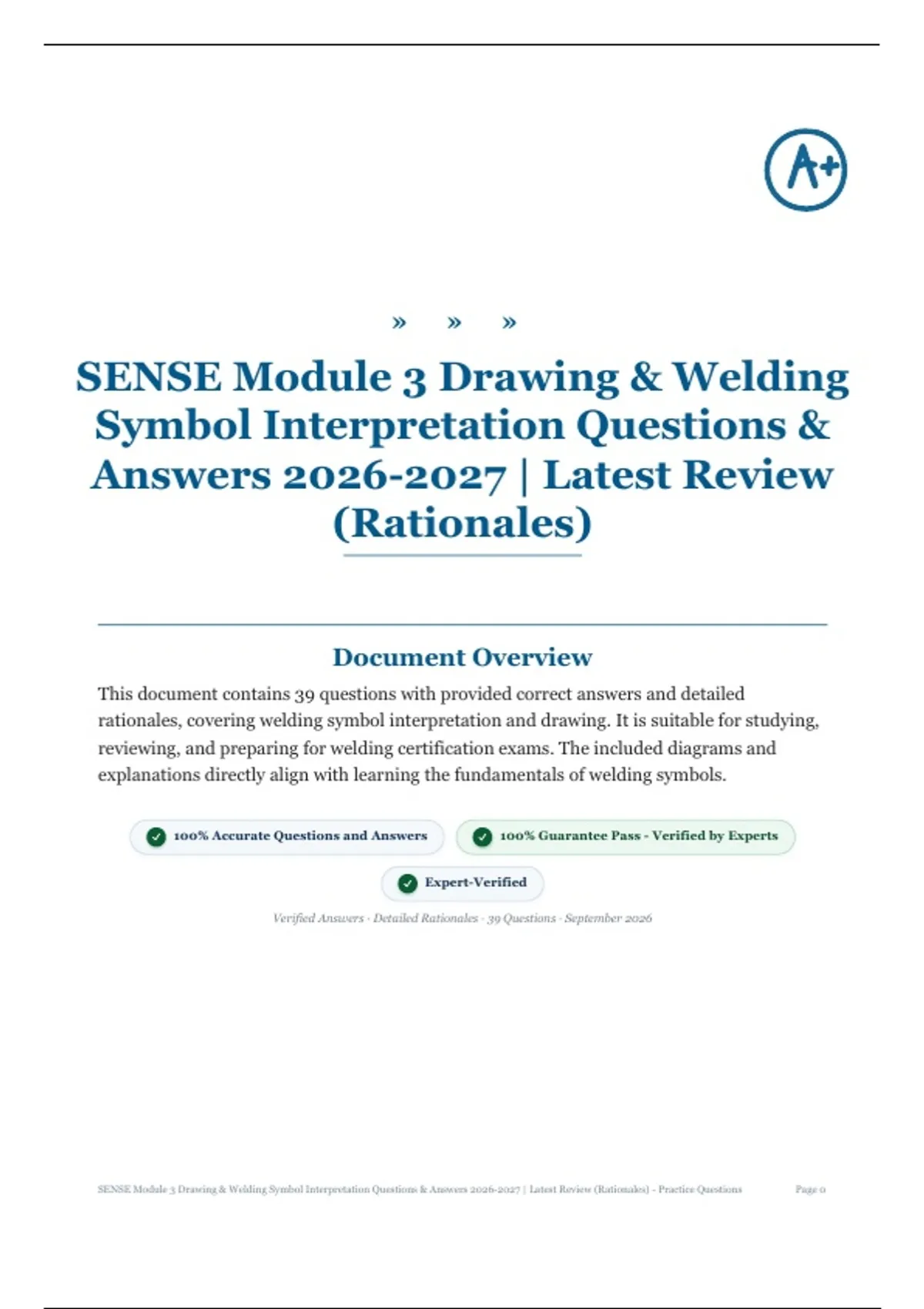

SENSE Module 3 Drawing & Welding
Symbol Interpretation Questions &
Answers 2026-2027 | Latest Review
(Rationales)
Document Overview
This document contains 39 questions with provided correct answers and detailed
rationales, covering welding symbol interpretation and drawing. It is suitable for studying,
reviewing, and preparing for welding certification exams. The included diagrams and
explanations directly align with learning the fundamentals of welding symbols.
100% Accurate Questions and Answers 100% Guarantee Pass - Verified by Experts
Expert-Verified
Verified Answers · Detailed Rationales · 39 Questions · September 2026
SENSE Module 3 Drawing & Welding Symbol Interpretation Questions & Answers 2026-2027 | Latest Review (Rationales) - Practice Questions Page 0
, Topics Covered
Section 1: Welding Symbol Fundamentals Q 1-10
Questions covering welding Symbol Fundamentals concepts.
Section 2: Weld Size, Spacing & Dimensions Q 11-18
Questions covering weld Size, Spacing & Dimensions concepts.
Section 3: Weld Joint Types & Terminology Q 19-28
Questions covering weld Joint Types & Terminology concepts.
Section 4: Specific Weld Symbol Interpretations Q 29-39
Questions covering specific Weld Symbol Interpretations concepts.
Questions
QUESTION 1 OF 39
The primary element of any welding symbol is referred to as the
Correct Answer: reference line.
Rationale: The reference line is the fundamental horizontal line of a welding symbol upon which other elements are
placed. It serves as the anchor for the entire symbol, indicating the location of weld information relative to the joint.
Without the reference line, the meaning and placement of supplementary symbols and weld specifications would be
ambiguous. This aligns with reference line..
QUESTION 2 OF 39
Information appearing below the reference line refers to the
Correct Answer: arrow side.
Rationale: arrow side., the reference line is the horizontal line that connects the symbol to the weldment. Information
placed below this line specifically denotes details pertaining to the "arrow side" of the joint, which is the side of the joint
indicated by the arrow. This convention ensures clarity in specifying which side of the weldment the weld details apply
to.
QUESTION 3 OF 39
Information appearing above the reference line refers to the
Correct Answer: other side.
Rationale: other side., information placed above the reference line specifically denotes the weld preparation or
condition on the "other side" of the joint, opposite to the side indicated by information below the reference line. This
convention ensures clarity in specifying weld details for complex joint configurations. Therefore, any annotation
positioned above the reference line pertains to the opposite side of the weld joint.
SENSE Module 3 Drawing & Welding Symbol Interpretation Questions & Answers 2026-2027 | Latest Review (Rationales) - Practice Questions Page 0
, QUESTION 4 OF 39
The graphic representation of a weld to be performed is called a
Correct Answer: weld symbol.
Rationale: In technical drawing and welding, a weld symbol is the standardized graphic representation used on
blueprints and engineering drawings to indicate the type, size, and location of a weld. It is a standardized element that
conveys essential welding specifications to the welder. Therefore, the graphic representation of a weld to be performed
is indeed called a weld symbol.
QUESTION 5 OF 39
A right-angle triangle attached to either side of the reference line indicates a
Correct Answer: Fillet weld.
Rationale: In welding symbology, a right-angle triangle symbol, also known as a fillet weld symbol, is placed on the
reference line to denote a fillet weld. When this triangle is shown on either side of the reference line, it indicates that a
fillet weld is to be made on both the arrow side and the other side of the joint. This standardized symbol ensures clarity
and precision in welding specifications.
QUESTION 6 OF 39
Information that appears to the left of the weld symbol refers to the
Correct Answer: weld size.
Rationale: weld size., information positioned to the left of the weld symbol on a drawing typically indicates the weld
size, such as leg length for a fillet weld or thickness for a groove weld. This placement adheres to the standardized
conventions established by organizations like the American Welding Society (AWS). Therefore, details appearing to the
left of the symbol directly define the dimensions of the weld to be executed.
QUESTION 7 OF 39
The field weld symbol is a supplementary symbol indicated by a
Correct Answer: triangular flag.
Rationale: In welding symbology, a field weld is indicated by a supplementary symbol. This symbol, denoting a weld
made at the construction site rather than in a shop, is represented graphically as a triangular flag.
QUESTION 8 OF 39
The weld-all-around symbol is indicated by a ____at the junction of the reference
line and arrow
Correct Answer: circle
Rationale: In welding symbology, a circle placed at the intersection of the reference line and the arrow indicates a
weld that encircles the joint entirely. This symbol communicates that the weld must be applied continuously around the
entire circumference or perimeter of the joint, not just on one side or at specific points. Therefore, the circle denotes the
"weld-all-around" condition.
SENSE Module 3 Drawing & Welding Symbol Interpretation Questions & Answers 2026-2027 | Latest Review (Rationales) - Practice Questions Page 0
