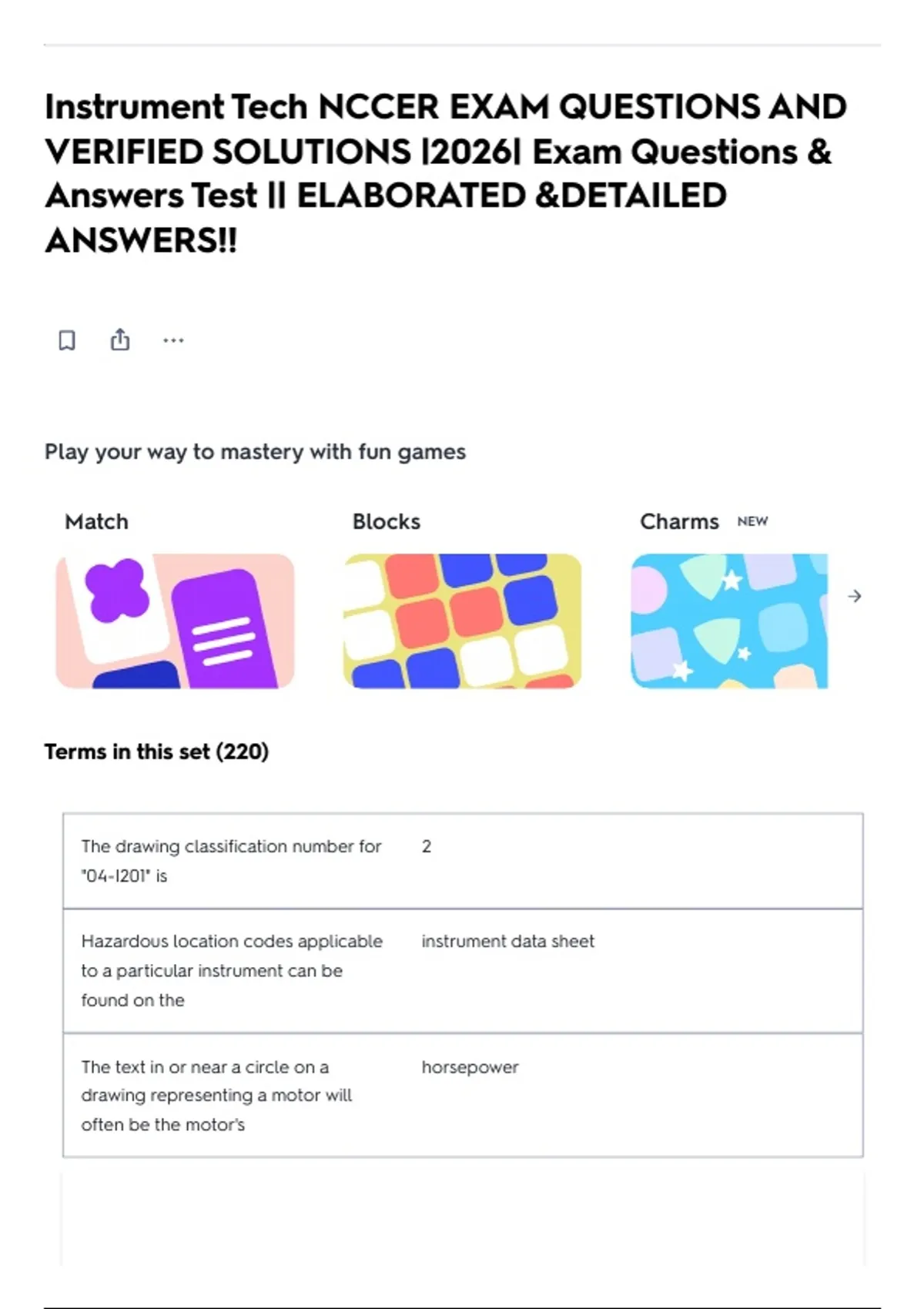

Instrument Tech NCCER EXAM QUESTIONS AND
VERIFIED SOLUTIONS |2026| Exam Questions &
Answers Test || ELABORATED &DETAILED
ANSWERS!!
Play your way to mastery with fun games
Match Blocks Charms NEW
Terms in this set (220)
The drawing classification number for 2
"04-I201" is
Hazardous location codes applicable instrument data sheet
to a particular instrument can be
found on the
The text in or near a circle on a horsepower
drawing representing a motor will
often be the motor's
, The symbol that travels up, cascades potentiometer
up & down, then drops down again
represents a
The symbol with 2 coils with iron-core transformer
opposing horizontal top & bottom
ends & 3 vertical lines down the
middle of the coils is a
The type of diagram that shows all of three-line diagram
the connections of the individual
conductors in an electrical system or
circuit is a
In electrical block diagrams, a single several wires
line may represent one wire or
Internal & external are the 2 wiring diagrams
classifications of
Which type of wiring diagram Lineless
generally uses a table to show the
starting & termination points of each
wire?
In addition to showing the physical raceway elevation
layout of raceways, raceway drawings
also show the
On cable tray drawings, a notation of bottom of tray
BOT would indicate
