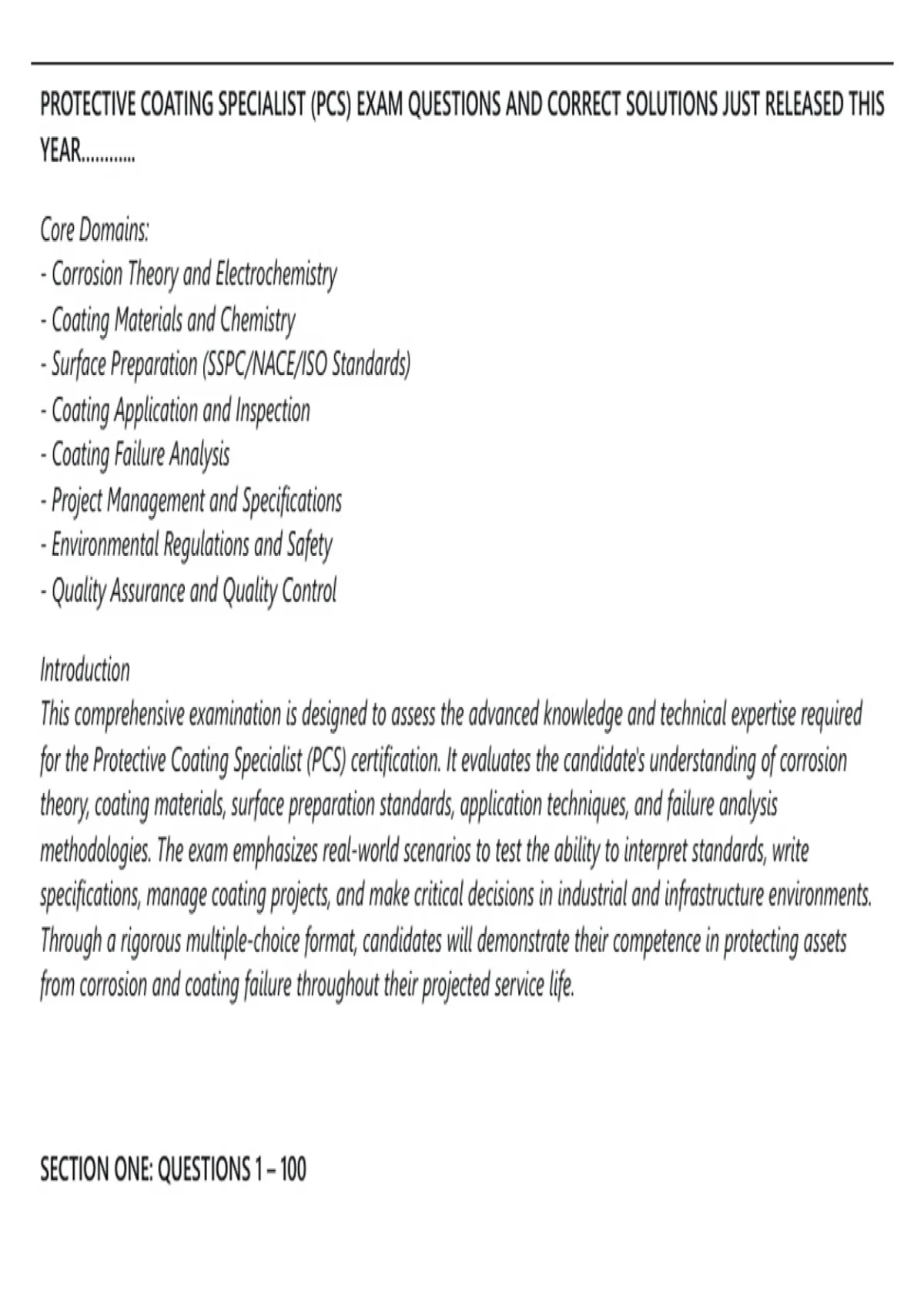

PROTECTIVE COATING SPECIALIST (PCS) EXAM QUESTIONS AND CORRECT SOLUTIONS JUST RELEASED THIS
YEAR………...
Core Domains:
- Corrosion Theory and Electrochemistry
- Coating Materials and Chemistry
- Surface Preparation (SSPC/NACE/ISO Standards)
- Coating Application and Inspection
- Coating Failure Analysis
- Project Management and Specifications
- Environmental Regulations and Safety
- Quality Assurance and Quality Control
Introduction
This comprehensive examination is designed to assess the advanced knowledge and technical expertise required
for the Protective Coating Specialist (PCS) certification. It evaluates the candidate's understanding of corrosion
theory, coating materials, surface preparation standards, application techniques, and failure analysis
methodologies. The exam emphasizes real-world scenarios to test the ability to interpret standards, write
specifications, manage coating projects, and make critical decisions in industrial and infrastructure environments.
Through a rigorous multiple-choice format, candidates will demonstrate their competence in protecting assets
from corrosion and coating failure throughout their projected service life.
SECTION ONE: QUESTIONS 1 – 100
,1. A coating system's primary function is to:
A. Enhance the aesthetic appearance of the substrate
B. Provide a decorative finish and increase surface friction
C. Protect a substrate from corrosion and environmental degradation
D. Reduce surface friction and improve hydrodynamic properties
🟢 C. Protect a substrate from corrosion and environmental degradation
🔴 RATIONALE: The core role of a protective coating is to isolate the substrate (e.g., steel, concrete) from
corrosive agents like oxygen, moisture, and chemicals, thereby preventing corrosion or degradation. While
aesthetics can be secondary, protection is the primary function.
2. Which of the following is NOT a required element of an electrochemical corrosion cell?
A. Anode
B. Cathode
C. Electrolyte
D. Insulator
🟢 D. Insulator
🔴 RATIONALE: A corrosion cell must have four elements: an anode, a cathode, a metallic path (electrical
connection), and an electrolyte. An insulator prevents the flow of electrical current and is not required for
corrosion to occur.
3. According to SSPC, which standard is equivalent to a "near-white metal blast"?
A. SSPC-SP 5
B. SSPC-SP 6
C. SSPC-SP 10
D. SSPC-SP 1
🟢 C. SSPC-SP 10
,🔴 RATIONALE: SSPC-SP 10 (NACE No. 2) defines a near-white metal blast where at least 95% of the surface is
free of visible residues, with only slight stains remaining. SP 5 is white metal (100% clean), SP 6 is commercial
blast, and SP 1 is solvent cleaning.
4. What is the most common binder used in inorganic zinc-rich primers?
A. Epoxy
B. Polyurethane
C. Alkyd
D. Ethyl silicate
🟢 D. Ethyl silicate
🔴 RATIONALE: Inorganic zinc-rich primers use ethyl silicate or water-based silicates as binders. They provide
excellent galvanic protection because zinc particles are in electrical contact with the steel. Epoxy zinc-rich
primers are organic, not inorganic.
5. The term "flash rust" refers to:
A. Rust that forms during the curing of a coating
B. Rapid oxidation that occurs on a cleaned steel surface after blasting, before coating application
C. A type of coating failure caused by UV exposure
D. The reaction between two incompatible primers
🟢 B. Rapid oxidation that occurs on a cleaned steel surface after blasting, before coating application
🔴 RATIONALE: Flash rust happens when a freshly blasted steel surface (active iron) is exposed to humid air or
moisture. It can compromise adhesion if not removed or if the coating is not designed to tolerate it.
6. According to ISO 8501-1, a rust grade "A" surface means:
A. Steel surface completely covered with rust
B. Steel surface with slight rust but mill scale intact
C. Steel surface where mill scale has started to flake
, D. Steel surface where mill scale has rusted away with visible pitting
🟢 B. Steel surface with slight rust but mill scale intact
🔴 RATIONALE: ISO 8501-1 defines Rust Grade A as a steel surface covered largely with adherent mill scale but
little if any rust. This is typical of new, unweathered steel. Grades progress to D (pitted rust).
7. What is the "wet film thickness" (WFT) of a coating measured immediately after application used to
calculate?
A. Adhesion strength
B. Theoretical final dry film thickness (DFT)
C. Pot life of the coating
D. Curing time of the coating
🟢 B. Theoretical final dry film thickness (DFT)
🔴 RATIONALE: WFT is used with the known volume solids (% volume) to estimate DFT: DFT = WFT × (%
volume solids / 100). This allows applicators to adjust technique in real time before the coating dries.
8. A Project Specification calls for a 3-coat system over carbon steel in a C5-I environment (ISO 12944). The
primer chosen is Inorganic Zinc Silicate. What is the most critical parameter to verify regarding the
intermediate epoxy coat to prevent osmotic blistering?
A. The epoxy's glass transition temperature (Tg)
B. The maximum recoat time of the zinc silicate
C. The miscibility of the epoxy with the zinc's post-rinse solution
D. The minimum dry film thickness of the epoxy
🟢 B. The maximum recoat time of the zinc silicate
🔴 RATIONALE: Inorganic zinc silicates are porous. If the topcoat (epoxy) is applied before the zinc has fully
cured or if the recoat window is missed, outgassing or lack of adhesion occurs. The PCS must manage the
"maximum recoat time" to ensure the zinc is clean and the epoxy wets the surface properly.
