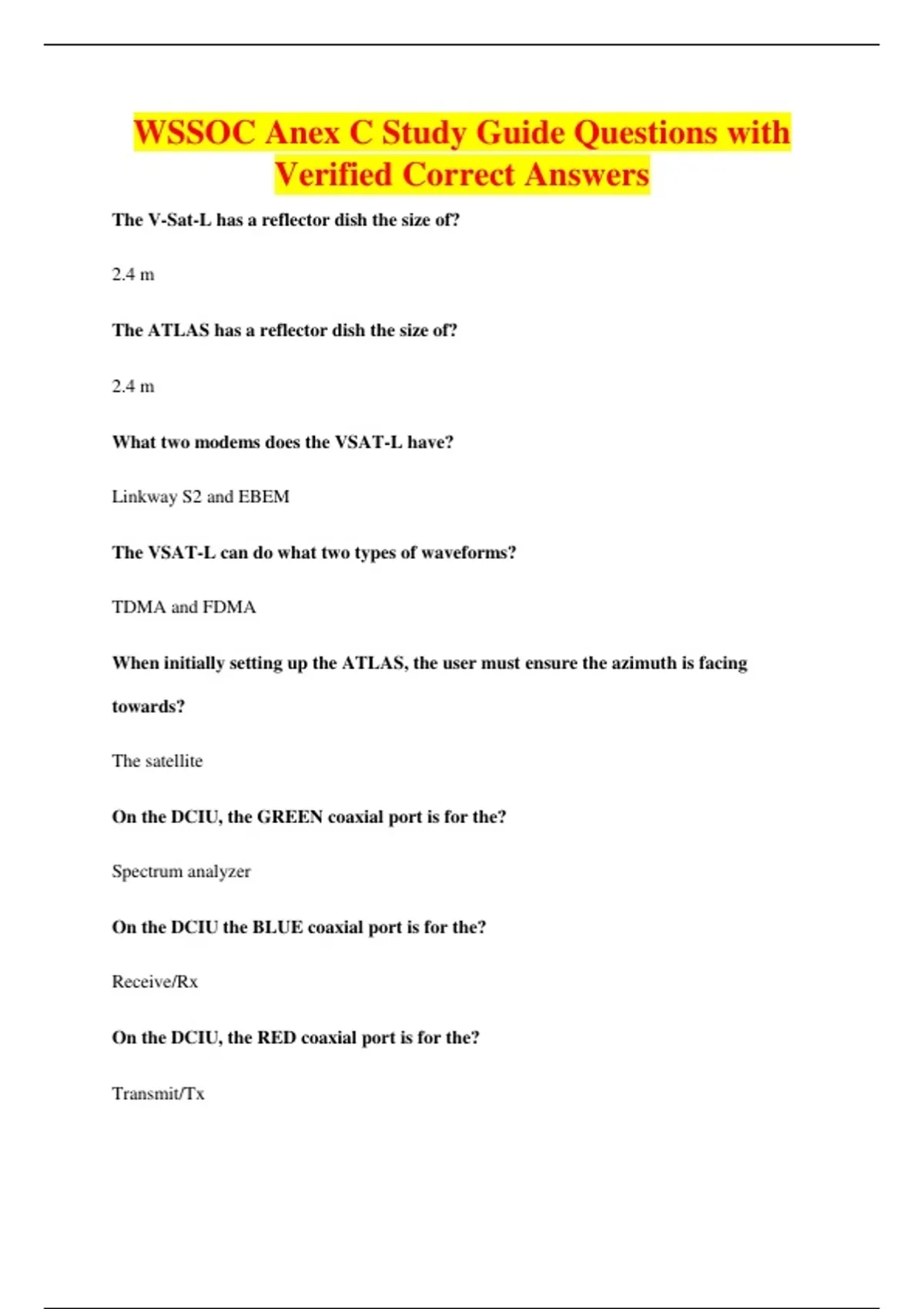

WSSOC Anex C Study Guide Questions with Verified Correct Answers

WSSOC Anex C Study Guide Questions with
Verified Correct Answers
The V-Sat-L has a reflector dish the size of?

2.4 m

The ATLAS has a reflector dish the size of?

2.4 m

What two modems does the VSAT-L have?

Linkway S2 and EBEM

The VSAT-L can do what two types of waveforms?

TDMA and FDMA

When initially setting up the ATLAS, the user must ensure the azimuth is facing

towards?

The satellite

On the DCIU, the GREEN coaxial port is for the?

Spectrum analyzer

On the DCIU the BLUE coaxial port is for the?

Receive/Rx

On the DCIU, the RED coaxial port is for the?

Transmit/Tx

, The ATLAS is strictly a Satcom antenna terminal due to the fact the ATLAS does not

come supplied with a?

Modem

The operator must ensure the VSAT-L or ATLAS is clear of _____ and _____

obstructions.

Natural and manmade

The power requirements for the VSAT-L?

120 or 240 VAC

The _____ controls the antenna movements.

ACU

The RMR on the VSAT-L provides these FIVE key features.

10 MHz reference, combines TDMA/FDMA, combines FDMA , KU band select, powers

TLNB

What does PDU stand for on the VSAT-L?

Power Drive Unit

What does the PDU do on the VSAT-L?

Drives power to the ACU motor

What does the High Power Amplifier do?

Amplifies power and converts IF to RF

What does the Tunable/Low Noise Blocker do?
