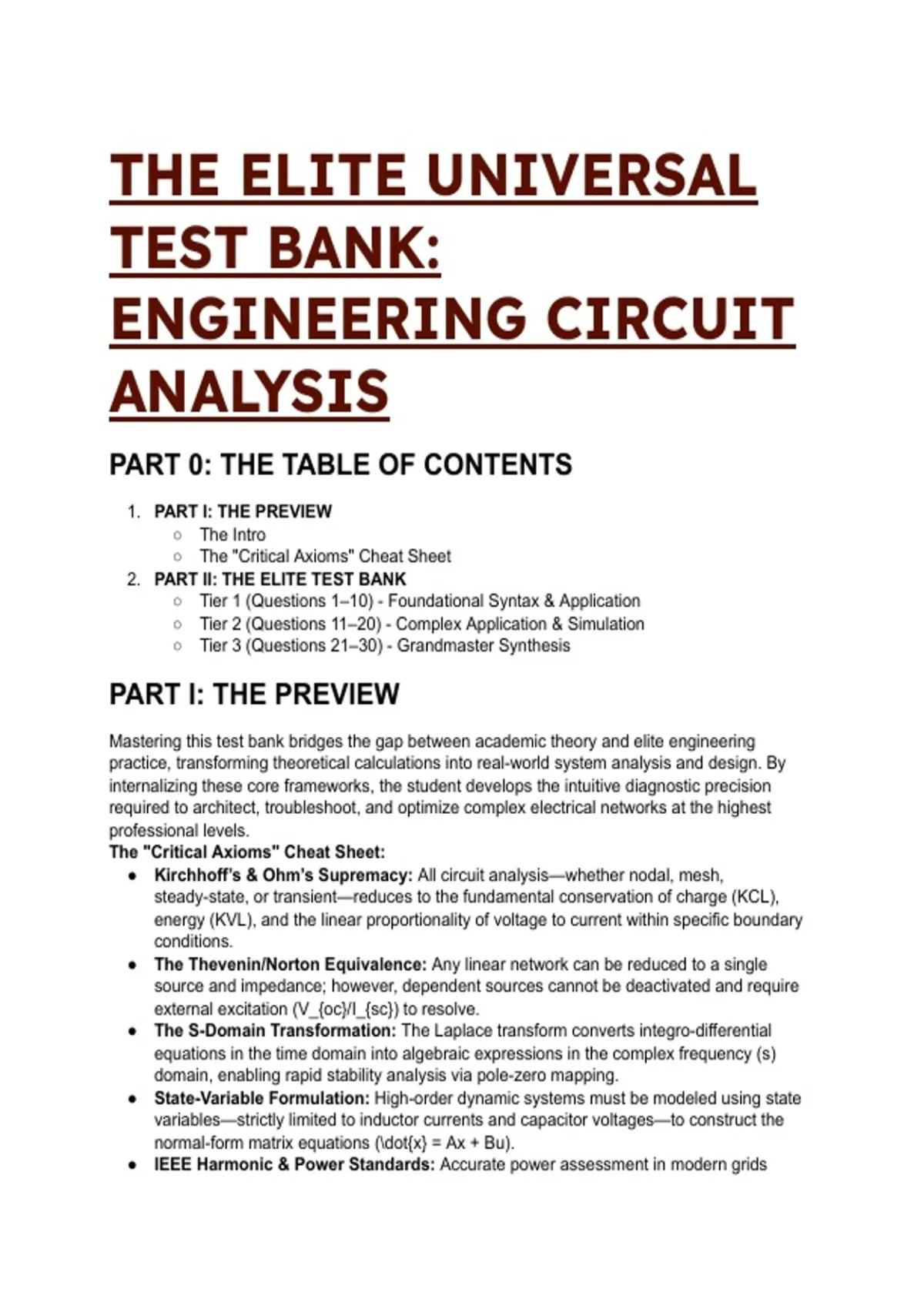

THE ELITE UNIVERSAL
TEST BANK:
ENGINEERING CIRCUIT
ANALYSIS
PART 0: THE TABLE OF CONTENTS
1. PART I: THE PREVIEW
○ The Intro
○ The "Critical Axioms" Cheat Sheet
2. PART II: THE ELITE TEST BANK
○ Tier 1 (Questions 1–10) - Foundational Syntax & Application
○ Tier 2 (Questions 11–20) - Complex Application & Simulation
○ Tier 3 (Questions 21–30) - Grandmaster Synthesis
PART I: THE PREVIEW
Mastering this test bank bridges the gap between academic theory and elite engineering
practice, transforming theoretical calculations into real-world system analysis and design. By
internalizing these core frameworks, the student develops the intuitive diagnostic precision
required to architect, troubleshoot, and optimize complex electrical networks at the highest
professional levels.
The "Critical Axioms" Cheat Sheet:
● Kirchhoff’s & Ohm’s Supremacy: All circuit analysis—whether nodal, mesh,
steady-state, or transient—reduces to the fundamental conservation of charge (KCL),
energy (KVL), and the linear proportionality of voltage to current within specific boundary
conditions.
● The Thevenin/Norton Equivalence: Any linear network can be reduced to a single
source and impedance; however, dependent sources cannot be deactivated and require
external excitation (V_{oc}/I_{sc}) to resolve.
● The S-Domain Transformation: The Laplace transform converts integro-differential
equations in the time domain into algebraic expressions in the complex frequency (s)
domain, enabling rapid stability analysis via pole-zero mapping.
● State-Variable Formulation: High-order dynamic systems must be modeled using state
variables—strictly limited to inductor currents and capacitor voltages—to construct the
normal-form matrix equations (\dot{x} = Ax + Bu).
● IEEE Harmonic & Power Standards: Accurate power assessment in modern grids
, requires segregating fundamental components from harmonic distortion (IEEE 1459) and
adhering strictly to demand distortion limits (IEEE 519).
PART II: THE ELITE TEST BANK
Tier 1 - Foundational Syntax & Application
Q1: A localized DC circuit element has a voltage v(t) = -12\text{ V} and a current i(t) = 3\text{ A}
entering the positive voltage terminal. Based on the principles of the Passive Sign Convention,
which conclusion regarding the energy transfer of this element is the MOST ACCURATE? A)
The element is absorbing 36\text{ W} of power and acting as a passive load. B) The element is
supplying 36\text{ W} of power to the rest of the electrical network. C) The element is supplying
4\text{ W} of power due to the inverse resistance calculation. D) The power status cannot be
determined without knowing if the component is an active source or a passive resistor.
● Answer: B (The element is supplying 36\text{ W} of power to the rest of the electrical
network.)
● Distractor Analysis:
○ A is incorrect: While current entering the positive terminal satisfies the setup for the
passive sign convention formula P = vi, the calculated product is -36\text{ W}. A
negative absorbed power mathematically proves the element is supplying power.
○ C is incorrect: This incorrectly attempts to calculate power using an erroneous P =
v/i relationship, confusing basic resistance ratios with energy transfer equations.
○ D is incorrect: The passive sign convention is universally applicable to all
two-terminal elements and requires no prior knowledge of the component's internal
physical construction.
The Mentor's Analysis: The passive sign convention dictates that if current enters the positive
terminal, power absorbed is defined as P = vi. A negative mathematical result unequivocally
identifies the element as an active supplier of energy. By strictly trusting the algebraic sign, the
analyst bypasses the common trap of visually misidentifying sources and loads in complex
networks. Professional/Academic Intuition: Always define power mathematically as
absorbed (P = vi); a negative result absolutely guarantees the element is delivering
energy.
Q2: When applying Nodal Analysis to a planar network containing an ideal independent voltage
source connected directly between two non-reference nodes, which action is the IMMEDIATELY
required first step? A) Convert the voltage source to an equivalent current source using Norton's
theorem to eliminate the non-reference voltage constraint. B) Assign a ground reference to one
of the nodes connected to the voltage source to force its nodal value to zero. C) Form a
supernode encompassing the voltage source and its two connected nodes, applying Kirchhoff's
Current Law (KCL) to the entire boundary. D) Write a standard KCL equation for each node
individually, treating the unknown current through the voltage source as zero.
● Answer: C (Form a supernode encompassing the voltage source and its two connected
nodes, applying Kirchhoff's Current Law (KCL) to the entire boundary.)
● Distractor Analysis:
○ A is incorrect: Source transformation requires a series resistor. An ideal voltage
source lacking a series resistor cannot be converted into a Norton equivalent circuit.
○ B is incorrect: While assigning ground is a necessary preliminary step, arbitrarily
moving a previously defined ground solely to accommodate one voltage source
, forces a total redefinition of the entire network's equations.
○ D is incorrect: The current through an ideal voltage source is strictly dictated by the
surrounding circuit; treating it as zero violently violates KCL.
The Mentor's Analysis: An ideal voltage source between non-reference nodes provides a rigid
voltage constraint (v_2 - v_1 = V_s) but prevents the direct formulation of isolated KCL
equations because its internal current is an unknown variable. By utilizing a Supernode, the
engineer bypasses the novice error of attempting to define an undefined source current.
Professional/Academic Intuition: A voltage source between non-reference nodes
mandates a Supernode; always pair the boundary KCL equation with the source's
internal KVL constraint equation.
Q3: In evaluating a linear circuit to find its Thevenin equivalent resistance (R_{th}) across
terminals A-B, the network is observed to contain both independent sources and a
current-controlled dependent voltage source. Based on the principles of Thevenin's Theorem,
which methodology is the MOST APPROPRIATE for calculating R_{th}? A) Deactivate all
independent and dependent sources, then calculate the equivalent resistance looking into
terminals A-B using simple series-parallel reduction. B) Deactivate only the independent
sources, apply an external test voltage source (V_{test}) at terminals A-B, calculate the resulting
input current (I_{test}), and find R_{th} = V_{test}/I_{test}. C) Leave all sources active, find the
open-circuit voltage (V_{oc}), and divide it by the sum of the internal circuit's passive
resistances. D) Deactivate only the dependent sources, as they do not generate their own
independent power, and calculate the resistance of the remaining passive network.
● Answer: B (Deactivate only the independent sources, apply an external test voltage
source (V_{test}) at terminals A-B, calculate the resulting input current (I_{test}), and find
R_{th} = V_{test}/I_{test}.)
● Distractor Analysis:
○ A is incorrect: Dependent sources actively respond to circuit variables and
fundamentally synthesize impedance; they must never be deactivated during
resistance calculations.
○ C is incorrect: This represents a catastrophic misunderstanding of the R_{th} =
V_{oc}/I_{sc} method; dividing open-circuit voltage by internal scalar resistance
yields no physical meaning.
○ D is incorrect: A legacy novice misconception. Dependent sources represent active
feedback mechanisms (such as transistors or op-amps) and must remain strictly
active.
The Mentor's Analysis: Dependent sources inextricably link different topological parts of a
circuit, creating active impedances that cannot be calculated via physical series-parallel
reduction. By utilizing an external test source excitation, the analyst bypasses the trap of
miscalculating equivalent resistance in active networks. Professional/Academic Intuition:
Never deactivate a dependent source; when present, R_{th} must be found via
V_{oc}/I_{sc} or by applying an external test source with all independent sources killed.
Q4: An operational amplifier in a non-inverting configuration is designed for a target closed-loop
gain of 100\text{ V/V}. The physical op-amp possesses a finite DC open-loop gain (A_{ol}) of
10^4\text{ V/V}. Based on the principles of Feedback Theory, what is the MOST ACCURATE
characterization of the actual closed-loop DC gain? A) Exactly 100\text{ V/V}, as the external
resistor network exclusively dictates the final gain in a non-inverting topology. B) Marginally less
than 100\text{ V/V}, due to the error introduced by the finite open-loop gain failing to drive the
differential input voltage perfectly to zero. C) Marginally greater than 100\text{ V/V}, as the
internal open-loop gain adds additively to the closed-loop feedback factor. D) 10^4\text{ V/V},
