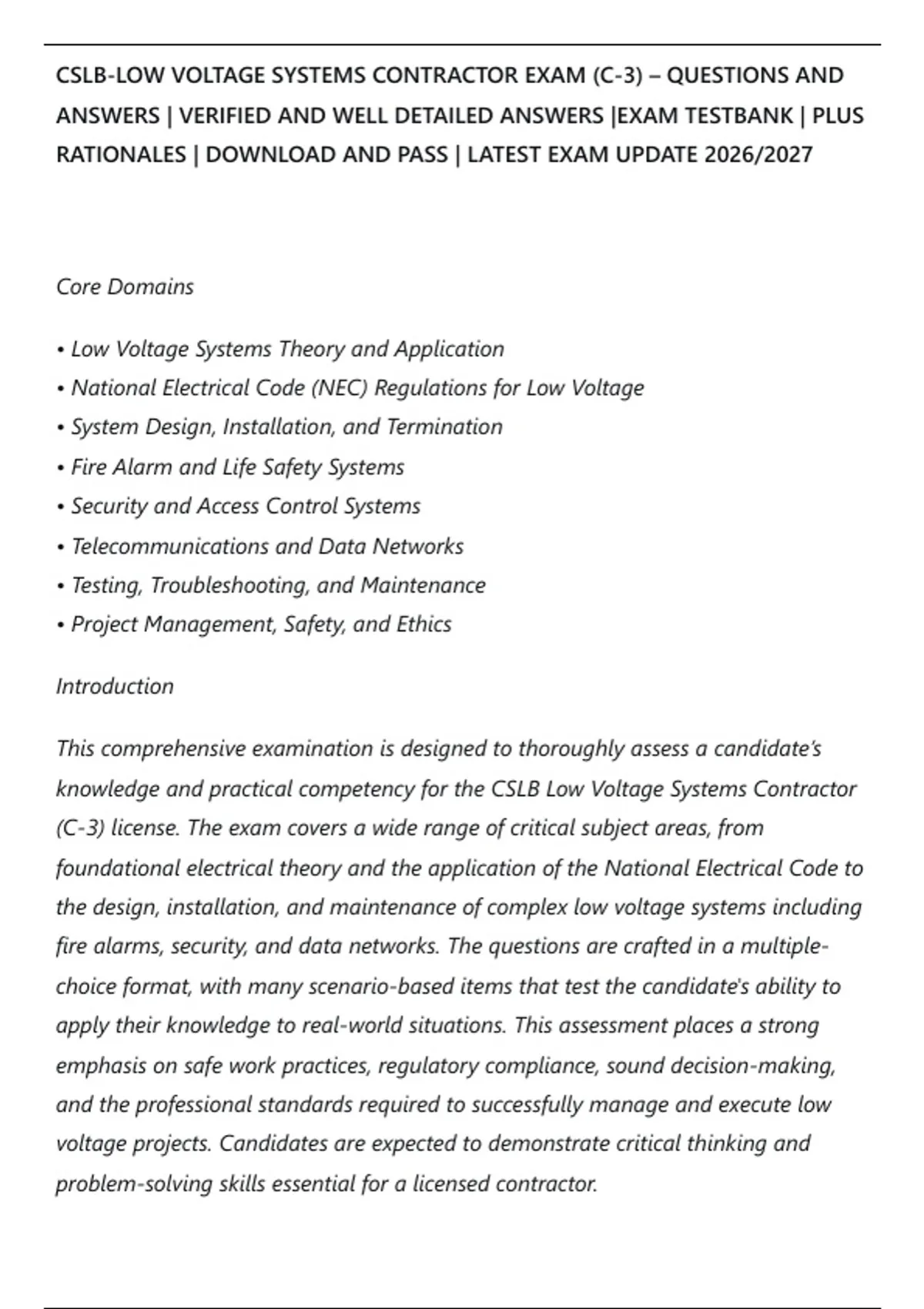

CSLB-LOW VOLTAGE SYSTEMS CONTRACTOR EXAM (C-3) – QUESTIONS AND
ANSWERS | VERIFIED AND WELL DETAILED ANSWERS |EXAM TESTBANK | PLUS
RATIONALES | DOWNLOAD AND PASS | LATEST EXAM UPDATE 2026/2027
Core Domains
• Low Voltage Systems Theory and Application
• National Electrical Code (NEC) Regulations for Low Voltage
• System Design, Installation, and Termination
• Fire Alarm and Life Safety Systems
• Security and Access Control Systems
• Telecommunications and Data Networks
• Testing, Troubleshooting, and Maintenance
• Project Management, Safety, and Ethics
Introduction
This comprehensive examination is designed to thoroughly assess a candidate’s
knowledge and practical competency for the CSLB Low Voltage Systems Contractor
(C-3) license. The exam covers a wide range of critical subject areas, from
foundational electrical theory and the application of the National Electrical Code to
the design, installation, and maintenance of complex low voltage systems including
fire alarms, security, and data networks. The questions are crafted in a multiple-
choice format, with many scenario-based items that test the candidate's ability to
apply their knowledge to real-world situations. This assessment places a strong
emphasis on safe work practices, regulatory compliance, sound decision-making,
and the professional standards required to successfully manage and execute low
voltage projects. Candidates are expected to demonstrate critical thinking and
problem-solving skills essential for a licensed contractor.
,SECTION ONE: QUESTIONS 1 – 50
1. According to the National Electrical Code (NEC), what is the minimum
bending radius for a non-shielded, solid dielectric, single-conductor cable rated
at 5 kV?
A. 8 times the cable diameter
B. 12 times the cable diameter
C. 6 times the cable diameter
D. 10 times the cable diameter
🟢 Correct Answer: A. 8 times the cable diameter
🔴 Explanation: NEC Article 310.60 outlines the minimum bending radii for
various cable types. For a non-shielded, solid dielectric, single-conductor cable
rated at 5 kV, the minimum bending radius is 8 times the cable diameter.
2. When installing a CAT 6 data cable in a plenum-rated space, what is the
correct cable jacket designation?
A. CM
B. CMR
C. CMP
D. CMG
🟢 Correct Answer: C. CMP
🔴 Explanation: CMP (Communications Plenum) cable is required for installation
in plenum spaces, which are used for environmental air handling. This jacket is
specifically designed to limit flame spread and smoke production.
,3. A contractor is installing a new fire alarm control panel (FACP). The manual
pull stations are to be located at a specific height per NFPA 72. What is the
maximum required height for the operable part of the pull station?
A. 42 inches
B. 48 inches
C. 54 inches
D. 60 inches
🟢 Correct Answer: C. 54 inches
🔴 Explanation: NFPA 72, Section 17.14.5, specifies that manual pull stations must
be located so that the operable part is not more than 54 inches (1.37 m) above
the floor, unless otherwise approved by the authority having jurisdiction.
4. What is the fundamental purpose of a ground fault circuit interrupter (GFCI)
in a low voltage system?
A. To protect equipment from voltage spikes
B. To protect personnel from electrical shock
C. To prevent circuit overloads
D. To ensure proper system grounding
🟢 Correct Answer: B. To protect personnel from electrical shock
🔴 Explanation: A GFCI is designed to protect people from electric shock by
monitoring the current balance between the hot and neutral conductors. If it
detects a leakage to ground, it rapidly interrupts the circuit.
, 5. In a structured cabling system, what does the term "horizontal cabling" refer
to?
A. Cabling that connects buildings on a campus
B. Cabling that connects the telecommunications room to the backbone
C. Cabling that connects the telecommunications outlet to the horizontal cross-
connect
D. Cabling that connects the main cross-connect to the intermediate cross-
connect
🟢 Correct Answer: C. Cabling that connects the telecommunications outlet to
the horizontal cross-connect
🔴 Explanation: The horizontal cabling subsystem is defined as the portion of the
cabling system that extends from the telecommunications outlet on the user's
floor to the horizontal cross-connect in the telecommunications room.
6. A building owner asks for a security system that can distinguish between a
person and a small animal to reduce false alarms. Which type of motion
detector is most suitable for this application?
A. Dual-technology detector
B. Passive infrared (PIR) detector
C. Microwave detector
D. Ultrasonic detector
🟢 Correct Answer: A. Dual-technology detector
🔴 Explanation: A dual-technology detector combines two different sensing
technologies, typically PIR and microwave. Both technologies must be triggered
simultaneously to generate an alarm, significantly reducing false alarms from
animals or environmental factors.
