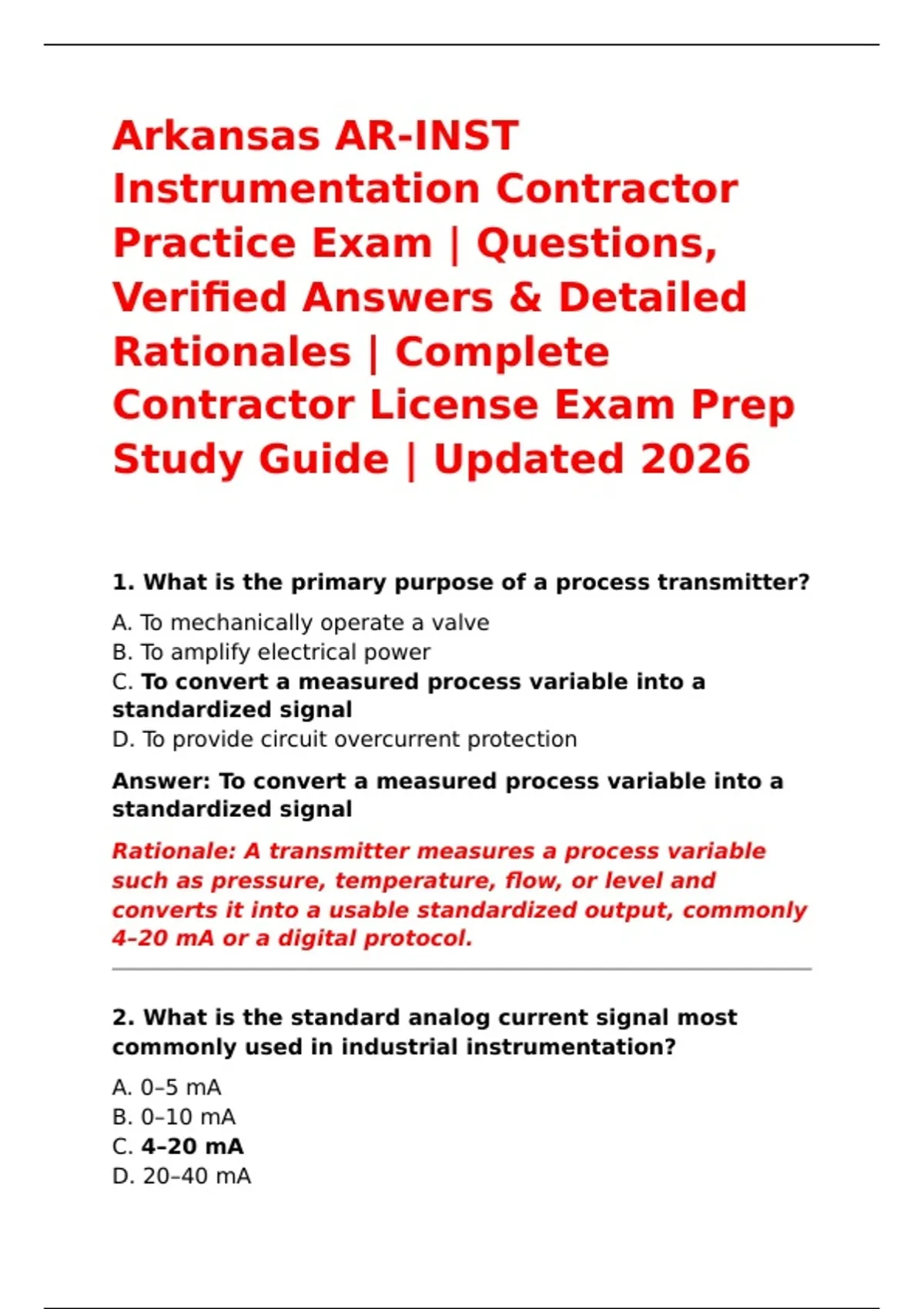

Arkansas AR-INST
Instrumentation Contractor
Practice Exam | Questions,
Verified Answers & Detailed
Rationales | Complete
Contractor License Exam Prep
Study Guide | Updated 2026
1. What is the primary purpose of a process transmitter?
A. To mechanically operate a valve
B. To amplify electrical power
C. To convert a measured process variable into a
standardized signal
D. To provide circuit overcurrent protection
Answer: To convert a measured process variable into a
standardized signal
Rationale: A transmitter measures a process variable
such as pressure, temperature, flow, or level and
converts it into a usable standardized output, commonly
4–20 mA or a digital protocol.
2. What is the standard analog current signal most
commonly used in industrial instrumentation?
A. 0–5 mA
B. 0–10 mA
C. 4–20 mA
D. 20–40 mA
,Answer: 4–20 mA
Rationale: The 4–20 mA signal is widely used because it
provides a live zero, allowing 4 mA to represent zero
measurement while 0 mA can indicate an open circuit or
loss of power.
3. In a 4–20 mA loop, what percentage of span is
represented by 12 mA?
A. 25%
B. 50%
C. 60%
D. 75%
Answer: 50%
Rationale: The usable span is 16 mA. Twelve mA is 8 mA
above the 4 mA zero: 8 ÷ 16 = 50%.
4. A pressure transmitter is ranged from 0 to 100 psi.
What pressure should be represented by a 16 mA
output?
A. 50 psi
B. 75 psi
C. 80 psi
D. 90 psi
Answer: 75 psi
Rationale: Sixteen mA is 12 mA above the 4 mA zero.
Twelve divided by the 16 mA span equals 75%, so the
output represents 75 psi.
5. What does a thermocouple generate?
A. Resistance only
B. Hydraulic pressure
,C. A small voltage related to temperature difference
D. A constant 24 VDC signal
Answer: A small voltage related to temperature
difference
Rationale: A thermocouple uses two dissimilar metals
and produces a thermoelectric voltage related to the
temperature difference between the measuring and
reference junctions.
6. Which device changes resistance as temperature
changes?
A. Thermocouple
B. RTD
C. Solenoid
D. Diode
Answer: RTD
Rationale: An RTD, commonly made from platinum,
changes electrical resistance predictably with
temperature.
7. What is a common industrial RTD element?
A. 10 Ω copper
B. 100 Ω platinum
C. 1 MΩ carbon
D. 4 Ω aluminum
Answer: 100 Ω platinum
Rationale: A Pt100 RTD has a nominal resistance of 100
ohms at 0°C and is widely used for industrial
temperature measurement.
8. What is the main purpose of a thermowell?
, A. To increase process pressure
B. To convert current into voltage
C. To protect a temperature sensor from the process
while allowing temperature measurement
D. To provide circuit grounding
Answer: To protect a temperature sensor from the
process while allowing temperature measurement
Rationale: A thermowell provides a protective barrier
between the sensing element and the process and
permits sensor removal without necessarily opening the
process connection.
9. What type of pressure measurement measures
pressure relative to atmospheric pressure?
A. Absolute pressure
B. Differential pressure
C. Gauge pressure
D. Vacuum pressure only
Answer: Gauge pressure
Rationale: Gauge pressure is referenced to local
atmospheric pressure, whereas absolute pressure is
referenced to a perfect vacuum.
10. Differential pressure is commonly used to measure
which process variable?
A. Electrical resistance
B. Flow
C. Ambient humidity only
D. Motor speed only
Answer: Flow
